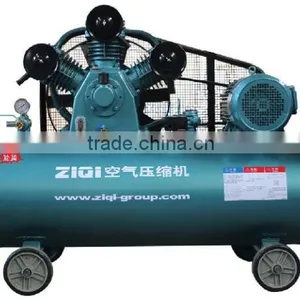

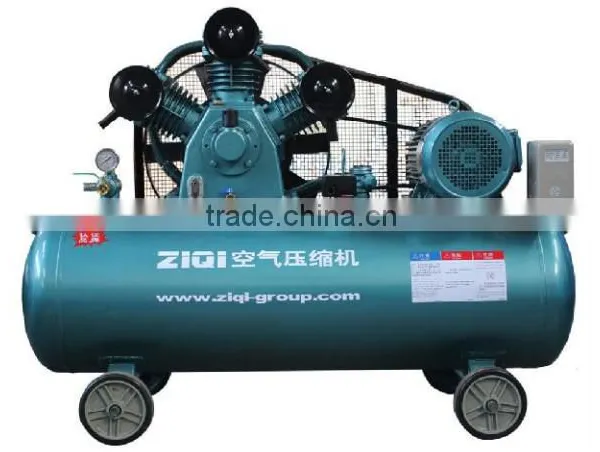

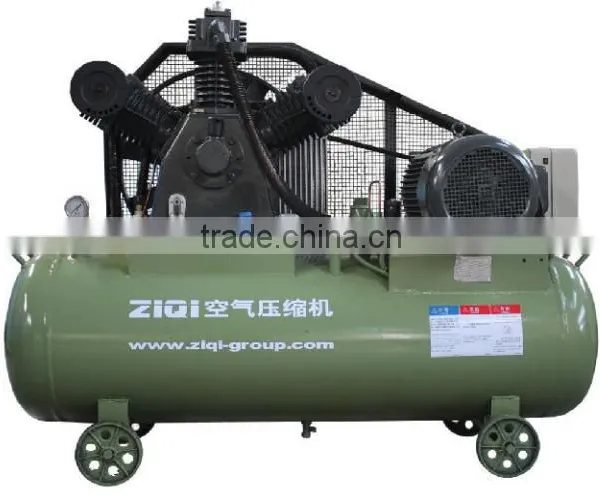

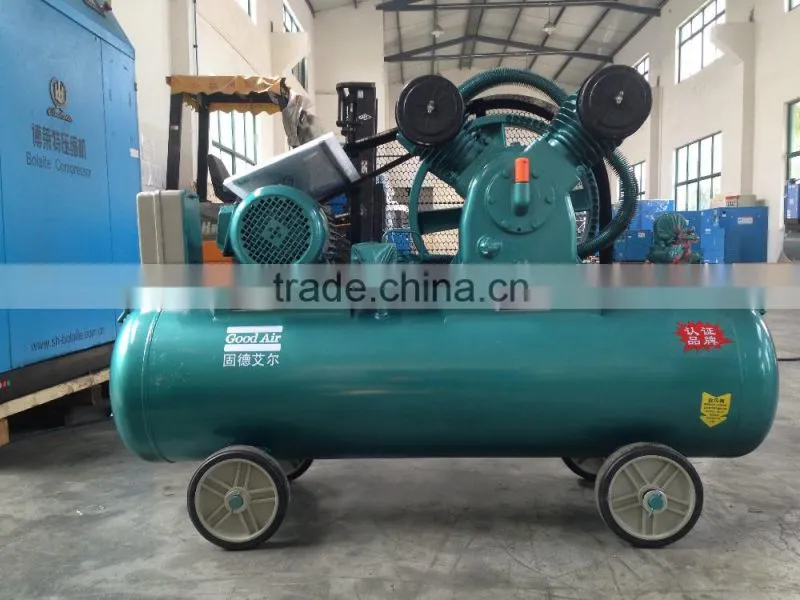

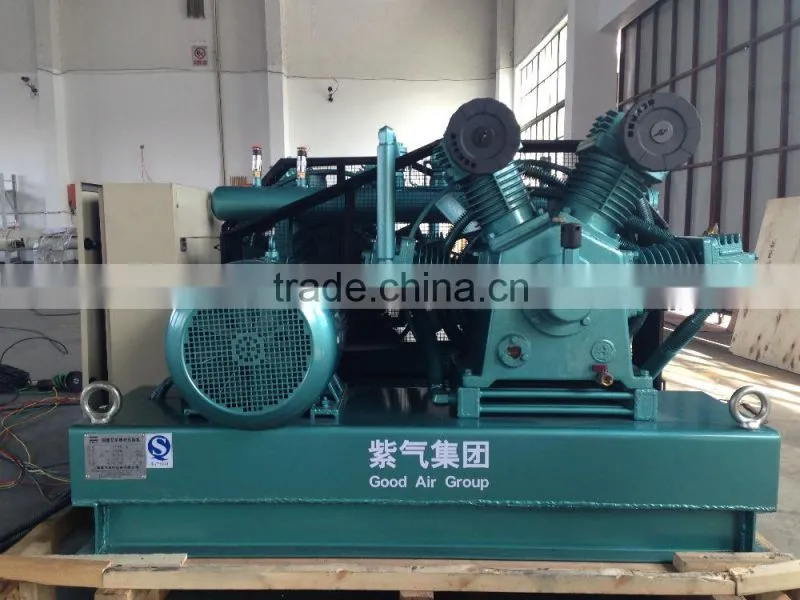

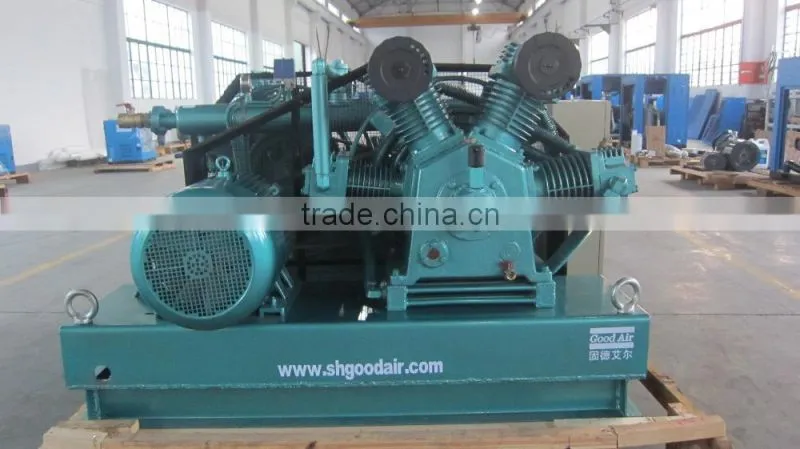

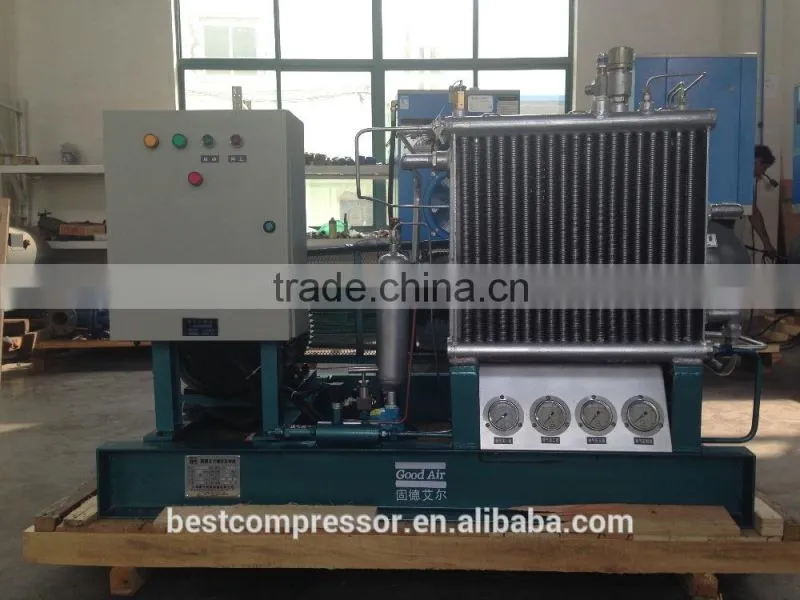

piston type air compressor
1.Strongly power-driven and big air end with design,the air compressor owns bigger and heavier main parts than other products in the same trade with better selection and sufficient using of materials especially with main fittings.In addition,it is more suitable to be applied in the continuous operation under load for long working time with higher reliability and longer lifespan.
2.Special designed is made in heat in heat emission and air flow,which leads to low air-output temperature andlow possibility of carbon deposit.
3.Composite ring valve is adopted in design,with the valve plate made of stainless steel from Sweden and spring of valve block made of special spring steel wire from Japan with no bending motion in operation,the valve processes excellent property and ideal lifespan index.
4.The piston ring imported from Japan is introduced in designing pistol ring,which is durable and sealable.
5.Crankshaft undergoes high-frequency hardening,which enables it especially abrasion-proof.
6.Some relevant working units are received precision balance,which makes it more stable with lower noise.
7.Speical oil separation construction is built inside the frontend jacket,so no oil vents from the breather valve,which ensures low oil consumption and cleanness of machine body.
8.The core of air filter is made of imported filter paper,which acts well in filtering and absorbing noise.
9.With rational design in the flaring angle of copper socket pipe and protecting jacket,it avoids cracking and air leaking.
10.Pressure switch,contactor unit and thermorelay are imported with famous brand is "Schneider" to ensure the reliablity in control and protection.
| Model | Power | Air displacement(m3) | Exhaust pressure(Mpa) | Speed(r/min) | Air tank(m3) | Cylinder quantity | Dimension | Weight(kg) |
| V-0.14/8 | 1.5-2 | 0.14 | 0.8 | 1150 | 0.056 | 51*2 | 960*410*710 | 65 |
| V-0.17/8 | 2.2-2 | 0.17 | 0.8 | 1100 | 0.07 | 65*2 | 1050*420*760 | 68 |
| W-0.25/8 | 3-2 | 0.25 | 0.8 | 1050 | 0.1 | 65*3 | 1050*420*760 | 74 |
| V-0.4/12 | 4-2 | 0.4 | 1.2 | 850 | 0.125 | 95*2 | 1340*490*920 | 116 |
| V-0.67/8 | 5.5-2 | 0.67 | 0.8 | 990 | 0.17 | 95*3 | 1400*500*1040 | 177 |
| W-1/8 | 7.5-2 | 1.0 | 0.8 | 900 | 0.18 | 90*3 | 1420*530*1000 | 250 |
| W-1.6/10 | 11-4 | 1.6 | 1.0 | 800 | 0.3 | 125*2+100 | 1700*700*1200 | 460 |
| W-2/8 | 15-4 | 2.0 | 0.8 | 830 | 0.3 | 125*3 | 1700*720*1250 | 538 |
| W-2.4/8 | 18.5-4 | 2.4 | 0.8 | 780 | 0.3 | 125*3 | 1700*900*1350 | 680 |
| W-3.2/7 | 18.5-2 | 3.2 | 0.7 | 830 | 0.36 | 125*3 | 1700*900*1350 | 650 |
Our service of the machine
1) Reply you inquiry in 24 working hours
2) Experienced staffs answer all your questionsin fluent English
3) Customized design is available.OEM&ODM are welcomed.
4) Exclusive and uniquesolution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discountand protection of sales area provided to our distributor and big regular customers.
