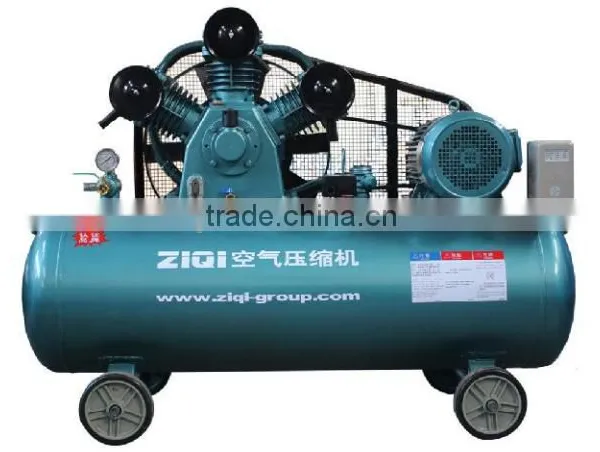

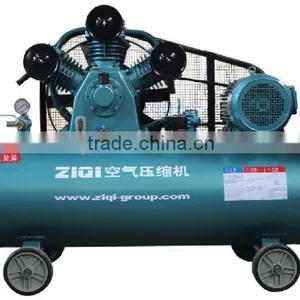

Direct Belt Mobile Piston Air Compressor Best Seller
- Reliability poptimization design is adopted to increase the reliable operation
- Long stoke with low running speed stucture is as to guarantee the smooth operation and low noise
- T-type gap of piston ring was applied to reduce air leaking through this gap and decrease oil consumption
- The oil level sight-glass is provided with large visual angle and high grade of transparency
- The material of discharge valve and spring imported from Sweden will improve the performance efficiency and prolong the service life
- The removable cooling fan with large diameter is adopted to reduce the vibration and decrease the discharge temperature
- 4-pole motor is adopted so as to achieve a more smooth running and long service life
- High-capacity air tank is used to reduce the star-up frequency and long service life of the air compressor
| Model | Power | Air displacement(m3) | Exhaust pressure(Mpa) | Speed(r/min) | Air tank(m3) | Cylinder quantity | Dimension | Weight(kg) |
| V-0.14/8 | 1.5-2 | 0.14 | 0.8 | 1150 | 0.056 | 51*2 | 960*410*710 | 65 |
| V-0.17/8 | 2.2-2 | 0.17 | 0.8 | 1100 | 0.07 | 65*2 | 1050*420*760 | 68 |
| W-0.25/8 | 3-2 | 0.25 | 0.8 | 1050 | 0.1 | 65*3 | 1050*420*760 | 74 |
| V-0.4/12 | 4-2 | 0.4 | 1.2 | 850 | 0.125 | 95*2 | 1340*490*920 | 116 |
| V-0.67/8 | 5.5-2 | 0.67 | 0.8 | 990 | 0.17 | 95*3 | 1400*500*1040 | 177 |
| W-1/8 | 7.5-2 | 1.0 | 0.8 | 900 | 0.18 | 90*3 | 1420*530*1000 | 250 |
| W-1.6/10 | 11-4 | 1.6 | 1.0 | 800 | 0.3 | 125*2+100 | 1700*700*1200 | 460 |
| W-2/8 | 15-4 | 2.0 | 0.8 | 830 | 0.3 | 125*3 | 1700*720*1250 | 538 |
| W-2.4/8 | 18.5-4 | 2.4 | 0.8 | 780 | 0.3 | 125*3 | 1700*900*1350 | 680 |
| W-3.2/7 | 18.5-2 | 3.2 | 0.7 | 830 | 0.36 | 125*3 | 1700*900*1350 | 650 |
Whether pre-sale, in sale, after-sale, as long as the user needs the help of equipment and technical advice, our company will provide the technical information within 24 hours for free, debugging boot on spot. Having finished the debug, our engineers are responsible for the operation training for the user's staff, receiving user equipment faiure notification, Shanghai corporation will send service engineers arriving at the spot within 24hours. Company established 9 marketing services network and more than 50 distributors all over the country, and our service enjoys myriad of praises from users.
If you chose us, you are bound to have the most advance screw technology and the best service of the world.
ziqi provide high quality produces and services for generall industrials , manufacture industrials electricity, architecture, mining, energy, ect, our service network composed of distributors and agencies assigned by local subsidiaries , they are providing perfect services for ZIQI's customers from all over the world.
ZIQI Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
If you have any questions, please feel free to contact me. Thanks
Wooden package for sea shippment
