Home > Industrial Equipment & Components > Compressor > Compressor Unit > Portable Piston Air Compressor

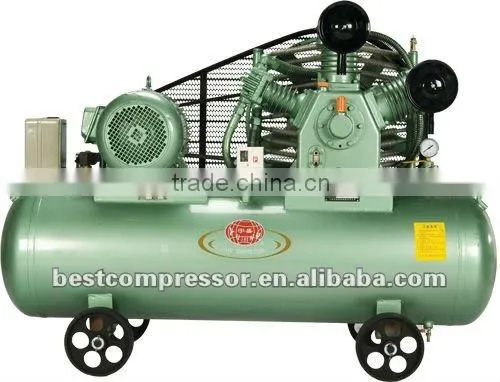

Portable Piston Air Compressor

Name: Portable Piston Air Compressor
Brand: Goodair
SKU: 131563543

Portable Piston Air Compressor thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Piston

Configuration:

Portable

Power Source:

AC Power

Contact Supplier Request Quote Chat Now

ZiQi Compressor (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Piston

Configuration Portable

Power Source AC Power

Lubrication Style Lubricated

Mute Other

Place of Origin Shanghai, China

Brand Name Goodair

Model Number portable piston air compressor HV3014

Specifications

portable piston air compressor
Germany brand and technology
piston and two-stages
4 wheels and smart
reason price

portable piston air compressor

Key Points

Reliability optimization design is adopted to increase the reliable operation;

Long stoke with low running speed structure, so as to guarantee the smooth operation and low noise;

T-type gap of piston ring was applied to reduce air leaking through this gap and decrease oil consumption;

The oil level sight-glass is provided with large visual angle and high grade of transparency, so that it is convenient to observe the oil level;

The material of discharge valve and spring imported from Sweden will improve the performance efficiency and prolong the service life;

The removable cooling fan with large diameter is adopted to reduce the vibration and decrease the discharge temperature;

4-pole motor is adopted so as to achieve a more smooth running and long service life;

Hihg-capacity air tank is used to reduce the start-up frequency and ensure the long service life of the air compressor.

Technical Parameter

Model	Power(kW)	F.A.D(M³/min)	Discharge pressure (MPa)	Speed(r/min)	Tank Volume(L)	Weight(KG)	Dimension(LWH) mm
HV3014	3.0	0.3	1.4	660	180	206	14605101030
HV4007		0.4	0.7/0.8	810		202
HV3010		0.3	1.0	660		203
HV4807	4.0	0.48	0.7/0.8	620		215
HV4010		0.42	1.0	870		210
HV4014		0.4	1.4	870		232
HT4014		0.45	1.4	780		247
HV6007	4.5	0.63	0.7/0.8	780		218
HT6010	5.5	0.65	1.0	870	240	272	15505701090
HT6014	5.5	0.62	1.4	660	240	216	15505701090

Abour us:

Shanghai GoodAir compressor Co., Ltd. located in China's economic center of Shanghai, and our head office is in Munich Germany is a professional engaged in compressor design, manufacturing enterprises. Since its inception the rapid development of the spirit to serve the industrial chain of air compressor to create the objective of a comprehensive whole and social advantages of resources and establish a strong technical team and perfect the modern enterprise management system. Production of products, including belt-type screw air compressor, Direct-type, air-cooled screw air compressor, water-cooled screw compressor, frequency and portable screw compressor.

Please feel free too ask me for more information.
