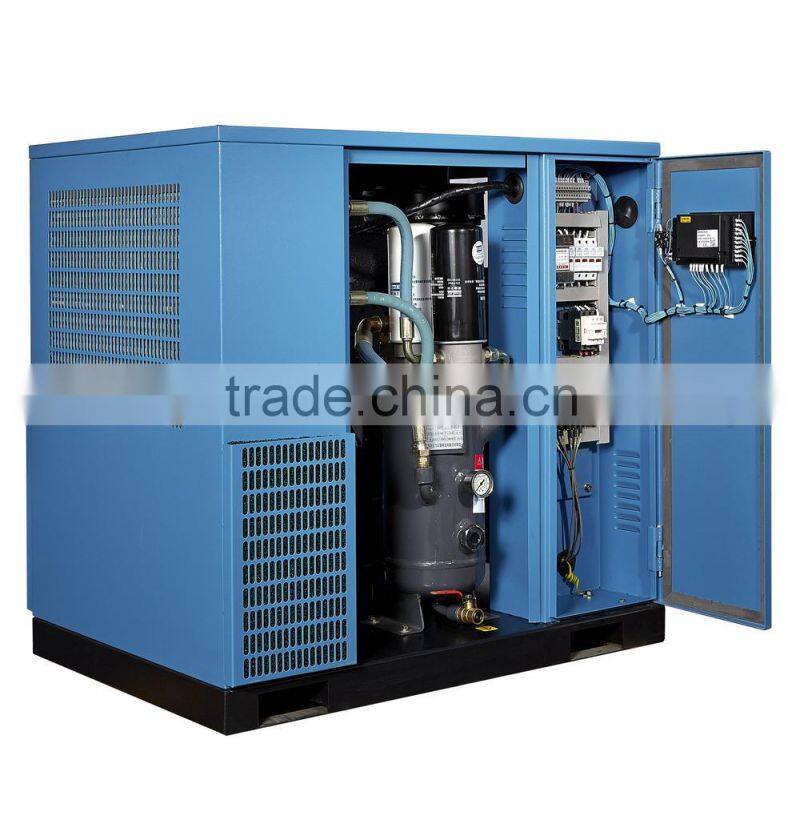

11kw 15hp price of air compressor
The screw air compressor main configures as follows:
1. Main frame: ZiQi
2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang
8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
type | water pressure(Mpa) | exhaust pressure(M³/Min) | power(KW) | noise(DB(A)) | lengh(Mm) | weight(Kg) | diameter(Mm) | inter diameter(Luch/Mm) | |
GA-3.7A | 0.7 | 0.55 | 3.7 | 60±2 | L | 650 | 220 | 20 | - |
0.8 | 0.45 | ||||||||
|
| M | 630 | ||||||
|
| H | 760 | ||||||
GA-5.5A | 0.7 | 0.8 | 5.5 | 62±2 | L | 650 | 230 | 20 | - |
0.8 | 0.7 | ||||||||
1.0 | 0.6 | M | 630 | ||||||
1.3 | 0.5 | H | 760 | ||||||
GA-7.5A | 0.7 | 1.3 | 7.5 | 63±2 | L | 1000 | 270 | 20 | - |
0.8 | 1.2 | ||||||||
1.0 | 1.1 | M | 750 | ||||||
1.3 | 0.9 | H | 950 | ||||||

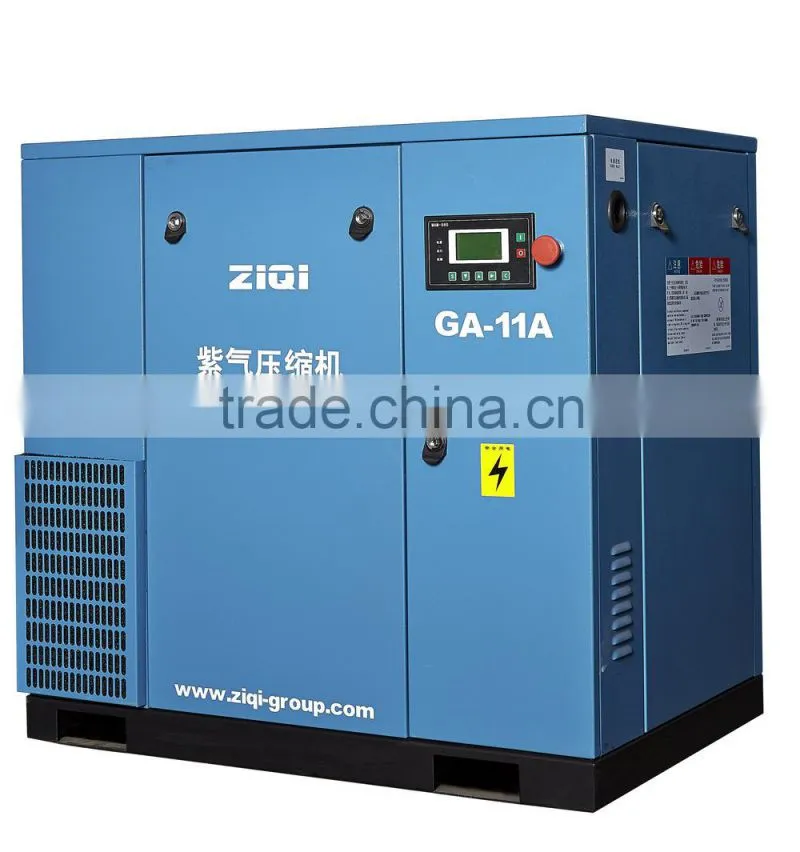

GA-11A | 0.7 | 1.8 | 11 | 63±2 | L | 1000 | 280 | 20 | - |
0.8 | 1.7 | ||||||||
1.0 | 1.5 | M | 750 | ||||||
1.3 | 1.2 | H | 950 | ||||||
GA-15A | 0.7 | 2.7 | 15 | 63±2 | L | 1260 | 540 | 25 | - |
0.8 | 2.5 | ||||||||
1.0 | 2.3 | M | 850 | ||||||
1.3 | 2.0 | H | 1220 | ||||||
GA-18.5A | 0.7 | 3.2 | 15 | 64±2 | L | 1260 | 550 | 25 | - |
0.8 | 3.0 | ||||||||
1.0 | 2.8 | M | 850 | ||||||
1.3 | 2.4 | H | 1220 | ||||||
1. Host body ( air end )
2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)
If you chose us, you are bound to have the most advance screw technology and the best service of the world.
ziqi provide high quality produces and services for generall industrials , manufacture industrials electricity, architecture, mining, energy, ect, our service network composed of distributors and agencies assigned by local subsidiaries , they are providing perfect services for ZIQI's customers from all over the world.
ZIQI Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
If you have any questions, please feel free to contact me. Thanks
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai, China.You can fly to pudong international airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
