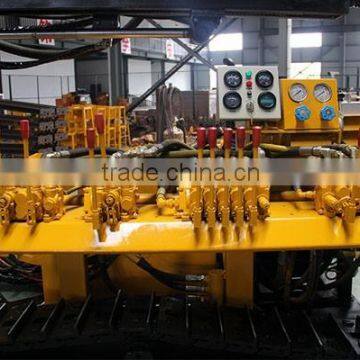

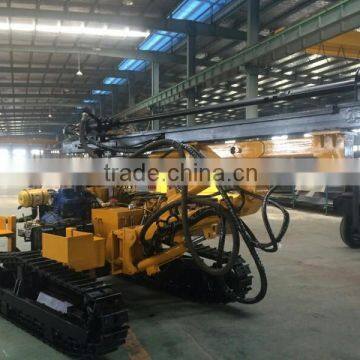

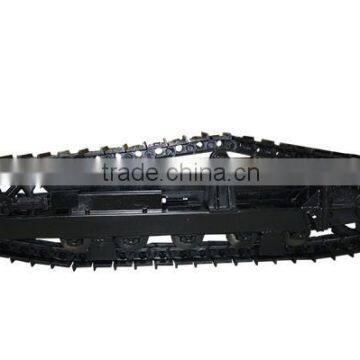

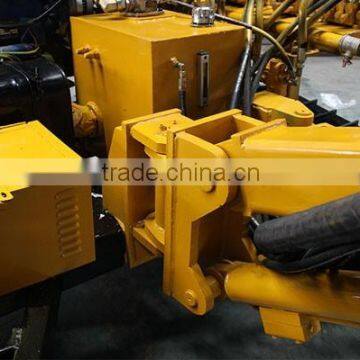

40m deep dth drilling rig machine for water drlling equipment
Equipped with efficient and reliable air end, host and engine connect by direct coupling , higher longer life.
Select Cummings/Yuchai diesel engine and other famous brand diesel engine,meet in China ll emission requirements,strong power,low fluel consumption, a nationwide after sale service system,the user can enjoy rapid and perfect servie.
Air control systenm is simple and reliable, according to the size of air consumption,automatic adjustment the air capacity between 0~100%,at the same time automatically adjusts the throttle of diesel engine, maximum to saving diesesl.
Intelligent microcomputer monitoring compressor exhaust pressure, exhaust temperature, engine speed,oil pressure ,water temperature,fuel tank level and other operating parameters,with automatic alarm and shut down protection function.
| Model | ZQ-420 |
| Rock Hardness | f=6-20 |
| Depth | 40m |
| Climbing ability | 30° |
| Power | YUCHAI 4 CYLINDER 58kw |
| Working Pressure | 0.7-2.1mpa |
| Air Consumption | 10-20m3/min |
| Diameter | Φ95-Φ100 |
| working speed | 2km/h-3km/h |
| Maximum lift | 32000N |
| Rotary torque | 4000Nm |
| Rotary speed | 0-90rpm |
| Guide maximum pendulum Angle | right 92°left 12° |
| Accessories | Ø 38 Steel wire rubber hose 2 pcs, 40A high |
| wind pressure hammers 1pc,Ø76*3m rods 6pcs, | |
| Ø76*2m rods 1 pc, High Static Pressure Ø115 bit 1 pc | |
| Weight | 5200kg |
Shanghai ZIQI Group air compressor air end adopt German original host, the company has abundant scientific research technology, European standard production line, make sure the “ZIQI” brand twin screw type air compressors which made in our factory, have step to a new standard level in technology, energy saving, to be the products of the Third Generation synchronized to Europeans, and to be low noise, energy saving type. Our company is always in accordance with the European advanced design philosophy and exquisite assembly technology, also continuously updating the manufacturing technique, enhance monitoring methods. ZIQI group always offer the best compressed air system solutions for you. Our working center premise is making sure the high quality of our compressor every components, this is also encouraging us to be best in omnibus. For this “ZIQI” Compressors adopt German air end, main components are all world famous brand, design excellent unique, enjoyed an very good reputation by users for the accuracy of manufacturing and high efficiency.
We firmly believe that ZIQI group is your reliable air compressor manufacturer. We offer the best compressed air system with our exquisite technology, high quality products and perfect service for users. Our factory products line contains air-cooling screw air compressor, water-cooling screw air compressor, variable frequency screw air compressor and portable screw air compressor, refrigerated air dryer, adsorption air dryer, ultrafilters etc... In users’ working site, ZIQI will supply best compressed air system, to let our users’ compressor achieve the best air production capacity. Users could choose an complete set of compressed air system of our products line to fulfill various kinds of requirements.
We promise:
We will work together with our users through innovation, communication, to supply the best compressed air system !
Whether pre-sale, in sale, after-sale, as long as the user needs the help of equipment and technical advice, our company will provide the technical information within 24 hours for free, debugging boot on spot. Having finished the debug, our engineers are responsible for the operation training for the user's staff, receiving user equipment faiure notification, Shanghai corporation will send service engineers arriving at the spot within 24hours. Company established 9 marketing services network and more than 50 distributors all over the country, and our service enjoys myriad of praises from users.
