Help Center315KW Qualified Screw Air Compressor
Related Products
-
355KW Screw Air CompressorUS$ 138,393 - 141,575MOQ: 1 Unit -
Oil Free Large Screw Air CompressorUS$ 42,424 - 43,939MOQ: 1 Unit
-
315KW Variable Frequency Screw Air CompressorUS$ 19,393 - 21,909MOQ: 1 Unit
-
High Efficeincy Screw Air CompressorUS$ 2,772 - 3,530MOQ: 1 Unit
-
132KW GAS Screw Air CompressorUS$ 21,136 - 22,348MOQ: 1 Unit
Advantage:
1,Durable
2,Environmental Protection
3,Economical
4,Useful
5,GHH Host from Germany,WEG IE4 MAIN MOTOR from Brazil
6,High Efficiency
7,Energy Saving
Technical Specifications:
Compressor Brand |
ZIQI | Compressor Name |
GA-315 |
Air Displacement m³/min |
42-59 | Color |
Blue |
Exhaust Pressure MPa |
0.7-1.3 | Cooling Method |
Air-cooling |
Power(KW) |
315 | Transmission |
Flexibility Direct Drive |
Net Weight(KG) |
7200 | Configurations |
Stationary |
Dimensions(mm) |
4650 *2300* 2400 | Starting Method |
Y- Start |
Voltage |
380V | Noise dB(A) | 84±2 |
Compressor Configuration:
A. Motor frame: Motor frame and end caps are made of cast iron materials. This is more firmly support bearing spindle so that the gap between the rotor and uniform, but also the coupling parts are used for permanent parallel flange.
B. Electrical design: Design speed, torque and operating parameters to meet the load requirements of the compressor. Motor efficiency and power factor has reached the optimal level, to meet the requirements Purple gas compressor.
C. Bearings: Designed with heavy-duty bearings SKF, greatly increasing the stability and longevity of the motor.

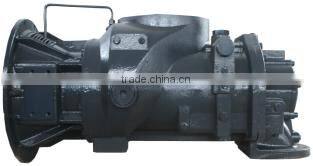

1, The host is a core part of the screw-type air compressors. Host originally designed: reliable quality, stable performance and high operating efficiency.
2, not only minimize manufacturing variations, but also allows the host to accurately installed
3,in some other parts of the compressor are on the reliable operation of the host provides important support and control.
Oil tube Adopt the ZIQI compressor exclusive locked technique, no oil leakage. Selection of Italy Manul high pressure tubing, 5 times longer than ordinary tubing life.
Paper washer Brand :The United States SEALTEX Adopt the non asbestos material , mechanism, high temperature resistant, oil resistant , anti corrosion.
Packaging:Plywood Packaging
Our packaging is strict and careful to make sure the goods intact
Shipping:Shipped in 5 days after payment
Our shipment is fast and secure.
THE SEVEN STAR BUTLER SERVICES
Our services promise you:
We provide the best and reasonable design and formula of compressor for you.
We provide the fastest and all-round feedback of problems of our product for you.
We provide the most professional and considerate technical support for you.
Established in 2007,ZiQi Compressor (Shanghai)Co.Ltd is located in the new district of Pudong of Shanghai.We are the professional producer of compressor making all kinds of compressors.We have our own intellectual property.And we provide excellent formula for the product for you.We have a passionate and professional team to assure our product and service perfect and towering.Your need is our meaning of existence.Your satisfaction is our most valuable prize .Your trust is our living foundation.We increasingly move forward,improve our products and transcend ourselves.Your wisest decision is cooperating with us we believe.Thanks for knowing and visiting us.You are welcomed by us every time.
Q:What is your ideal of the product you make?(Reporter)
A:We seek the benefits for our customers.So,we want our product to be more of environment protection,convenient to operate ,economical ,durable and useful.And of course,we are doing so as you can see.(GM)
Q:What do you think of the relationship between price and quality?(R)
A:Well,i think it is an interesting question.You know,they always say that the high quality calls for high price and low price must be connected with low quality.And as for me,i don't think so.Because the relationship between them is not that contradictory.I mean they are relative.The high price is not a warranty of high quality.And low price doesn't lead to low quality definitely.Our product is the best illustration of this notion.Our product aims at providing the high quality for our customers while we offer them the relatively low price.
Q:Then it seems a little unreasonable.I mean,if you do so,then you will cut your profits.And how can the factory survive then?(R)
A:You have a point here.The secret is that we don't need to cut many profits.Because we improve the technology and working efficiency to lower our producing cost.As you know,we survive in this industry relying on the all-round abilities not singlly on the low price.So we provide our customer with the product of high performance ratio.
