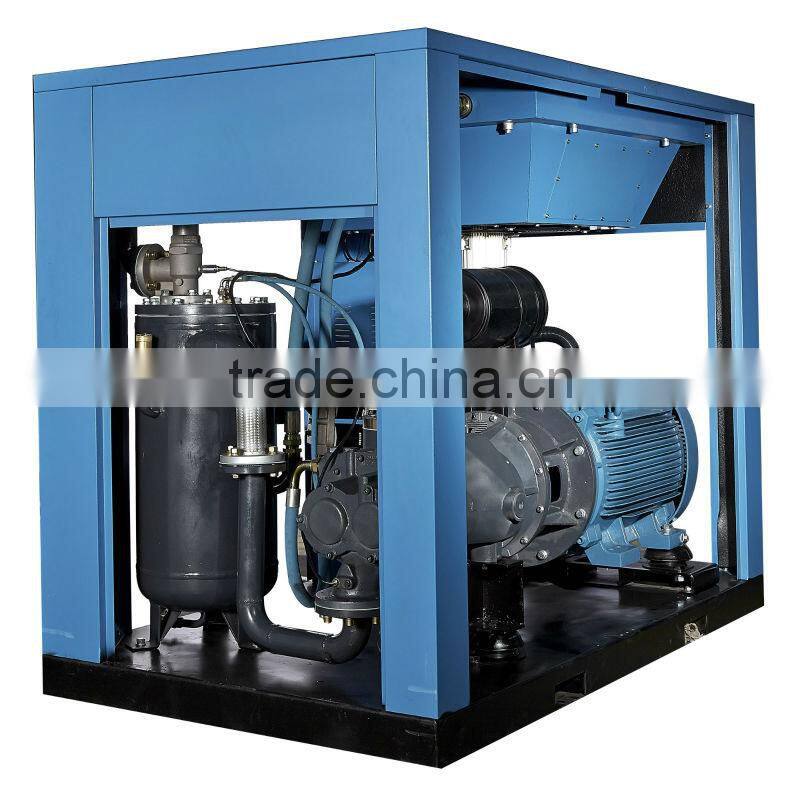

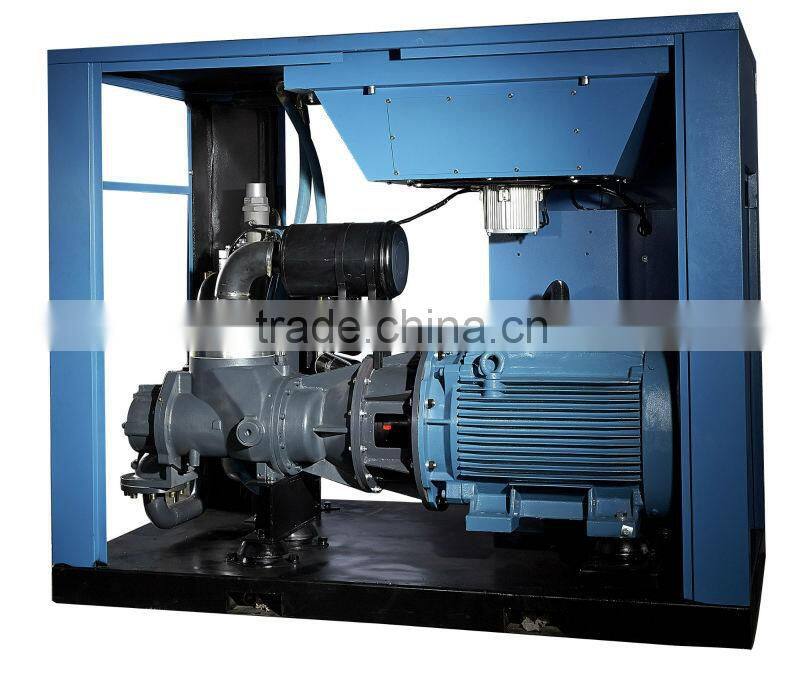

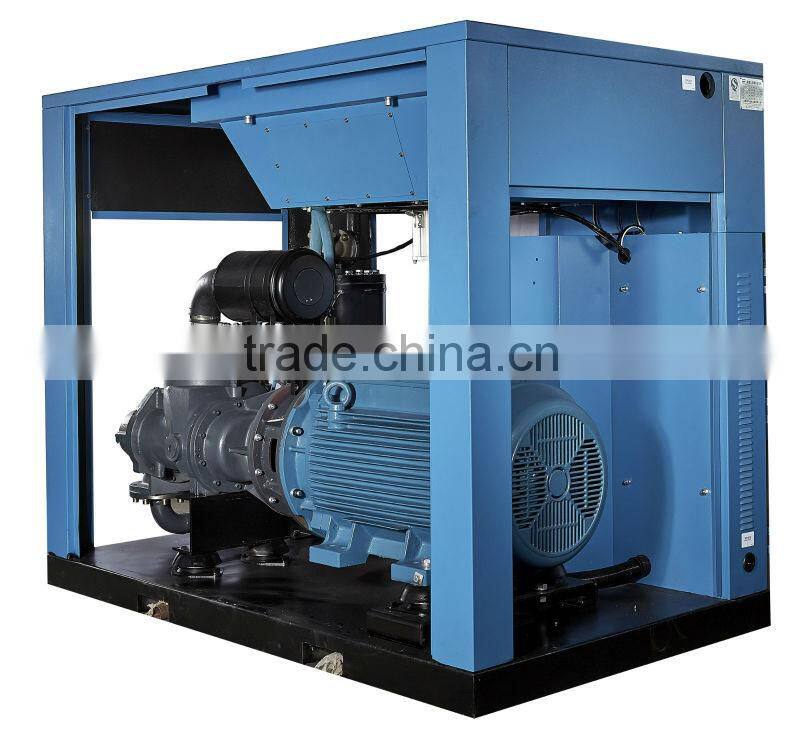

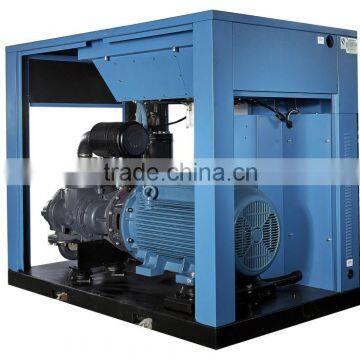

75hp Price of screw air compressors
The screw air compressor main configures as follows:
1. Main frame: ZiQi
2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang
8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
Model |
GA-37A |
GA-45A |
GA-55A/W |
GA-75 A/W |
GA-90 A/W |
GA-110 A/W |
GA-132 A/W |
||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
6.82/0.7 |
7.42/0.7 |
10.83/0.7 |
14.11/0.7 |
16.1/0.7 |
21.0/0.7 |
25.2/0.7 |
|
6.24/0.8 |
7.11/0.8 |
9.20/0.8 |
13.02/0.8 |
15.0/0.8 |
19.8/0.8 |
24.0/0.8 |
|||
5.74/1.0 |
6.22/1.0 |
8.61/1.0 |
12.04/1.0 |
13.8/1.0 |
17.9/1.0 |
21.0/1.0 |
|||
4.93/1.2 |
5.65/1.2 |
7.71/1.2 |
10.06/1.2 |
12.3/1.2 |
15.3/1.2 |
18.3/1.2 |
|||
No of compression stage |
|
Single stage compression |
|||||||
Cooling model |
|
A-Air cooling W-Water cooling |
|||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) |
|||||||
Noises Level |
dB(A) |
65±2 |
68±2 |
68±2 |
72±2 |
72±2 |
72±2 |
76±2 |
|
Transmission mode |
|
Belt Drive or Direct Drive (Optional) |
|||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
|||||||
Motor power |
kw |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
|
Starting model |
|
Y-Δ Start |
|||||||
External dimensions |
L |
mm |
1715 |
1715 |
2045 |
2045 |
2650 |
2650 |
2400 |
W |
mm |
1090 |
1090 |
1230 |
1230 |
1640 |
1750 |
1450 |
|
H |
mm |
1635 |
1635 |
1820 |
1820 |
1850 |
1850 |
1800 |
|
Net Weight |
Kg |
1120 |
1200 |
1750 |
1820 |
2200 |
3000 |
3550 |
|
Air out pipe diameter |
Inch |
G1 1/2” |
G1 1/2” |
G2” |
G2” |
DN65 |
DN65 |
DN65 |
|
Volume Lubricant oil |
L |
22 |
22 |
50 |
50 |
50 |
75 |
75 |
|

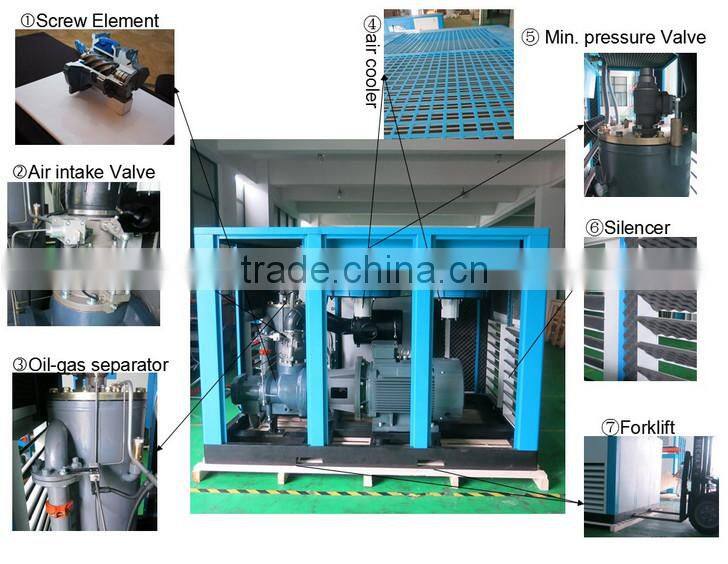

1. Host body ( air end )
2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)
3. Direct driven type -- from 55kw to 355kw
4.The motor is Brazilian WEG brand
5.High quality Air filtre
more direct drive informations
If you chose us, you are bound to have the most advance screw technology and the best service of the world.
ziqi provide high quality produces and services for generall industrials , manufacture industrials electricity, architecture, mining, energy, ect, our service network composed of distributors and agencies assigned by local subsidiaries , they are providing perfect services for ZIQI's customers from all over the world.
ZIQI Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
If you have any question,please contact me.
