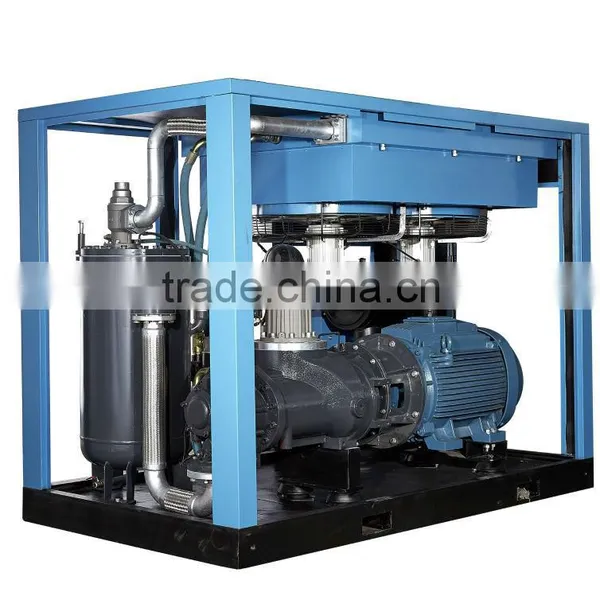

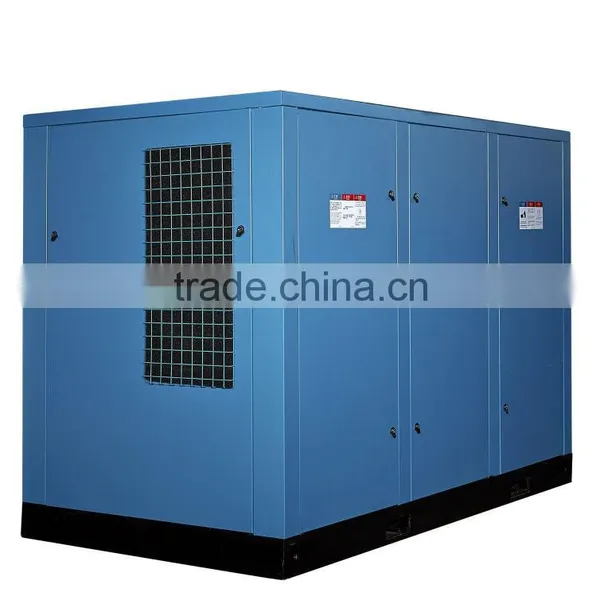

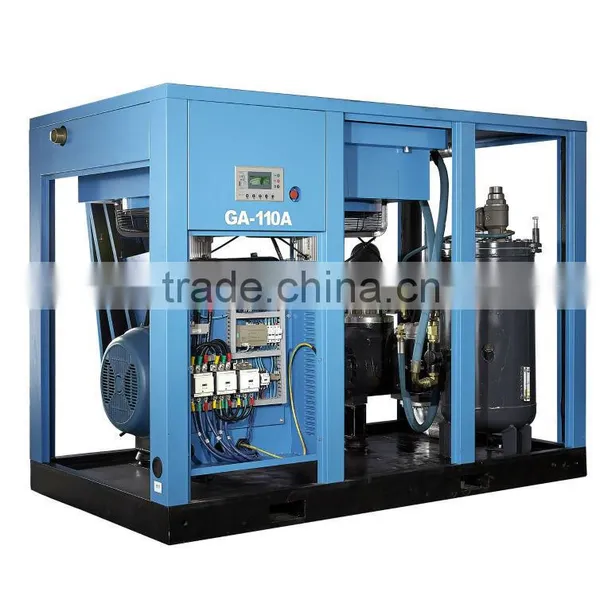

160kw eco air compressor machines
high pressure stationnary air compressor main configures as follows:
1. Main frame: ZiQi
2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang
8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
Model |
GA-37A |
GA-45A |
GA-55A/W |
GA-75 A/W |
GA-90 A/W |
GA-110 A/W |
GA-160 A/W |
||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
6.82/0.7 |
7.42/0.7 |
10.83/0.7 |
14.11/0.7 |
16.1/0.7 |
21.0/0.7 |
29.5/0.7 |
|
6.24/0.8 |
7.11/0.8 |
9.20/0.8 |
13.02/0.8 |
15.0/0.8 |
19.8/0.8 |
28.9/0.8 |
|||
5.74/1.0 |
6.22/1.0 |
8.61/1.0 |
12.04/1.0 |
13.8/1.0 |
17.9/1.0 |
26.8/1.0 |
|||
4.93/1.2 |
5.65/1.2 |
7.71/1.2 |
10.06/1.2 |
12.3/1.2 |
15.3/1.2 |
22.8/1.3 |
|||
No of compression stage |
|
Single stage compression |
|||||||
Cooling model |
|
A-Air cooling W-Water cooling |
|||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) |
|||||||
Noises Level |
dB(A) |
65±2 |
68±2 |
68±2 |
72±2 |
72±2 |
72±2 |
77±2 |
|
Transmission mode |
|
Belt Drive or Direct Drive (Optional) |
|||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
|||||||
Motor power |
kw |
37 |
45 |
55 |
75 |
90 |
110 |
160 |
|
Starting model |
|
Y-Δ Start |
|||||||
External dimensions |
L |
mm |
1715 |
1715 |
2045 |
2045 |
2650 |
2650 |
3100 |
W |
mm |
1090 |
1090 |
1230 |
1230 |
1640 |
1750 |
1800 |
|
H |
mm |
1635 |
1635 |
1820 |
1820 |
1850 |
1850 |
2065 |
|
Net Weight |
Kg |
1120 |
1200 |
1750 |
1820 |
2200 |
3000 |
3200 |
|
Air out pipe diameter |
Inch |
G1 1/2” |
G1 1/2” |
G2” |
G2” |
DN65 |
DN65 |
DN50 |
|
Volume Lubricant oil |
L |
22 |
22 |
50 |
50 |
50 |
75 |
75 |
|

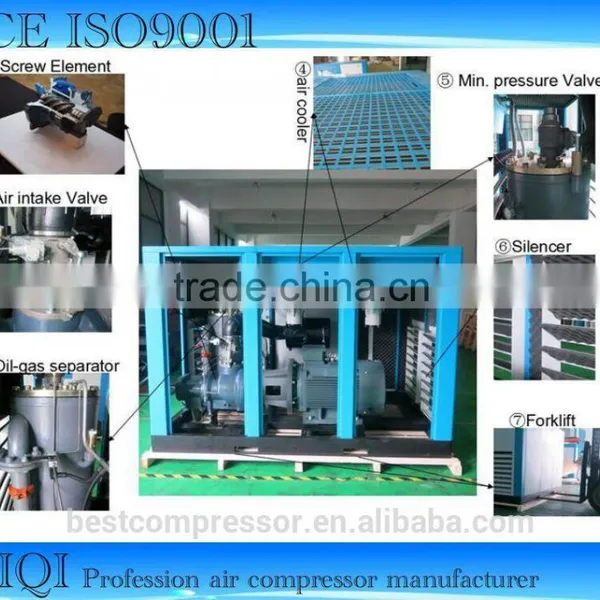

1. Host body ( air end )
2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)
3. Direct driven type -- from 55kw to 355kw
4.The motor is Brazilian WEG brand
5.High quality Air filtre
6.More informations:
ZIQI Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
If you have any questions, please feel free to contact me. Thanks
