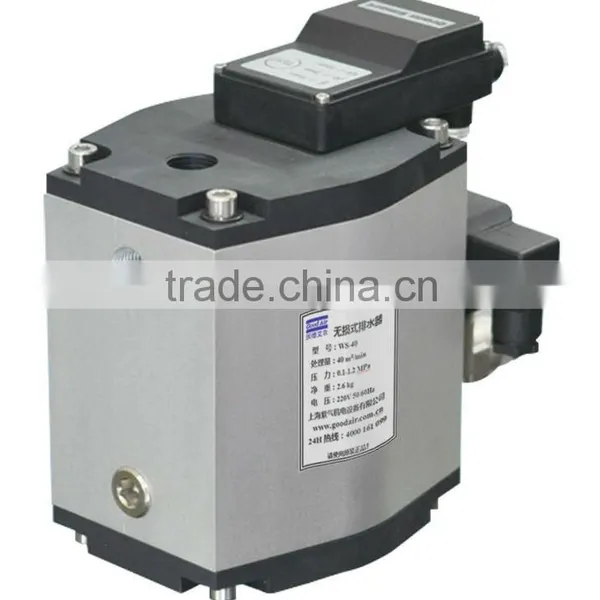

Compressor System Drain Smart (no Air Loss Drainer)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Screw
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Yes
Place of Origin
Shanghai, China
Brand Name
GoodAir
Model Number
WS-40
Specifications
Compressor system drain smart (no air loss drainer)Compressor system drain smart (no air loss drainer) Working Theory: 1. Condensate water enter into the catch basin of drainer, water level rising up contimuously, when the water level arrive at the highest level, which will be monitored by the liquid level sensor, then control the drainage valve open, the condensate water will discharged rapidly. 2. The drainage valve draining continuously until the water level to the lowest level, the hydraulic capsule control the drainage valve close rapidly, because now the water level still have some distance to the drainage valve, so this drainage proces will not cause the compressed air loss. 3. Once the drainage valve have some unusual cause the condensate water level too high or too low, such as blockage, or valve plug block, will be monitored by the liquid level sensor automatically, the control circuit could change to self-cleaning drain away water program, for now the panel yellow indicator lamp flicker, long-distance unusual signal connecting, drainage magnetic valve will open 5 second per every 3 minutes, to make the drain valve under the state of loading and unloading in turn, so that could discharge the smudginess foreign body, until the discharge water level to get right.
