Self - Create High Speed 260box/min Automatic Cartoning Machine
- Shanghai Beijing etc.
- T/T Money Gram
You May Like
-
High Speed Adjustable Continuous Cartoning Machine
-
Various Kinds Higher Speed Continuous HDZ-260 Cartoning Machine
-
Faster Speed Continuous HDZ-260 Cartoning Machine
-
Large High Speed Automatic Cartoning Machine
-
High Speed Automatic Horizontal Carton Packaging Machine for Cosmetics Bottle, Pouch, Injection, Blister
-
260box/min Automatic Multifunction High-speed Cartoning Machine
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Shanghai Wanshen | Model Number | WS-260 Automatic High-speed Packaging Machine | |
| Usage | Liquid | Voltage | 380V.50Hz | |
| Power(W) | 3.7KW | Weight | 2200KG | |
| Dimension(L*W*H) | 3800*1200*1500mm | Certification | ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

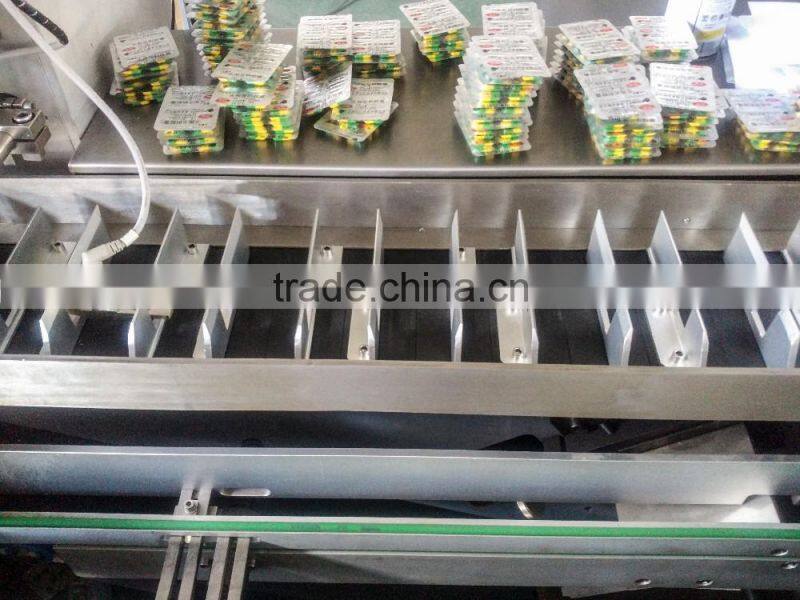

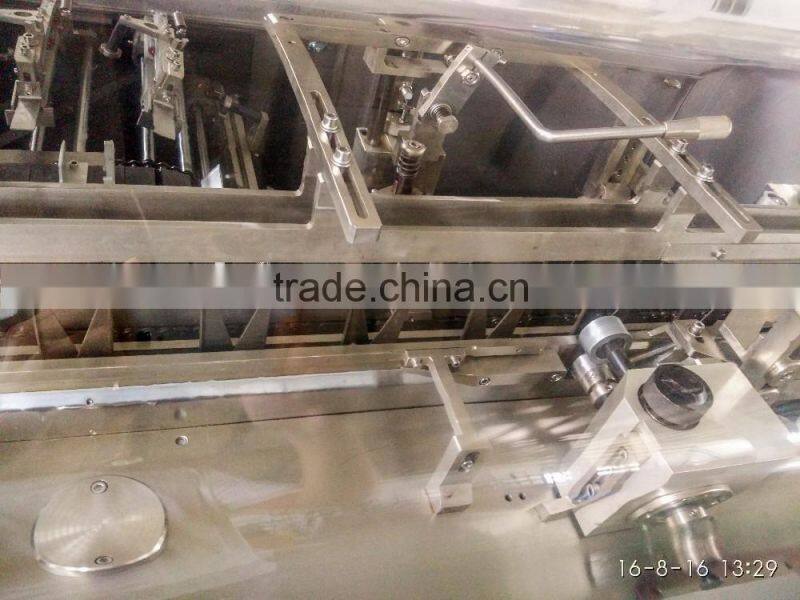

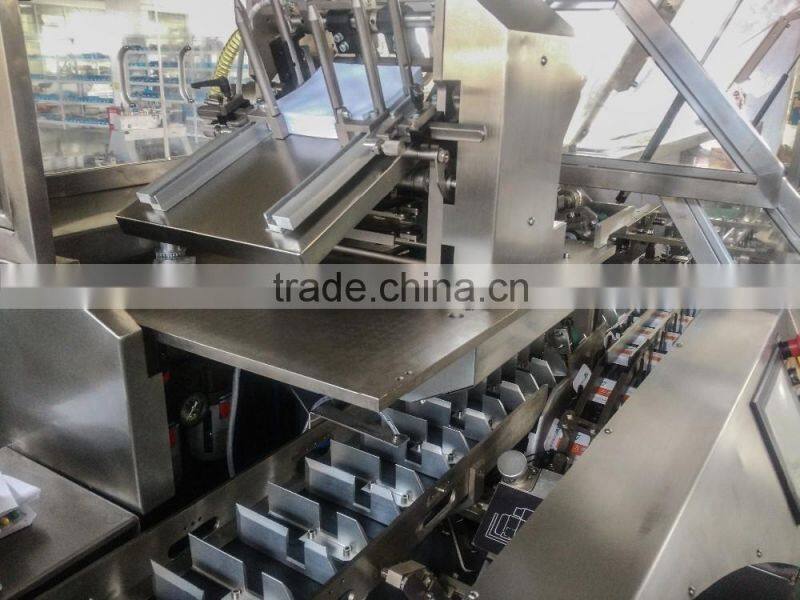

WS-260 Automatic High-speed Packaging Machine
The equipment is mainly used for high-speed automatic packaging of soft tubes,boards,and bottle types' product.
| Speed | Specifications for box | Power | ||
| ≤260boxes/min | (50mm-200mm) ×(30mm-150mm) ×(5mm-50mm) | 220V·50HZ | ||
| Total Power | Equipment Dimension | Compressed air pressur | Weight | |
| 3KW | 2500mm×1030mm×1520mm | 0.5Mpa | 600kg | |
1.Using PLC and closed-loop servo(frequency) circuit automatic control system.
2.This machine adopts man-machine interface operating system,automatically display box speed,quantity and other performance parameters ,and also display the fault causes and methods of operation and maintenance.
3.It can be implemented that adjust and use of more specifications at the specific confine on the same machine.
4.Manual and automatic conversion.
5.It can simultaneously complete that the folding of instructions and cartoning.
6.It can print three numbers on the box,in additional, it also has the functions of print serial numbers.
7.Incorporates automatic inspection system and has the functions of automatic suspension and removal of non-conforming products.
8.It can be installed with hot melt adhesive machine.
9.Adopt self-lubricating system and makes running more smoothly.
10.The body adopts whole-exposure patented technology;it can make repair and regulation more convenient.
11.It is adjusted through dial and uses friendly mechanical memory device,and this can change the size quickly.
Shanghai Wanshen is engaged in the packaging machinery R & D and manufacturing for more than 18 years, accumulated a wealth of industry experience, service more than 1000 customers, with the strength to win thecustomer the consistent approval!
Our company closely with scientific research units in Shanghai Jiaotong University,Nanchang University, Nanchang Institute of Aeronautical Technology, such asuniversities, has strong technology development capabilities, the company has independent intellectual property rights!
Our company has passed ISO9001 international quality system certification, has been to product quality as the lifeline enterprises, products with low failure rate,stable performance and favored to win the market!
Wanshen have machinery manufacturing and testing equipment 200 sets, all kinds of professional and technical personnel more than fifty people. Jiangxi is located in the production base with an area of 32000 square meters factory.
Wanshen equipped with professional technical service team, rich experience,excellent technology, services in place in time, become a solid backing to win the market!
If the carton specification go beyond the set confine,our company can customize.the type of objects,the number and different packaging materials into the box will affect the speed of cartoning
We have rich and very good experience in cooperating with more than 1500 customers like famous pharmaceuticals and cosmetics manufacturers at home and abroad. We keep offering our customers by high quality, reasonable price and excellent service.
We already have 20 years manufacturing experience, and will supply best service to each customer,trust you,we will be your best choice.
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.
Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:Do you have the machine video?
A: l me your email whatsapp skype .. i will send to you.
