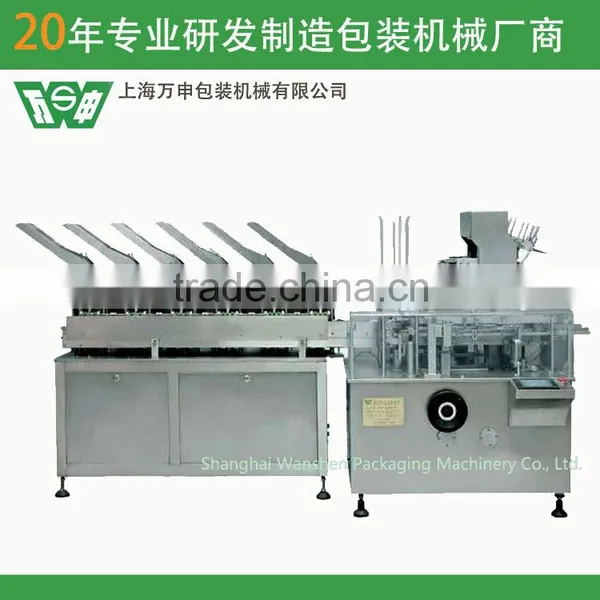

HDZ-100D Cartoning machine for thin-sheet products like facial masks, condoms, patches &etc.
1.Main characteristics:

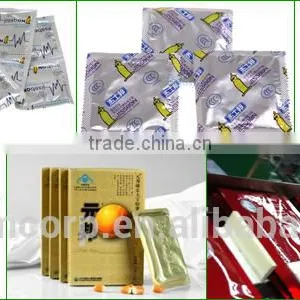

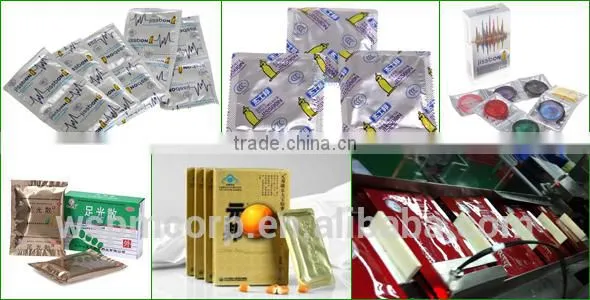

The equipment is mainly used for automatic packing of products with thin-sheet (thickness ≥ 1mm) like facial mask, condom, medical patch & etc, and many varieties and many specifications of products.
The kind of machine is mainly to solve the packing of products which difficult to sub boards and having many species in a box.
It can be connected with other powder packs machine, pillow packaging machines to operate together.
2.Performance and characteristics:
The speed is regulated by variable frequency and adopts automatic control system.
The machine adopts man-machine interface operating system, automatically display box speed, quantity and other performance parameters, and also display the fault causes and methods of operation and maintenance.
It can be implemented that adjust and use of more specifications at the specific confine on the same machine.
Manual and automatic conversion
It can be simultaneously completed that the folding of instructions and cartoning.
It can print three batch numbers on the box and also have the functions of print serial number.
Incorporates automatic inspection system and has the functions of automatic suspension and removal of non-conforming products.
It can be installed with hot melt adhesive machine.
With functions of automatically separate material and absorb material simultaneously.
With functions of automatic removal of non-conforming products if lack of material.
3.Technical Parameters:
Speed |
Specifications of the paper carton: |
Specifications of the manual: |
50-80boxes/min |
(110mm-160mm)*(70mm-135mm)*(12mm-35mm) |
(110mm-160mm)*(90mm-250mm) |
Power |
Total Power |
Equipment dimensions |
380V.50HZ |
1.5kw |
2700mm*1120mm*1500mm |
Compressed air pressure |
Compressed tolerance |
Weight |
0.6Mpa |
30-90l/min |
1100kg |
Weight of Manual |
Weight of Carton |
|
40-80g/m2 |
250-400g/m2 |
Special Remark: Besides the standard products, we also offer the customized service for various products to be cartoned. We have rich experience in customized the cartoning machine for Egg rolls, Piston, facial tissue, Instant noodles, disinfection sticks, pencils and etc.
1. The 19th China International Pharmaceutical Industry Exhibiton
Date: 28th-31th Oct, 2014
Address: 1 Hall, Shenzhen Convention and Exhibition Center , Shenzhen
Booth No.: G117
2. 48th(2014 Autumn)China International Pharmaceutical Machinery Exposition
Date: Nov.07 (Fri.) - 10(Mon.), 2014
Venue: Chongqing International Expo Center
3. Bombay Convention&Exhibition Centre
Address:Western Express Highway,
Goregaon East, Mumbai, India
Booth No.:J21
Date: November 20th-22th
4. International Pharmaceutical Machinery Exposition
5. CPHI Russia 2015
Date: 27 - 29 April 2015
Address:JSC VDNH (VVC), Pavilion 75, Hall A, Moscow, Russia
Stand No.: 116
6.49th (2015 Spring) China International Pharmaceutical Machinery Exposition
Date:17-20 May 2015
Address:Qingdao International Expo Center
Booth No.:Packaging Hall
7.Shanghai CBE 2015(the 20th)
Date:19-21 May 2015
Address:Shanghai New International Expo Center
2345 Longyang Rd., Pudong New Area, Shanghai
Booth No.:W5L27
8. Healthplex& Nutraceutical China 2015
Date:24-26 June 2015
Address:Shanghai New International Expo Center
2345 Longyang Rd., Pudong New Area, Shanghai
Booth No.:N3F68
Shanghai Wanshen Packaging Machinery Co., Ltd. was fully invested in 1997 by Jiangxi Wanshen Head
office. Our company is the one with the combination of researching, designing, manufacturing, marketing, trading
and servicing, which is a member of National Pharmaceutical Equipment Industry Association and also is a
member of Chinese Packaging Federation. The company has passed on ISO9001 international product quality
attestation, and has a strong research and design capability.
Our company develops and manufactures the HDZ-60B bubble-cap plate cut automatic cartoning machine,
which is ranked the country’s leading level, filling the domestic blank and obtains Chinese national patent
certificate. On the basis of the HDZ-60B, we successively explore five series of HDZ-100 and HDZ-150
multifunctional packaging machine and other machines of more than 40 specifications. Our machines, which apply
to cartoning automatically for pharmaceutical, food, cosmetic, health care products and light industrial goods, meet
requirement of GMP, and have been sold to hundreds of manufacturer at home and abroad.
Our multifunctional packaging machines has been awarded as “national new product” by the State Economic
and Trade Commission, and the manufacturing project has been listed as “the promoting project of national high
technology industrialization” by SDPC and has achieved the innovation fund for STF. Meanwhile our company
has gained many honors, such as “excellent enterprise”, “provincial private science and technology enterprise”,
etc.
Our ability to develop technology is mature, and we can design detail project and regulate relevant device
according to customer’s needs. We warmly welcome friends from all walks of life to visit our company and enjoy
the high quality products, reasonable price, excellent service and creative spirit we offer.
1. HDZ-100 Series Automatic Cartoning Machine(Speed below 100boxes/min.)
HDZ 100P Bottle Cartoning Machine HDZ 100B Blister Cartoning Machine
HDZ 100G Soft Tube Cartoning Machine HDZ 100K Injection Cartoning Machine
HDZ 100BZ Pillow Bag Cartoning Machine HDZ 100D Thin-sheet products like condom, facial
tissue, patches Cartoning Machine
HDZ-100KM Pencil Cartoning Machine
2.HDZ-150 Series Automatic Cartoning Machine(Speed over 100 boxes/min.)
HDZ-150P Bottle Cartoning Machine HDZ-150B Blister Cartoning Machine
HDZ-150G Soft Tube Cartoning Machine HDZ-150K Injection Cartoning Machine
HDZ-150BZ Pillow bag Cartoning Machine
3.High Speed( Continous Motion) Cartoning Machine
High Speed(continous motion) Cartoning Machine
4. Automatic Cellophane Wrapping Machine
WS 400 Cellophane Wrapping Machine for multiple products
WS 350 Cellophane Wrapping Machine for bundle pcs
WS 250 Cellophane Wrapping Machine for Single pc
5.Semi-automatic Cellophane Wrapping Machine
Semi-automatic Cellophane Wrapping Machine
We have rich and very good experience in cooperating with more than 1500 customers like famous pharmaceuticals and cosmetics manufacturers at home and abroad. We keep offering our customers by high quality, reasonable price and excellent service.
