Tempered Glass Cutting Machine, Water Jet Cutting Machine

Name: Tempered Glass Cutting Machine, Water Jet Cutting Machine
Brand: MUNAN CNC
SKU: 131508331
Availability: InStock

US$ 32,000 - 45,000 MOQ: 1 Set

Key Specifications

Brand Name:

MUNAN CNC

Model Number:

MN4235-NC3020

After-sales Service Provided:

Engineers available to service machinery overseas

Jinan Munan International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name MUNAN CNC

Model Number MN4235-NC3020

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. tempered glass cutting machine, water jet cutting machine
2. American technology and parts
3. Good after sales

tempered glass cutting machine, water jet cutting machine

Model	MN4235(fly arm)				MN4235(bridge type)
Describe	1313	1515	1520	1525	1530	2030	2040	2060
	1.3x1.3m	1.5x1.5m	1.5x2.0m	1.5x2.5m	1.5x3.0m	2.0x3.0m	2.0x4.0m	2.0x6.0m

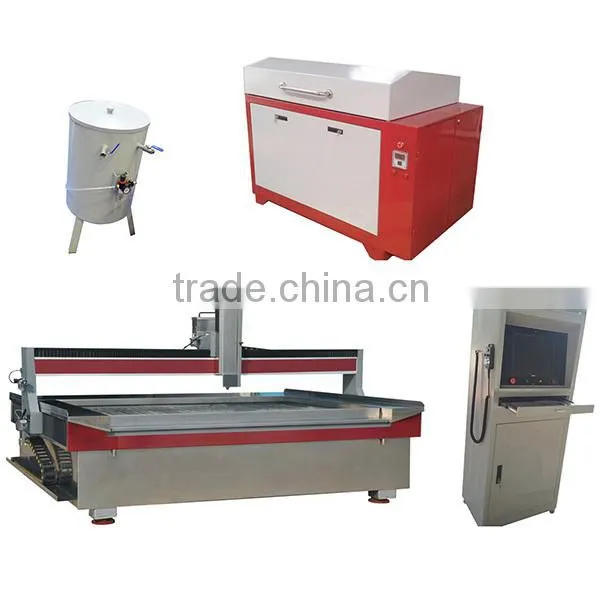

	MN4235 intensifier pump
	One set of 3-axis cutting head
	PC based CNC controller and cabinet
	Automatic abrasive deliver system
	Pump oil Cooling system
	Water softener
	One set of tool and spare parts kit
	Auto CAD software
	One year warranty

Option

Upgrade original KMT intensifier

Automatic sludge removal system

4th axis cutting head

Double cutting head

Warranty	Provide life-long service, free upgrades, warranty period is one year.
Term of delivery	Delivery for 15-20 days after received deposits
Installation & Training	needed to first pay round trip and responsible accommodation for during the installation (two members)
Payment terms	T/T 30% advance, after the 70% delivered will be arrange shipment.
Validity of offer	First come, first served basis
Commitment	After the installation training, guarantee the customer can independent programming and independent operate
Package	Thick plastic thin film simple packaging and container.

intensifier pump
Model	MN4235	MN4238
Intensifier	Accustream from USA	KMT from German
Continuous working pressure	350MPa	380MPa
Supercharge ratio	20:1
Max water discharge	3.8L/min
Water supply pressure	≥0.2MPa
Oil pump displacement	80ml/rpm
Max discharge of oil pump	120L/min
Oil pump pressure	31.5MPa
Hydraulic oil tank capacity	46#/320L
Max diameter of orifice	0.35mm
Main motor power	37kw
Power supply	380V 50Hz
Weight	1200kgs
Overall dimension	1700x1000x1450mm
Main motor	Siemens
PLC	Siemens
Heat exchanger	Water/oil panel cooler
Control system	LP/HP auto control
Pressure-Temperature display	Digital temperature display
Proximity sensor	Original imported from Switzerland
Auto alarming and shut-down	Over-temperature,excessive pressure,water shortage

Specifications of cutting table -NC2015
Model	fly arm		bridge type
Structural style	Fly arm		Gantry
Z travel	150mm
Control accuracy	0.002mm
Cutting accuracy	0.1mm
Reposition accuracy	0.02mm
Servo motor	X:2.3kw;Y:1.6kw;Z:0.5kw	X:0.75kw;Y-1.5kw;Z-0.5kw
Linear guide	PMI
Ball screw	PMI
X,Y axis	Steel tube and cast iron			Aluminum
Water tank	Coated stainless steel

Specifications		Quantity
Assembled CNC frame,working table with water tank		1
CNC controller(cabinet,industrial pc,17’’ LCD		1
Intensifier pump (37kw 420MPa)		1
High pressure pipe&3 axis cutting head		1
Auto Abrasive feeding system		1
Water cooling tower		1
Water softener		1
Maintenance tools and banners		1
Spare parts	Gemstone orifice	10
	nozzle	5
	Oil seal	5
	Hp seal	5
	Outlet poppet	2
	HP seat	2
	Poppet spring	2
	Inlet poppet	2
	Inlet poppet housing	2
	Check valve repair kit	1
	Blue goop	1
