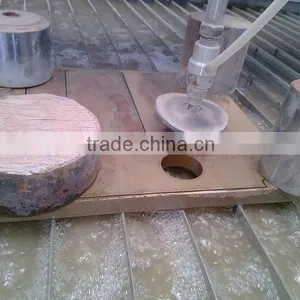

factory price!!! hot sales!!! water jet metal cutting machine

Model

MN4235(fly arm)

MN4235(bridge type)


Describe

1313

1515

1520

1525

1530

2030

2040

2060

1.3x1.3m

1.5x1.5m

1.5x2.0m

1.5x2.5m

1.5x3.0m

2.0x3.0m

2.0x4.0m

2.0x6.0m

MN4235 intensifier pump

One set of 3-axis cutting head

PC based CNC controller and cabinet

Automatic abrasive deliver system

Pump oil Cooling system

Water softener

One set of tool and spare parts kit

Auto CAD software

One year warranty

Option

Upgrade original KMT intensifier

Automatic sludge removal system

4th axis cutting head

Double cutting head

Warranty

Provide life-long service, free upgrades, warranty period is one year.

Term of delivery

Delivery for 15-20 days after received deposits

Installation & Training

needed to first pay round trip and responsible accommodation for during the installation (two members)

Payment terms

T/T 30% advance, after the 70% delivered will be arrange shipment.

Validity of offer

First come, first served basis

Commitment

After the installation training, guarantee the customer can independent programming and independent operate

Package

Thick plastic thin film simple packaging and container.

intensifier pump

Model

MN4235

MN4238

Intensifier

Accustream from USA

KMT from German

Continuous working pressure

350MPa

380MPa

Supercharge ratio

20:1

Max water discharge

3.8L/min

Water supply pressure

≥0.2MPa

Oil pump displacement

80ml/rpm

Max discharge of oil pump

120L/min

Oil pump pressure

31.5MPa

Hydraulic oil tank capacity

46#/320L

Max diameter of orifice

0.35mm

Main motor power

37kw

Power supply

380V 50Hz

Weight

1200kgs

Overall dimension

1700x1000x1450mm

Main motor

Siemens

PLC

Siemens

Heat exchanger

Water/oil panel cooler

Control system

LP/HP auto control

Pressure-Temperature display

Digital temperature display

Proximity sensor

Original imported from Switzerland

Auto alarming and shut-down

Over-temperature,excessive pressure,water shortage

Specifications of cutting table -NC2015

Model

fly arm

bridge type


Structural style

Fly arm

Gantry

Z travel

150mm

Control accuracy

0.002mm

Cutting accuracy

0.1mm

Reposition accuracy

0.02mm

Servo motor

X:2.3kw;Y:1.6kw;Z:0.5kw

X:0.75kw;Y-1.5kw;Z-0.5kw

Linear guide

PMI

Ball screw

PMI

X,Y axis

Steel tube and cast iron

Aluminum

Water tank

Coated stainless steel

Specifications

Quantity

Assembled CNC frame,working table with water tank

1

CNC controller(cabinet,industrial pc,17’’ LCD

1

Intensifier pump (37kw 420MPa)

1

High pressure pipe&3 axis cutting head

1

Auto Abrasive feeding system

1

Water cooling tower

1

Water softener

1

Maintenance tools and banners

1

Spare parts

Gemstone orifice

10

nozzle

5

Oil seal

5

Hp seal

5

Outlet poppet

2

HP  seat

2

Poppet spring

2

Inlet poppet

2

Inlet poppet housing

2

Check valve repair kit

1

Blue goop

1
