Specifications
1. 4th axis water jet marble cutting machine price2. American technology and parts
3. Good after sales service
Good quality water jet marble cutting machine price

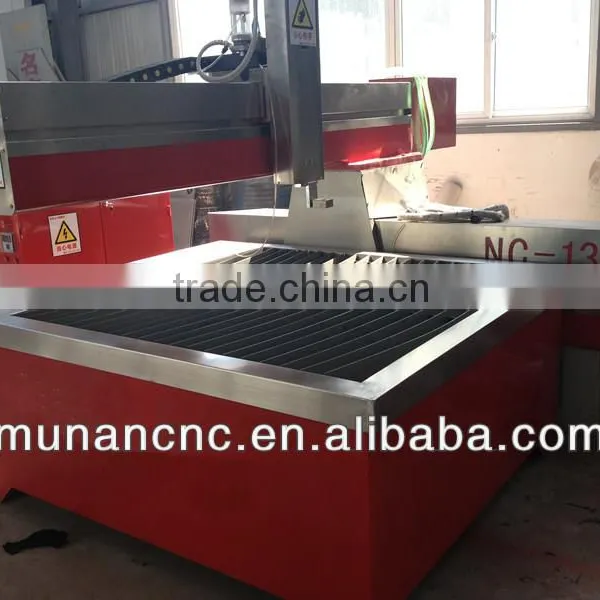

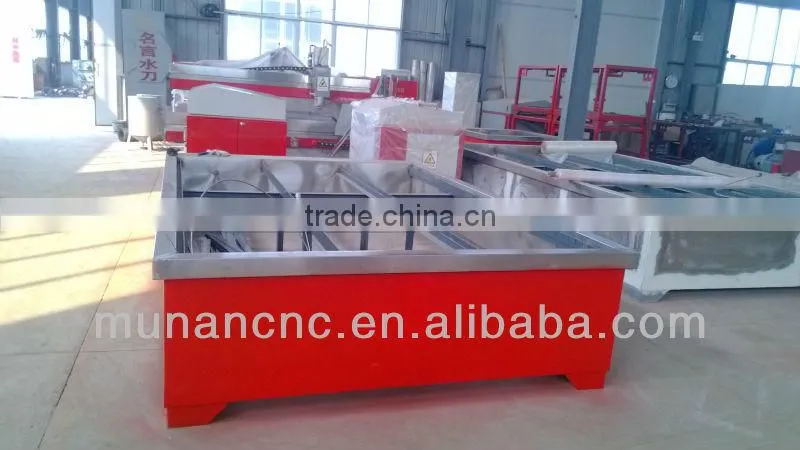

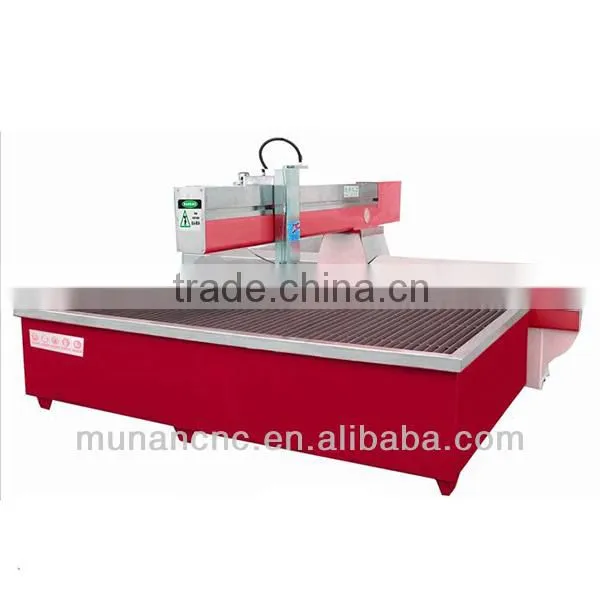

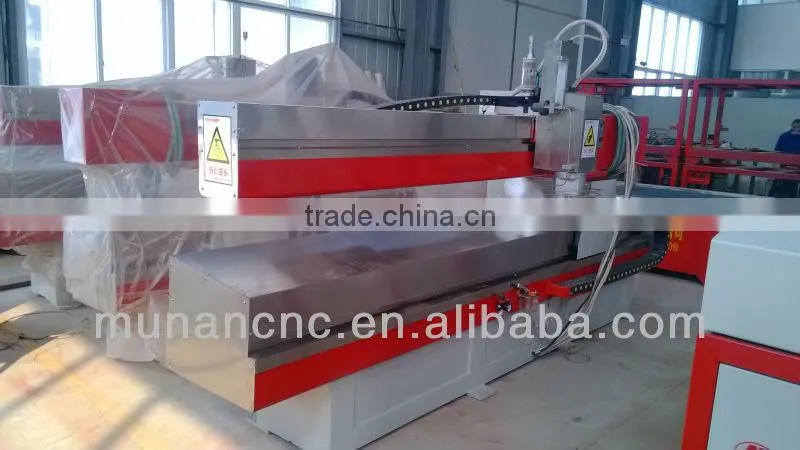

1 Cutting table
We have two kinds of cutting table: bridge style and flying arms style. And all the machine can be build base on customers
requirements.
NC series |
NC1313-I |
NC2015-I |
NC2515-I |
NC3020-I |
NC6020-I |
Table size/m |
1.3*1.3 |
2.0*1.5 |
2.5*1.5 |
3.0*2.0 |
6.0*2.0 |
Optional working area |
Weight of the machine: 1.3m/1.5m/1.8m/2.0/3.0m Length of the machine: less 6.0m |
||||
Z axis travel |
150mm/210mm |
||||
Transmission |
German high precision ball screw |
||||
Cutting accuracy |
±0.05mm |
||||
Repeatability accuracy |
±0.03mm |
||||
Max.Travelling speed |
20m/min |
||||
Power |
220V/380V/415V, 50/60HZ |
||||
Drive motors |
Taiwan AC Servo motors |
||||
Controller |
PC with controller |
||||
software |
AutoCAD |
||||
Cantilever structure (most popular structure): the cutting of any complicated plane curve can be finished arbitrarily. User can load and unload
the parts from three directions, easy to load and unload

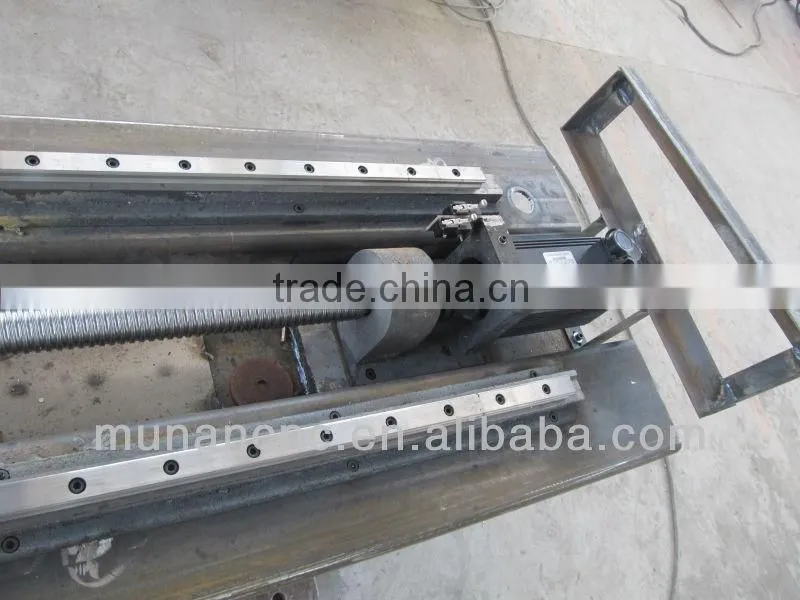

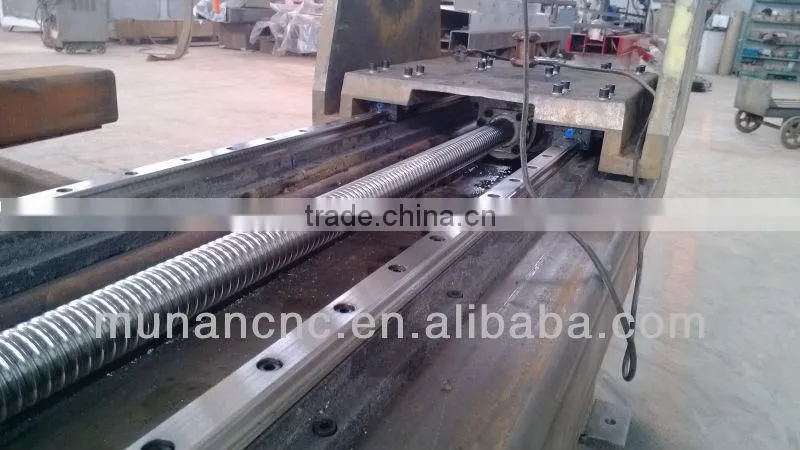

Servo driving is equipped with the ball screw and linear guide
Excellent dust-proof device: the integral steel stainless dust-proof cover is adopted on an overall basis
Water tank: stainless steel plate.

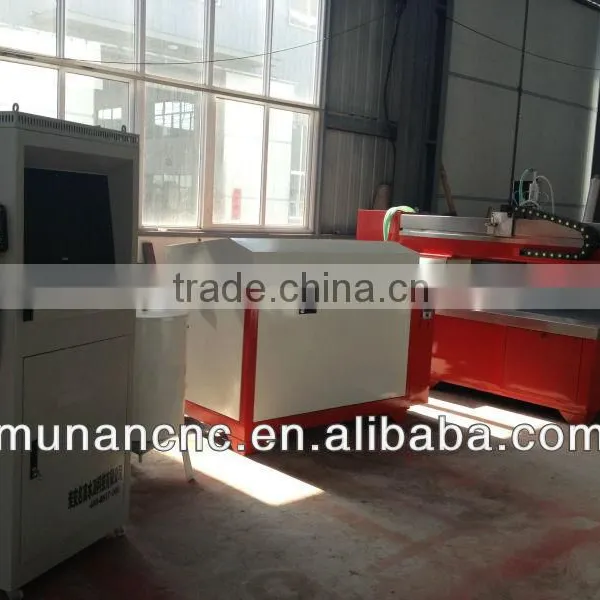

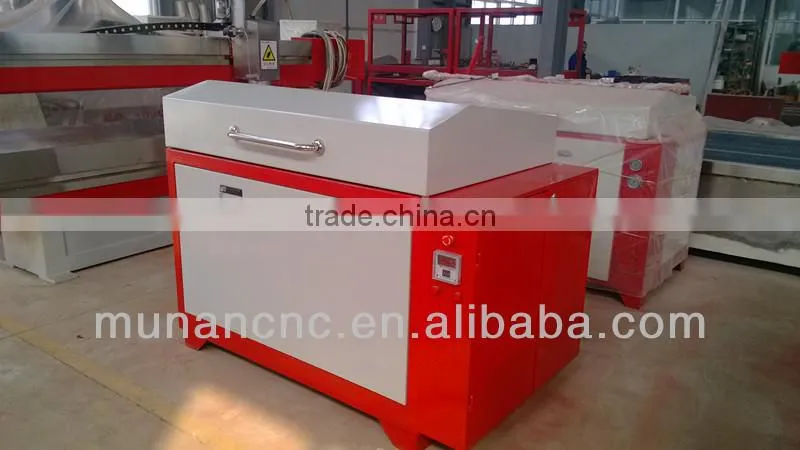

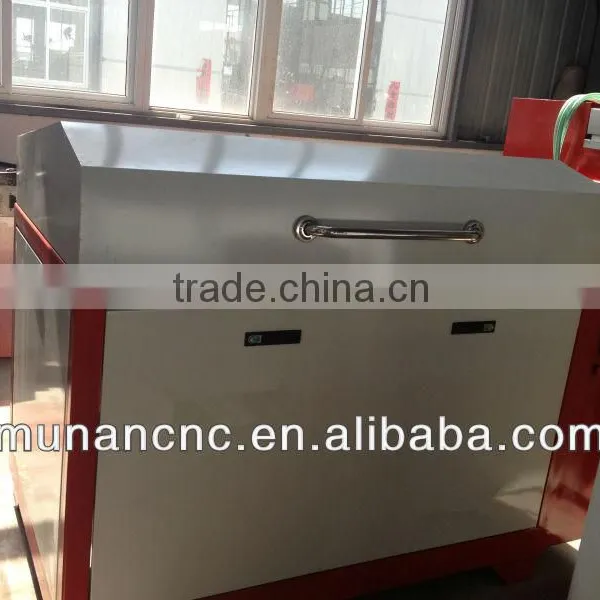

2) Intensifier pump
The intensifier pump is adopt American technology, And the main parts are original parts from American .
Ultra high pressure system |
MN-4035 |
MN-4238 |
|
Overall dimension/m |
1.7*1.0*1.4 |
1.8*1.0*1.5 |
|
Supercharge ratio |
20:1 |
||
Continuously working pressure |
350MPa/ 50K Psi |
380MPa/ 55K Psi |
|
Max. pressure |
400MPa/ 58K Psi |
420MPa/ 60K Psi |
|
Max. Water yield |
3.7L/min |
||
Water supply pressure |
≥0.2MPa |
||
Oil pump pressure |
31.5MPa |
||
Hydraulic oil tank capacity |
320L |
||
Max diameter of nozzles gemstone |
0.35mm |
||
Power |
37kw |
||
Power supply |
220V/380V/415V, 50/60Hz |
||

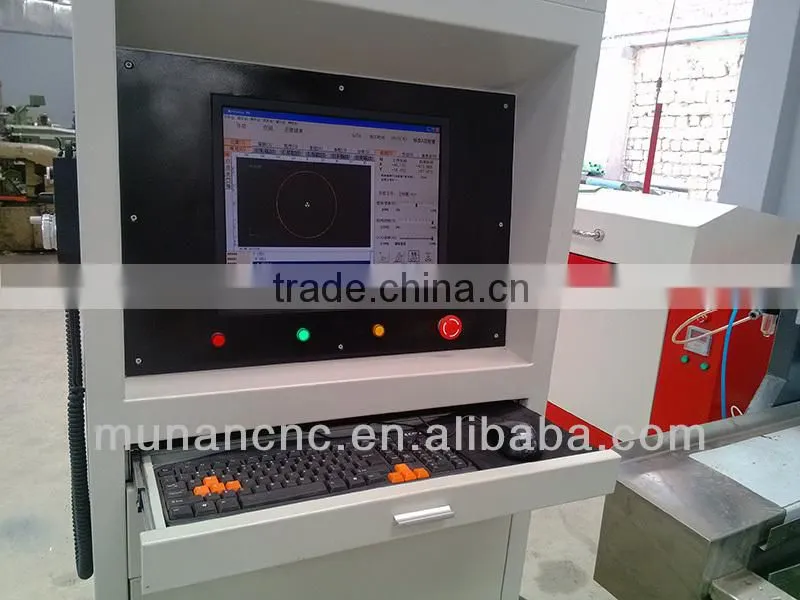

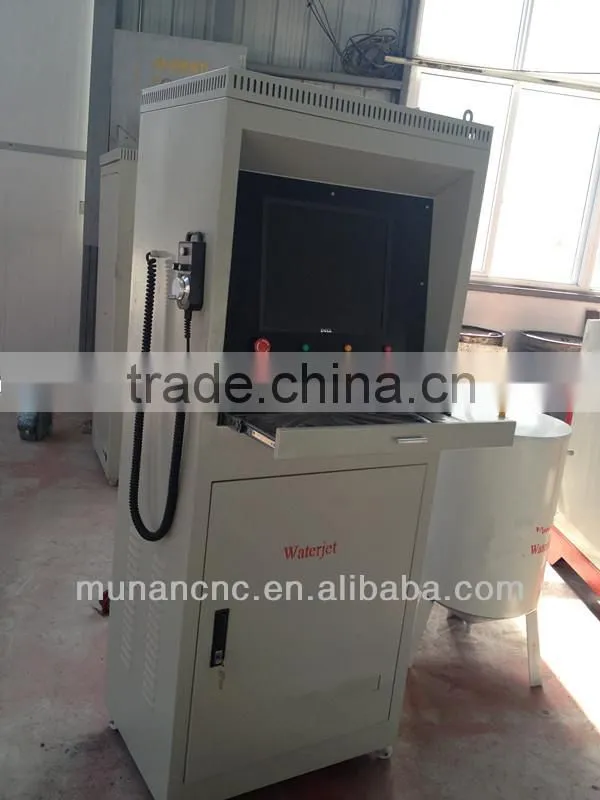

3) Controller
For the controller,we adopt stable waterjet cutting control system and professional software

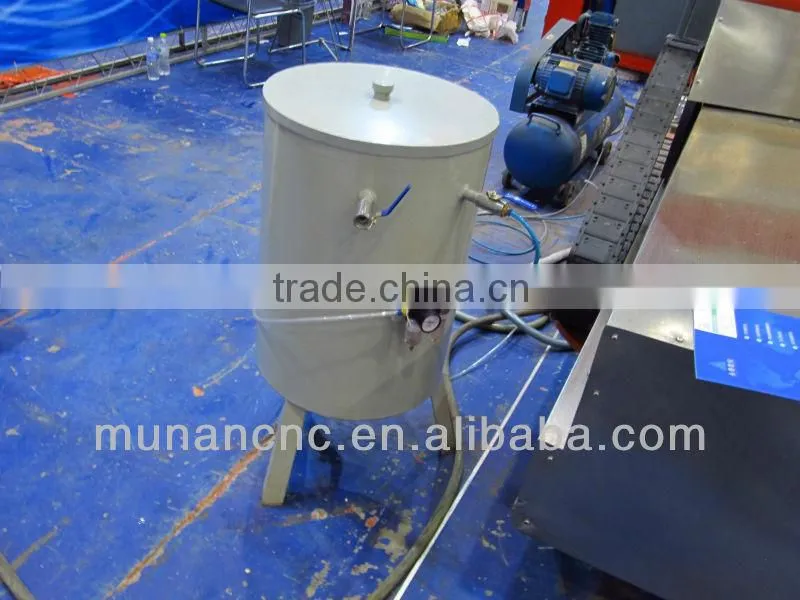

4) Automatic abrasive feeding system
The function of sand storage and the sand cup in the CNC reducing the load of the machine
beam. The operation is simple and convenient.

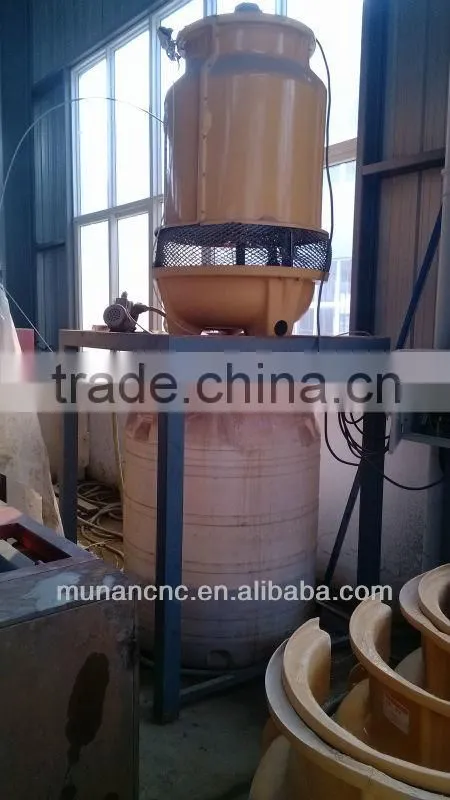

5) Classical cooling tower-low cost and good function.

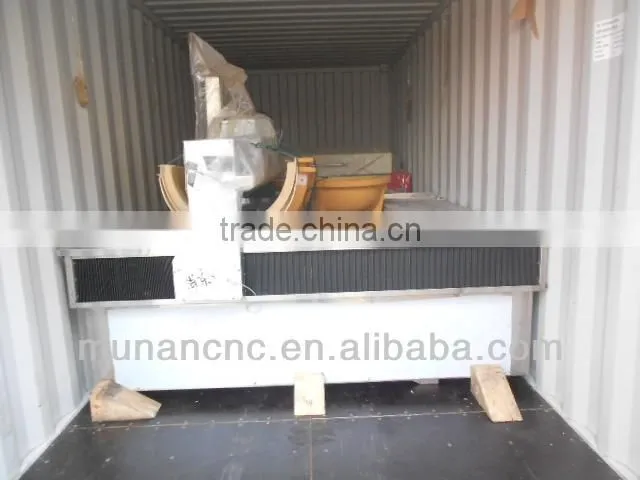

Packing photos:
Installation and training:

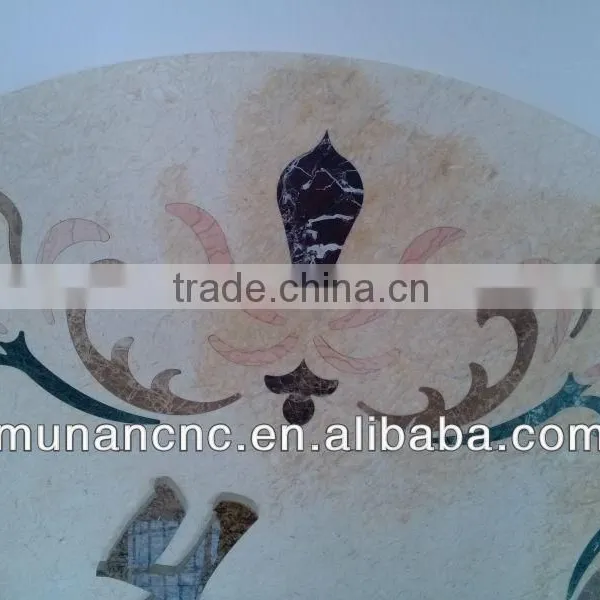

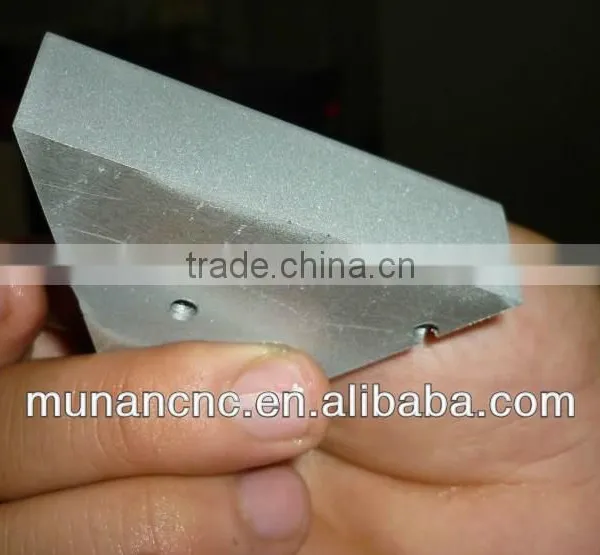

Cutting samples:
