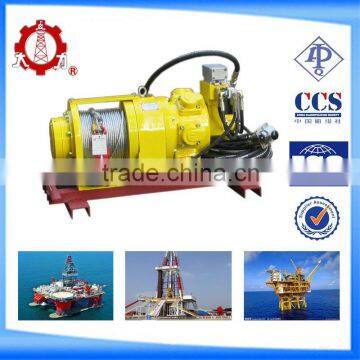

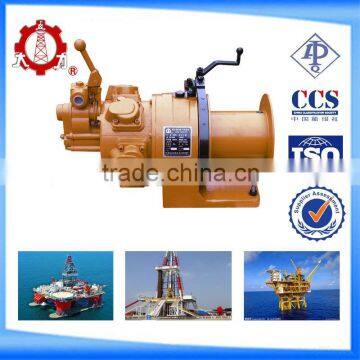

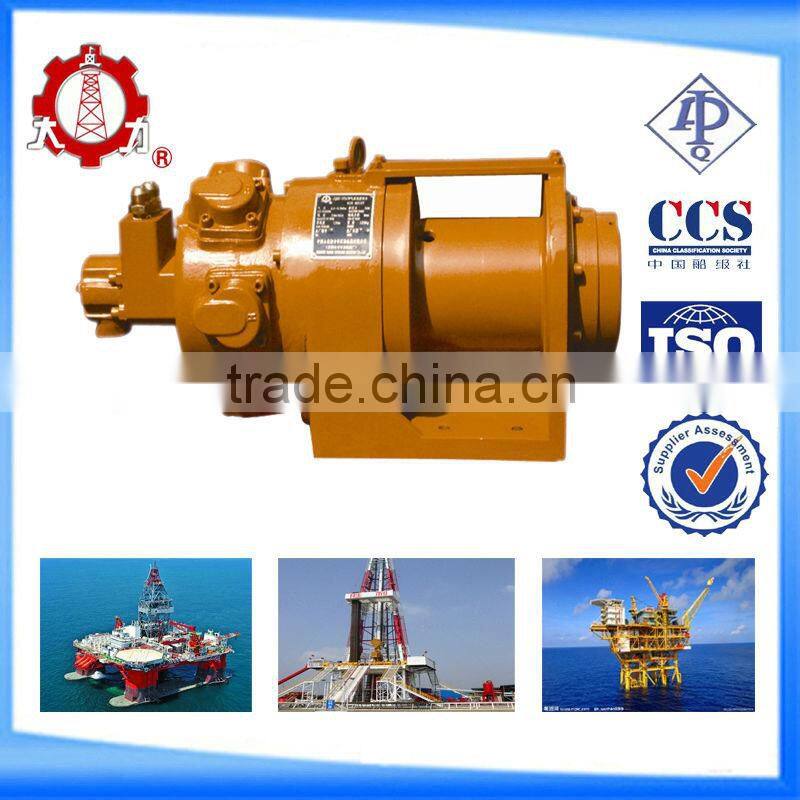

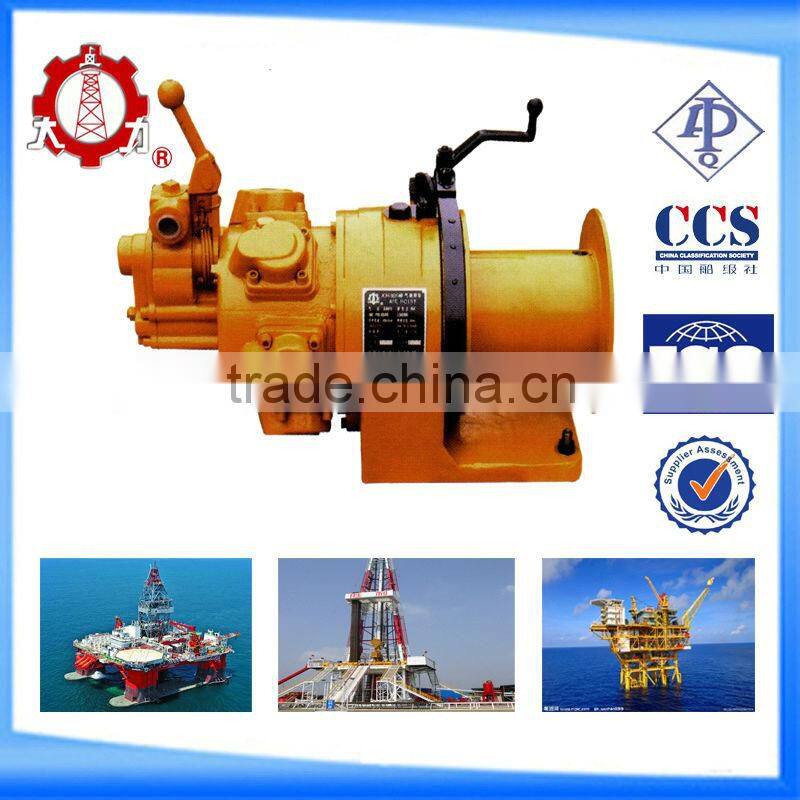

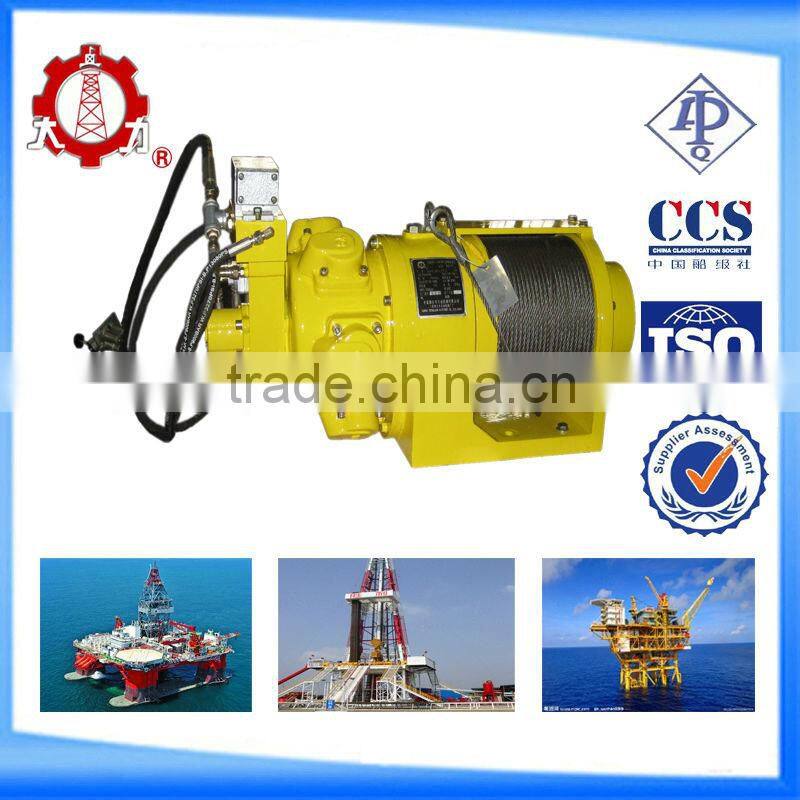

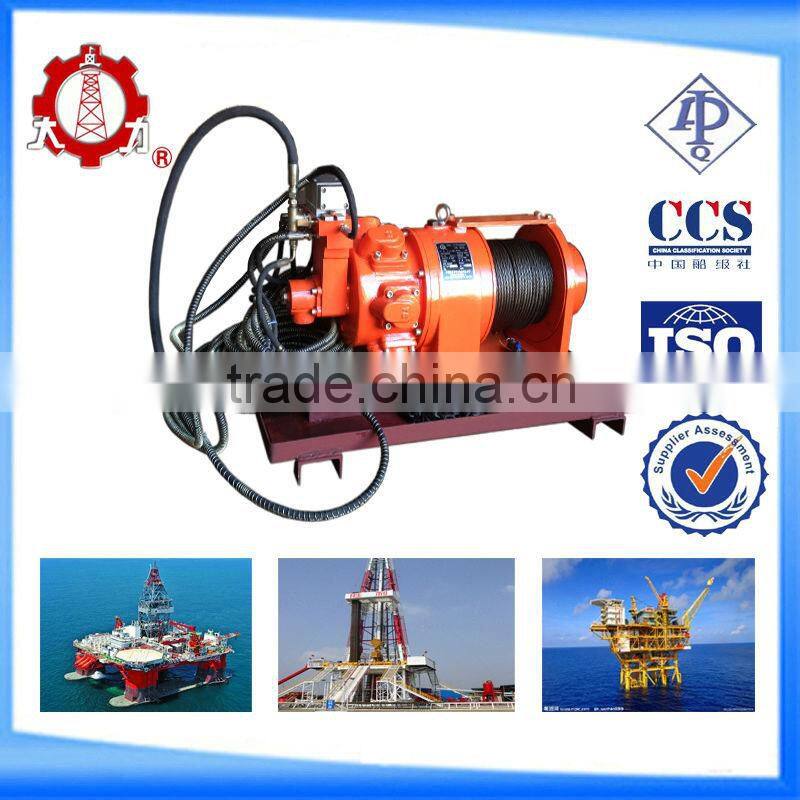

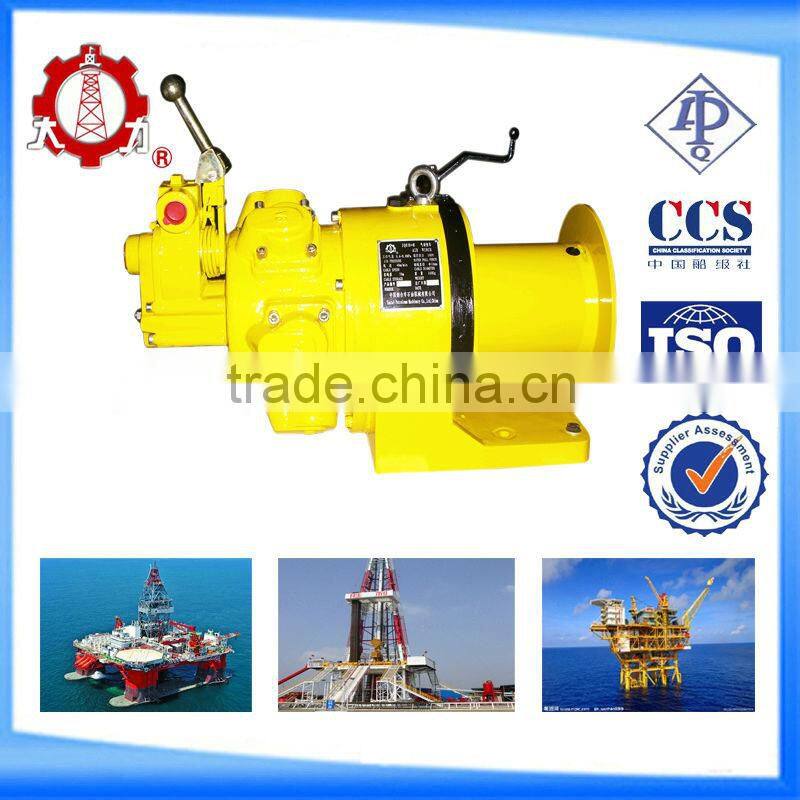

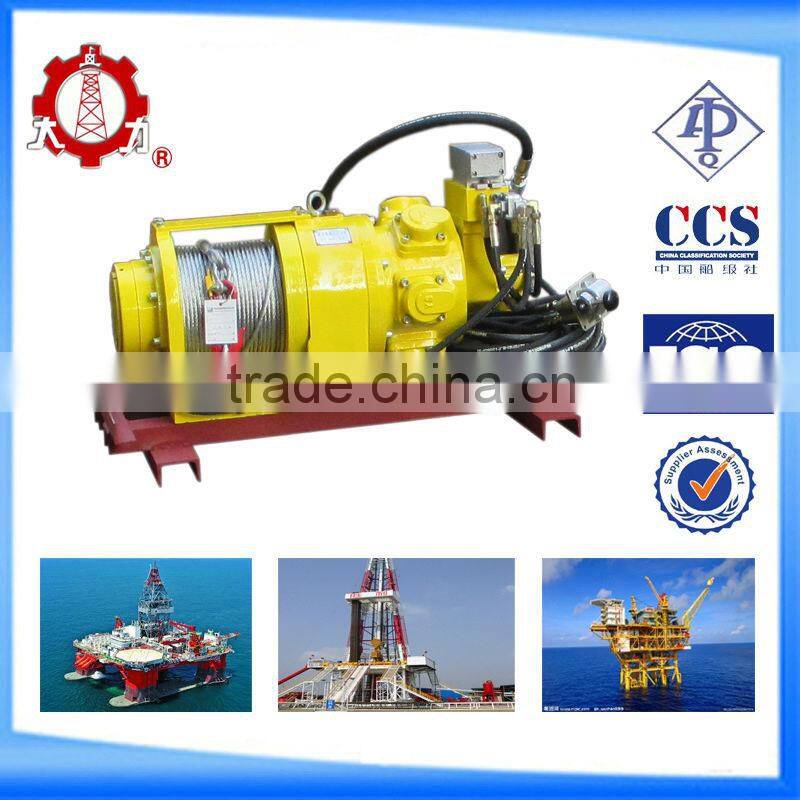

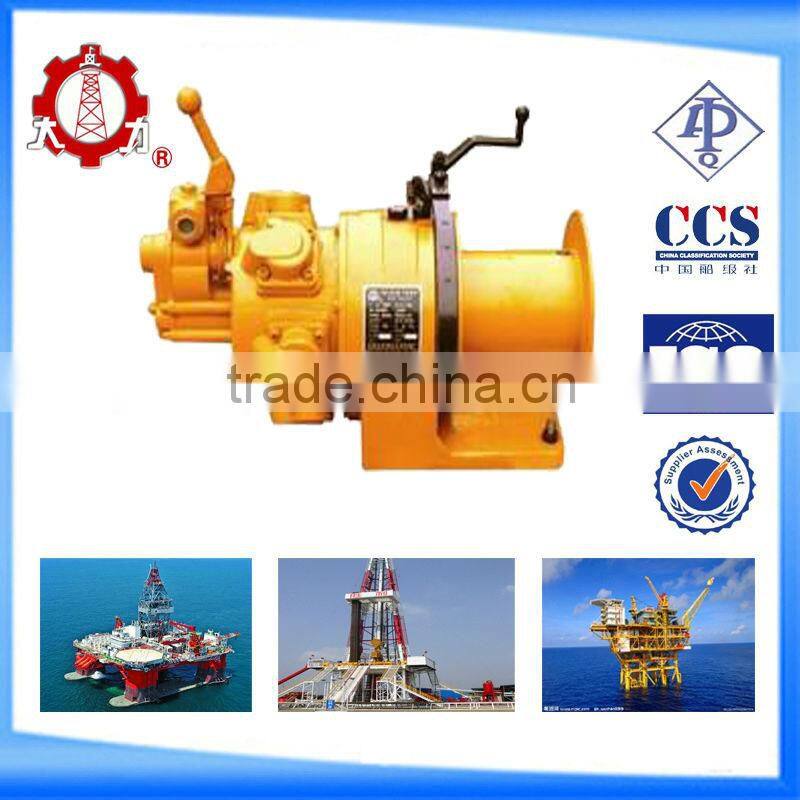

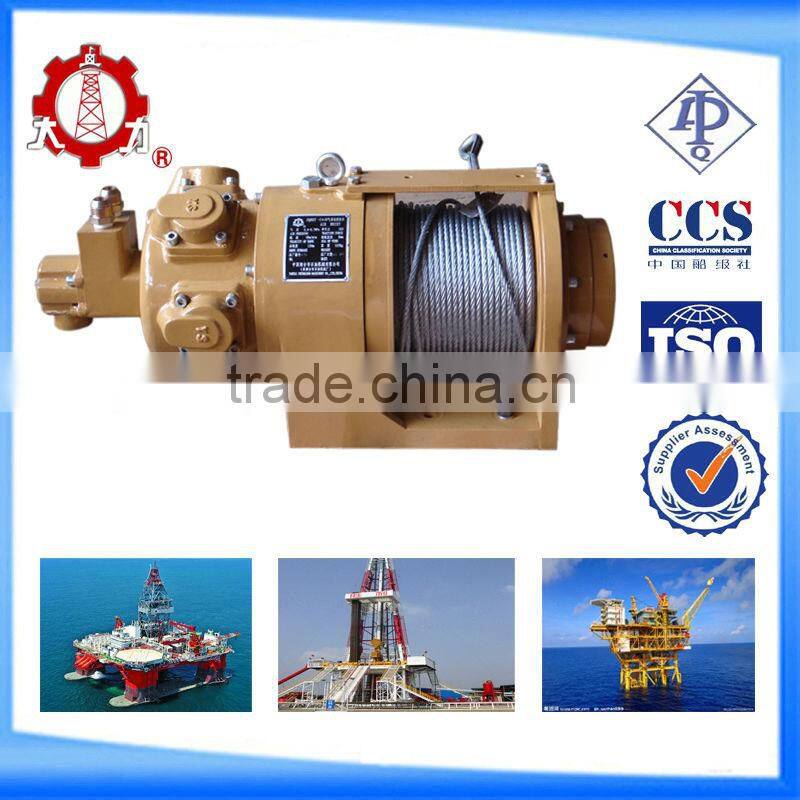

0.5T Air Winch protable air winch
- 100 Set / Sets per Month
- Qingdao/Yantai
- T/T Credit Card PayPal
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Shandong, China | Brand Name: | DA LI | Model Number: | JQHS 5*24series |
Power Source: | Pneumatic | Application: | Other, mine,oilwell,construction,engineer,drilling platform,marines,inland | Capacity: | 0.5T |
Product Description
Working Principle:
Air Winches are a kind of manual operated single drum type
air winch.Its adopt compressed air as its power to drive air motor to drive
air motor, driving drum via two grades gears ( to reduce transmitting speed
and enlarge torque) so as to lift and drag heavy cargo. Considering security,
these winches are equipped with hand brake, foot brake, air friction plate
brake or air cylinder brake. These winches are widely used for drilling, marines,
minings, engineering sites, etc to pull heavy cargo.
Main Features:
1. Equipped with cylinder air brake , which enables the winch automatically in brake when stops.
2. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
3. Compact in size, light weight, portable to move and easy to install.
4. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
6. Reliable operation with little noise with muffler.
7. Low maintenance relieves your anxiety and assures you to use it freely.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
Items | Parameters | Measurement Unit |
Rated Working Pressure | 0.6-0.7 | Mpa |
Rated Pull Force | 10 | KN |
Rated Cable Speed | 24 | m/min |
Piston Air Motor Model | TMH4 | ----- |
Piston Air Motor Rated Power | 4 | kW |
Piston Air Motor Air Consumption | 130 | L/S |
Drum Diameter | 175 | mm |
Drum Width | 198 | mm |
Drum Wheel Diameter | 290 | mm |
Cable Diameter | 8 | mm |
Cable Storage | 80 | m |
Air Inlet Diameter | 1 | in |
Configuration | 722*342*530 | mm |
Weight | 160 | KG |
Established in 1970, Yantai Petroleum Machinery Co., Ltd is High and New-tech Enterprise in Shandong Province, with an area of 39,300 square kilometers, capital assets up to RMB403, 638,000.00, and 320 staff in all, of which 89 are technicians.
Our main products cover: JQH Air Winches, JQHSY Remote-control Air Winches, TMY,TMW,TMH series Air Motors, Drilling Rod Kelly Spinners and Tap Kelly Spinners, and pre-supply oil pumps, of over 10 series and totally more than 30 varieties, which are all widely used in oilfields, mining, shipbuilding, engineering machinery, combustion engine, etc.
Our company is equipped with first-rate automatic Performance-testing System, gaining the Certificate of ISO: 9001-2008, American Petroleum Institute (API), CCS certification and other security certificates. Thanks to our 40 years matured techniques, advanced equipment, precise testing instruments and modern management system, we possess good reputation from domestic and abroad.
