ⅠWorking Principle

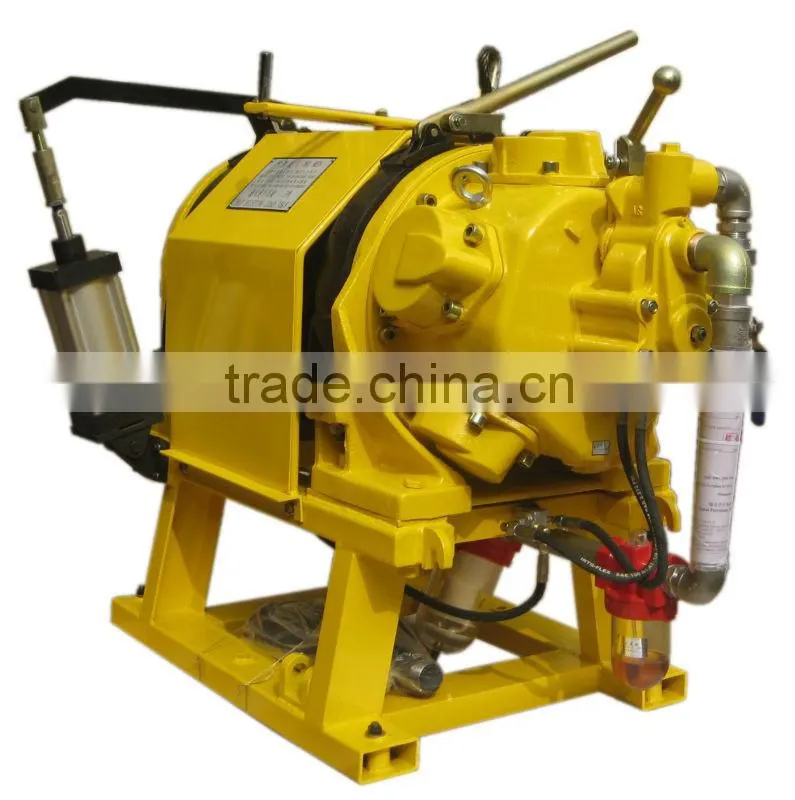

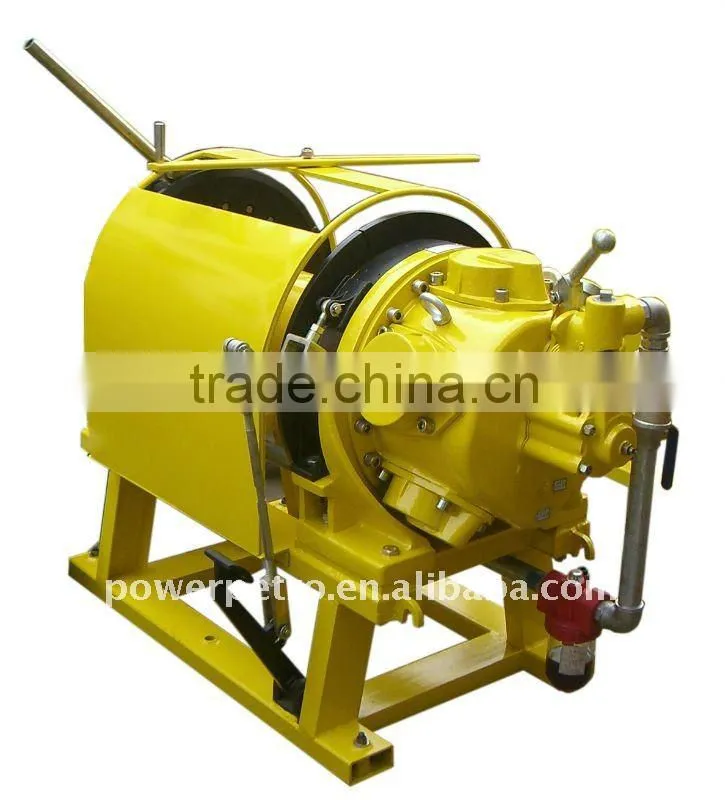

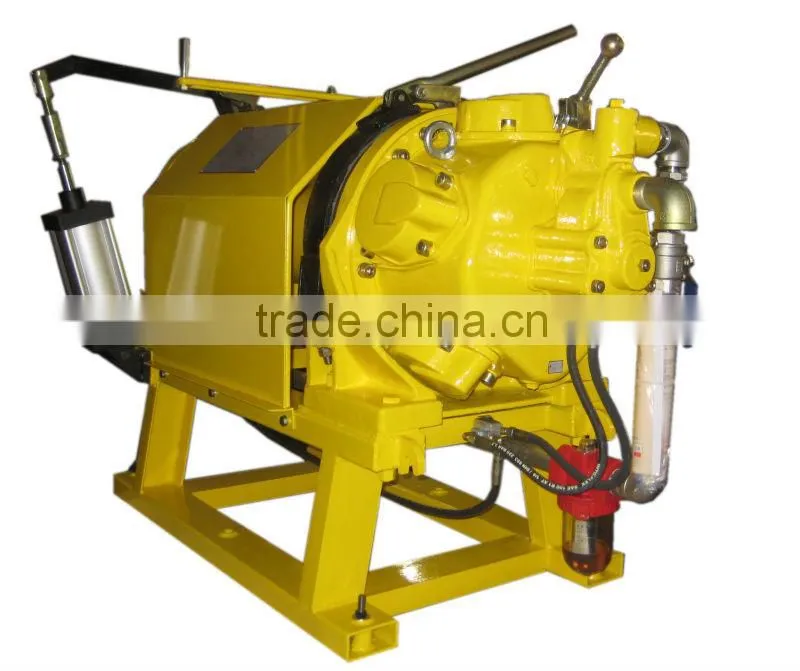

JQHSD-50*12 anti-low-temperature double-braking air winch is a kind of manual operated single drum type air winch. It adopts compressed air as power to drive the TMH17 Piston Air Motor,by operating manule diversion valve on the motor,driving drum via two grades gears(to reduce transmitting speed and enlarge torque)so as to lift and drag heavy cargoes.As well, the winch can perform hoisting,lowering and stopping actions to the wire rope.
ⅡSecurity

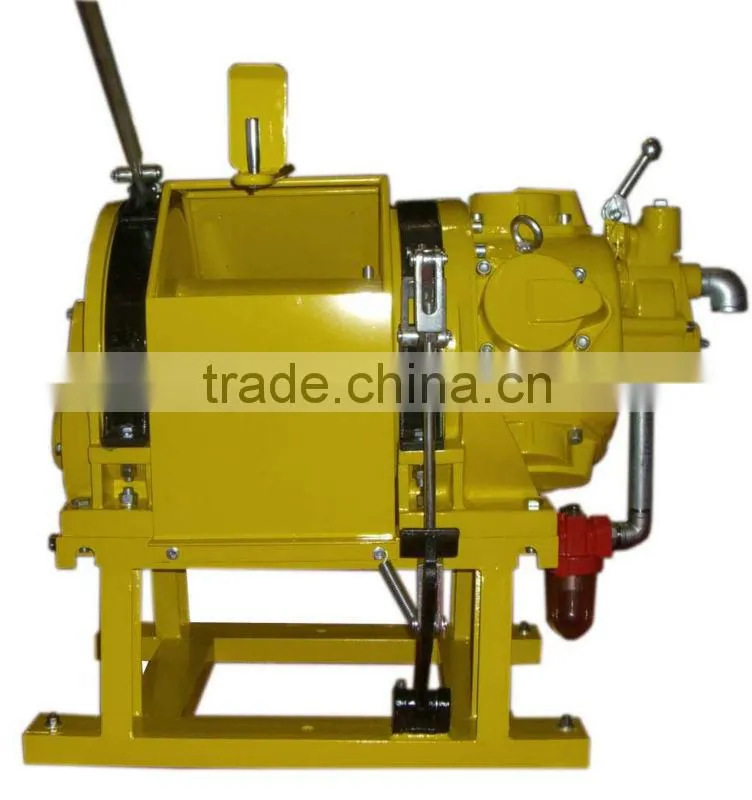

In order to ensure the security,it is sepecially designed with hand and air cylinder brake for fear of unexpected accidents. The Double-braking Air Winch is competent to work under any extremly conditions, with 5T Full Force, enabling starting with load for the high starting torque.
Ⅲ Application Places
This winch is widely used for drilling platform, marines, minings, engineering sites, platform of oilfield off-sea and inland etc.to drag and pull heavy cargoes.
Why choose us:
1.Use temperature -45°C~-55°C and storage temperature -60°C~-60°C
2. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.
3. Compact in size, light weight, portable to move and easy to install.
4. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
5. Reliable operation with little noise with muffler.
6. Low maintenance relieves your anxiety and assures you to use it freely.
7. The Normal Pull Force can be tailor-made to your requirement.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
9. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
Technical Parameters:
Item |
Parameter |
Unit |
|
model |
JQHSD-50*12 Anti-low-temperature Double Braking Air Winch
|
-- |
|
Rated Working Pressure |
0.6-0.8 |
Mpa |
|
Rated Traction Force |
50 |
KN |
|
Wire Rope Velocity |
12 |
M/MIN |
|
|
Pneumatic Piston Motor
|
Model |
TMH17 |
-- |
Rated Power |
17 |
Kw |
|
Cylinder Number |
5 |
Pcs |
|
Cylinder Diameter |
130 |
mm |
|
|
Air Consumption |
247 |
L/S |
|
|
Drum
|
Number |
1 |
PCS |
Diameter |
222 |
mm |
|
Width |
335 |
mm |
|
Wheel Rim Diameter |
465 |
mm |
|
Rope Content |
120 |
m |
|
Wire Rope Diameter |
15.875 |
mm |
|
Air Inlet Diameter |
31.75 |
mm |
|
|
Dimension (Length* Width* Height) |
1200*920*989 |
mm |
|
Weight(KGS) |
498 |
KG |
|
