Plasma Cutting Steel Plate

Name: Plasma Cutting Steel Plate
Brand: MUNAN CNC
Availability: InStock

FOB Price

US$ 3,000 - 7,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	MUNAN CNC	Model Number	MN-6090/1325/1530
Voltage	380V/220V	Rated Power	8.5kw
Dimension(LWH)	3500x2000x1700mm	Weight	1200kgs
Certification	CE ISO SGS	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

plasma cutting steel plate
1.Start control system
2.AHTC system
3.Timely service
4

plasma cutting steel plate

keywords of this machine: cnc plasma cutting machine, metal cutting machine, top-sale plasma cutting machine, cnc plasma cutter, cnc cutting machine, cnc cutter, plasma cutter.

Features of Plasma Cutting Machine :

1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.

2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.

3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.

4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.

5. Cutting speed, high accuracy and low cost.

6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.

7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.

8. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.

Application materials of Plasma Cutting Machine :

For iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates.

Components of the equipment of Plasma Cutting Machine

A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.

B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.

C : Torch assembly including :Two cutting torches

D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.

E: Control system: Micro EDGE CNC system and Japan FUJI all-digital AC servo driving system

F: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.

G: Plasma power: USA Hypertherm MAX200

H: Software: Australia FASTCAM Nesting software.

I: Height adjustment: Hypertherm.

Parameters of Plasma Cutting Machine :

Name	parameters	unit
Processing area	20003000/15003000 /13002500/600900	mm
Processing materials	Iron, aluminum, galvanized sheet, white sheet, titanium plate
Processing thickness	0.5-15	mm
Cutting speed	0-8000	mm/min
Power	8.5	KW
Input voltage	3-phase 380 optional	V
Power frequency	50	HZ
Plasma current	60 or 100	A
File transfer mode	USB interface
work	Non-contact arc

CNC plasma cutting Machine parts:

Rotary axis device with the cnc plasma cutting machine.

cnc plasma cutting machine on the Exhibition:

plasma cutting machine blade table

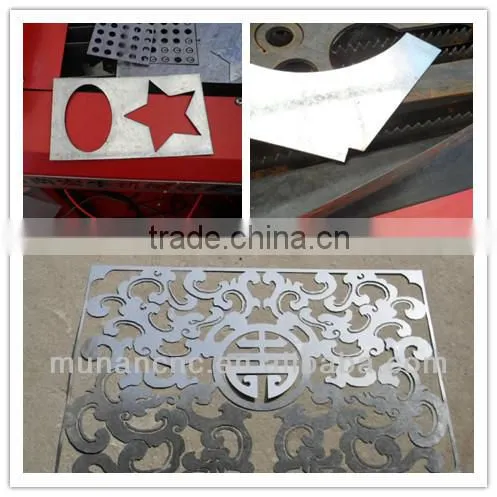

plasma cutting machine cutting Samples:

Packing:

FAQS:

1,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

2,How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to

clients specific requirements, it would be 15 to 30 days.

3,Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4,How is the packing?

Waterproof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container

Why MUNAN CNC?

We provide you a solution and not just a machine.

Well configured machine using hardware that makes the machine efficient, accurate, and reliable.

Feel Confident a company that has expert staffs with over 10 years of CNC building experience.

Get the support that you deserve from our confident well trained staff members.

MUNAN CNC prides itself in having the patience and the ability to provide knowledge and service.

Can you recommend a plasma machine to me,thanks?

Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
