Small Cnc Router Machine 3030C With Water Sink

FOB Price

US$ 1,500 - 2,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	MUNAN
Model Number	MN-3030		After-sales Service Provided	Engineers available to service machinery overseas

small cnc router machine 3030C with water sink
1. 300x300mm
2. 800w spindle motor
3. T-slot table
4. ballscrew drive

small cnc router machine 3030C with water sink

Features:

1. The machine body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.

3. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

4. Good three-axis and dust-proof structure to ensure that the machines longer service life.

5. High-performance driven motor to ensure that the machines high speed and accurancy

6. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred

7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing

8. Compatility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software

TECHNHICAL DATA

NO.	Discription	Parameter
1	X,Y,Z Working Area	300x300x80mm
2	Table Size	320X320mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z repositioning Positioning Accuracy	±0.05mm
5	Lathe Structure	Cast Aluminum/iron
6	X, Y Structure	Shaft Linear Bearings and Ball Screw
7	Z Structure	Ball Screw
8	Max.Consume power	0.8-3.0Kw
9	Max.Speed	0-6000mm/min
10	Max.Working Speed	0-3000mm/min
11	Spindle Power Motor	0.8/1.5/2.2Kw water-coolant spindle
12	Spindle Speed	0-24000RPM
13	Working Mode	Stepper
14	Working Voltage	AC110-220V/50/60Hz
15	Command	G code, uoo, mmg, *plt
16	Operating System	DSP System/NC-studio
17	Interface	USB
18	Flash Memory	128M
19	Collet	ER11-16
20	X,Y Working Delicacy	<0.01mm
21	Software	Type3 software, Wentai software Artcam software
22	Running circumstance	Temperature: 0°C~45°C Relative humidity: 30%~75%
22	Packing Size	750X750X750mm
23	Net Weight	60KG
24	Gross Weight	80KG
All parameters above subject to change without prior notice

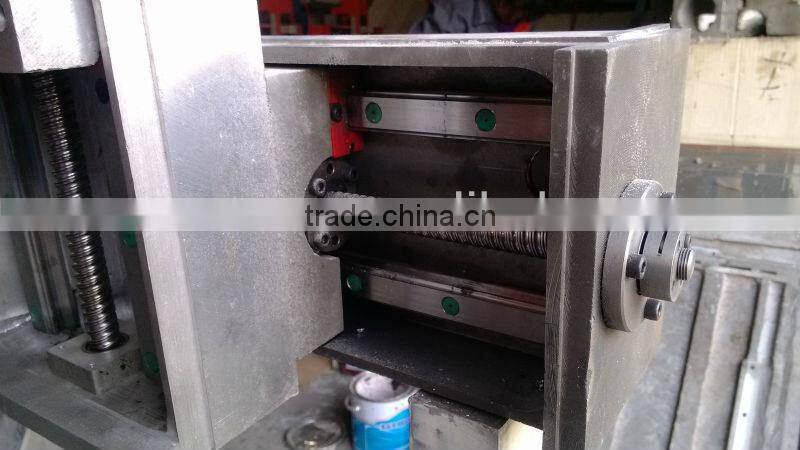

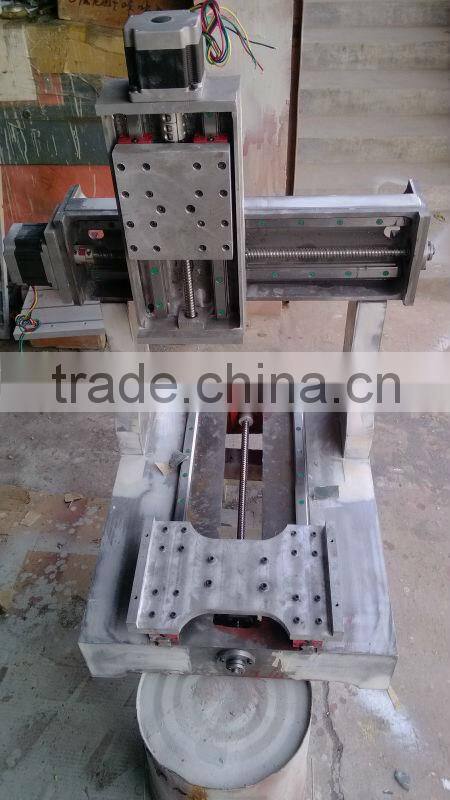

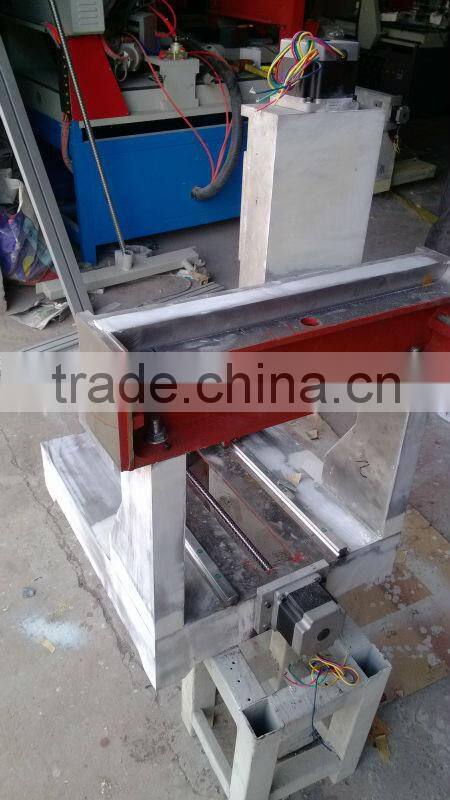

Assemble pictures:

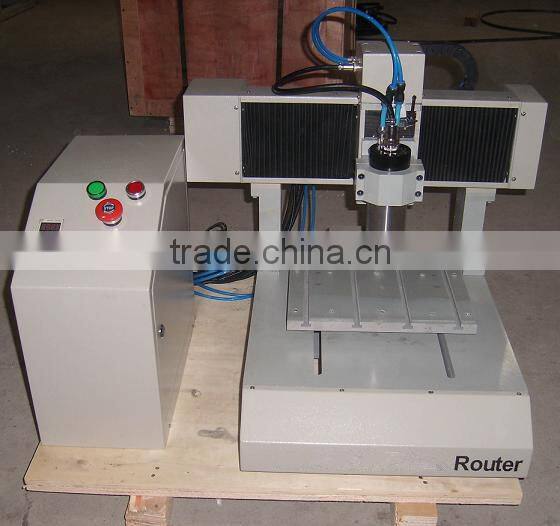

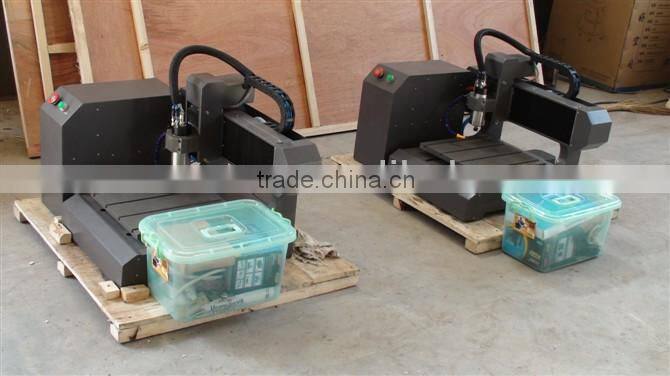

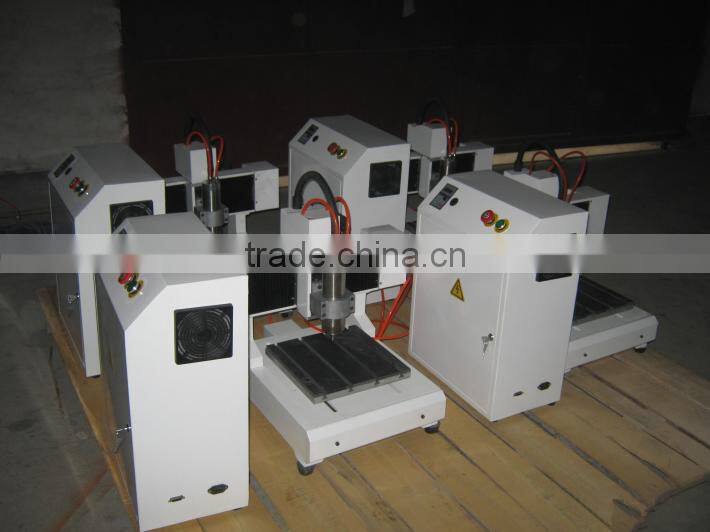

Machine pictures:

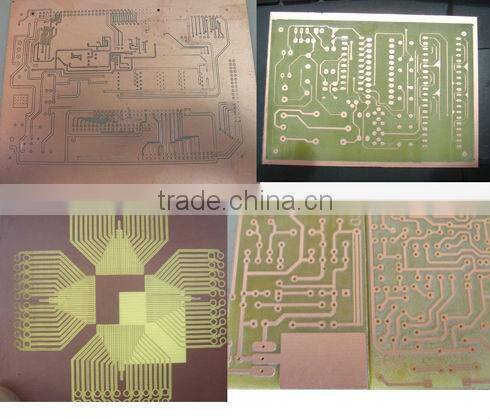

Samples:
