Specifications
1.Simple and reliable2..Awarded by ISO,API etc..
3. Easy to stall and high efficiency

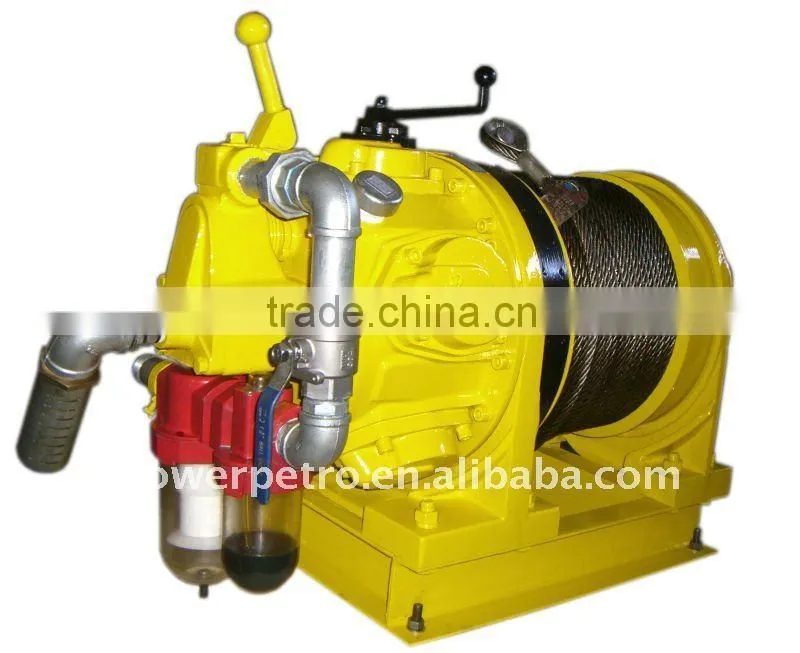

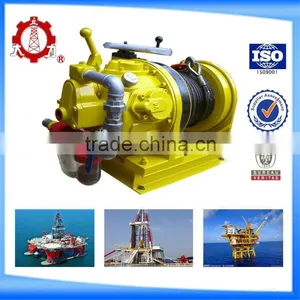

2 Ton Pneumatic Air Winch for Mine
JQHSB20*30 Air Winch adopts compressed air as power to drive the TMH17 Piston Air Motor, by operating manule diversion valve on the motor, the winch can perform hoisting,lowering and stopping actions to the wire rope. For the sake of security,it is designed with hand brake for fear of unecpected accidents.The Double-braking Air Winch is competent to work under any extremly cnditions it is fit for hauling,lifting and other work in construction enigneering sites,platforms of oilfields off –sea and inland etc.
Specifications:
1. Compact in size, light in weight, portable to move and easy to install;
2. Reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields;
7. The Normal Pull Force can be tailor-made to your requirement.
Technical Parameters:
| Model | JQH-20*30 | |
| Pressure of Air Compressor(MPA) | 0.6-0.8 | |
| Rated Traction Force(KN) | 20 | |
| Wire Rope Velocity(M/MIN) | 30 | |
| Pneumatic Motor | Rated Power(KW) | 12 |
| Cylinder Number(PCS) | 5 | |
| Cylinder Diameter(MM) | 108 | |
| Air Consumption(L/S) | 101.5 | |
| Drum | Number(PCS) | 1 |
| Diamter(MM) | 200 | |
| Width(MM) | 219 | |
| Wheel Rim Diameter(MM) | 400 | |
| Rope Content(M) | 90 | |
| Wire Rope Diameter(MM) | 14 | |
| Inlet Diameter(MM) | 32 | |
| Dimension | Length(MM) | 940 |
| Width(MM) | 410 | |
| Height(MM) | 735 | |
| Weight(KGS) | 310 | |
