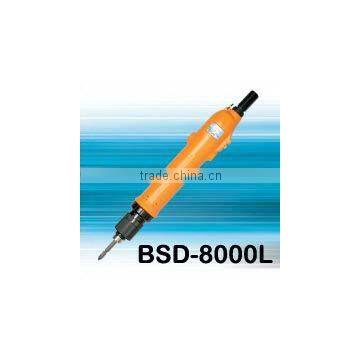

BSD-8000L High Torque Compact DC Automatic Electric Screwdriver( screw driver for production line) assembly tools

High Torque Compact DC Automatic Electric Screwdriver( screw driver for assembly, metal assembly screwdriver)

American and Japanese high-tech DC high performance servo-motors are applied with super strong magnetic iron. The motor starts up quickly with a small current. With heat radiation fan and ventilation holes, the motor heat is disseminated quickly. It can continuously operate at low temperature rise. Gear assembly and clutch are manufactured with alloy steel materials imported from Japan. They have low torque attenuation, high stability and long lifetime.

Specifications:

1) Torque: 5-18kgf.cm

2) Unloaded rotation speed: 1,000rpm

3) Screw diameter a) Machine screw: 2.0 - 3.5mm b) Tapping screw: 2.0 - 3.0mm

4) Weight: 600g

5) Length: 260mm

6) Suspension rack model: KH-3

7) Torque fixing ring model: KC-2

8) Bit type: a) M6  ø5mm b) HEX 5mm c) HEX 6.35mm

9) The power controller model: BSP-32HL-60W DC 32V

Details:

1. all parts with one packaging

2.when combination

3.the right side

4.the other side

5. New design

6.0-8 stepless adjustment

7.fasten screws

8. may hang it up with spring, if convenient for you

9. the power controller, two kinds of voltage shift by the HI/LO switch
