KILEWS DC High Torque Electric Screwdrivers SKD-BE800

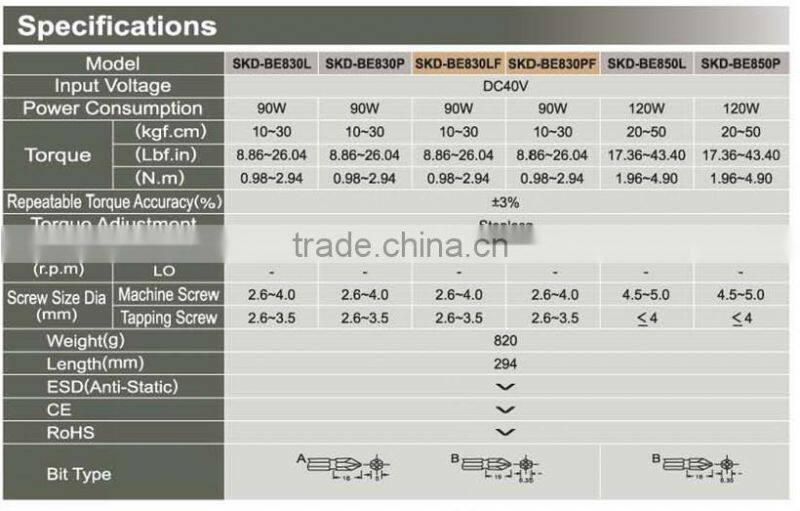

Specifications

Kilews SKD-BE830, BE850
Compact of LED Screw Counter & Brushless Electric Screwdriver
Can control numbers of fastening screws

Brushless Electric Screwdriver with counter SKD-BE830, BE850

-Non-Carbon-Brush motor, the perfect combination between screw counter and electric screwdriver, and most fit for operation in clean-room circumstance.

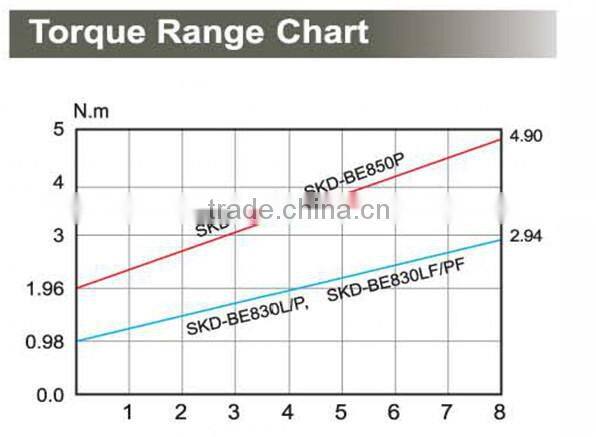

-Torque range from 10-50 kgf.cm is medium and small-sized screwdrivers. Widespread and extensively applied by users.

-SKD-BE series is one compact of LED counter and electric screwdriver. Two color housing, easy to operate, suitably used on production line and effectively control numbers of fastening screws and operation quality.

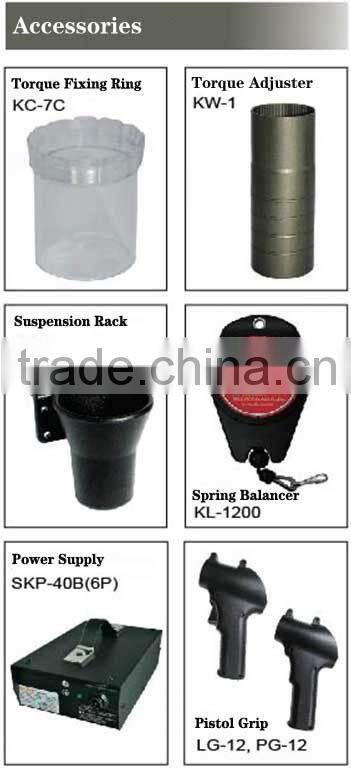

-SKP-32B-60W, power controller, small size and easy of operation.

-Easy to set up, complete function, user can set up this counter according to needs of work and leave system automatically to inspect the precision of fastening screws.

-This system can set up Effective Counter Number (SC), Automatic Zero (At), Start Detect (Lt), Stop Time (Ht), Double Confirm Time after Fastening (LL), Waiting Time Between Screwdrivers. Professional designs for the needs of users. -Automatic Learning can complete necessary time from start to fasten, let user confirm whether it is an ideal fastening value.

-Signal output by OUTPUT OKALL/N.G. in the screwdrivers, open collector. The user can select another wire to connect PLC if necessary.

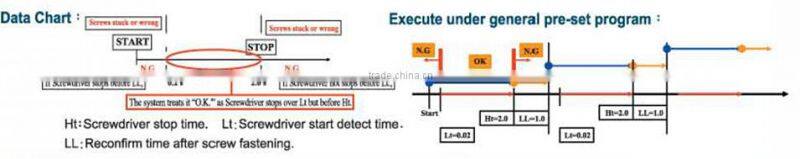

-If start time doesn’t stop as over Ht time, that means stripped over wrong screw; If start time stops before Lt time, that means screw stuck or wrong. This function can effectively determine whether screw fastening is right or wrong.

-After setting up screw fastening, shut-off can be confirmed just one time during pre-set time.
