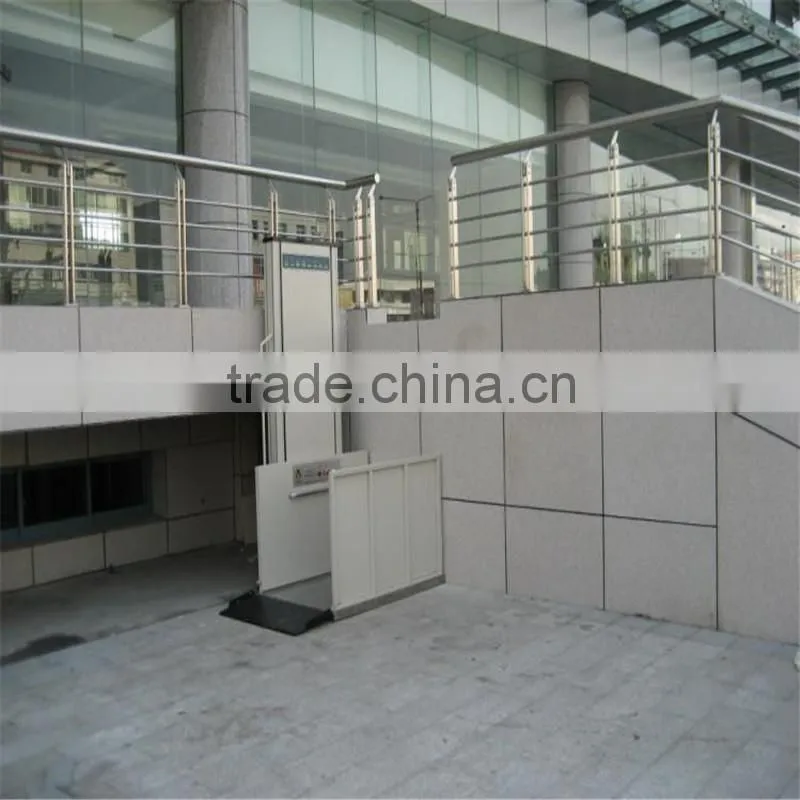

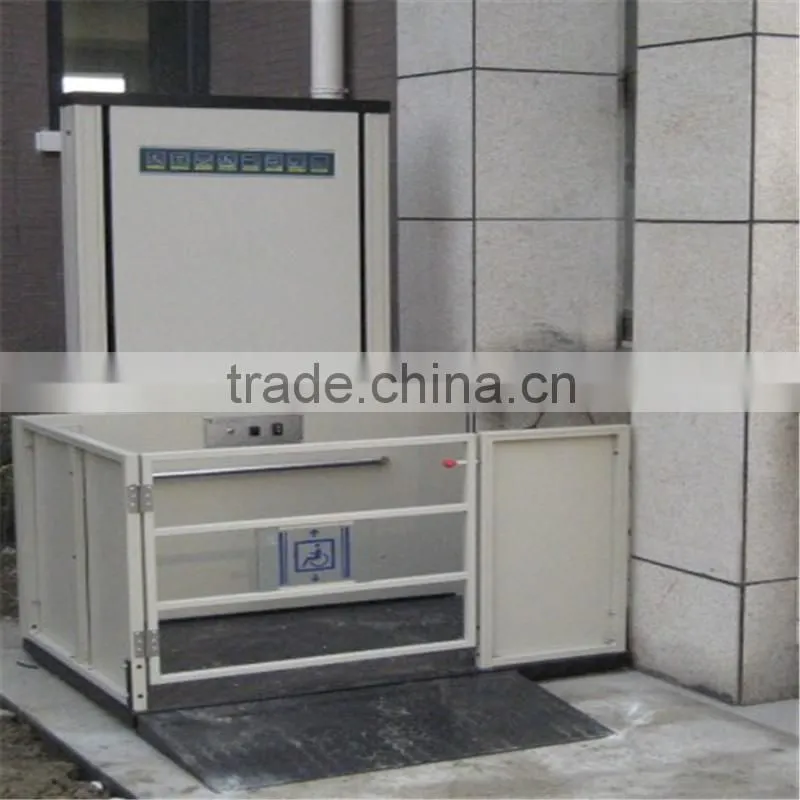

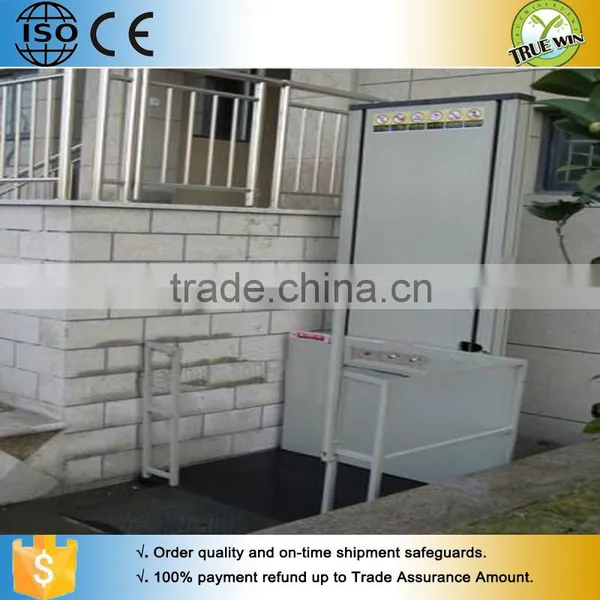

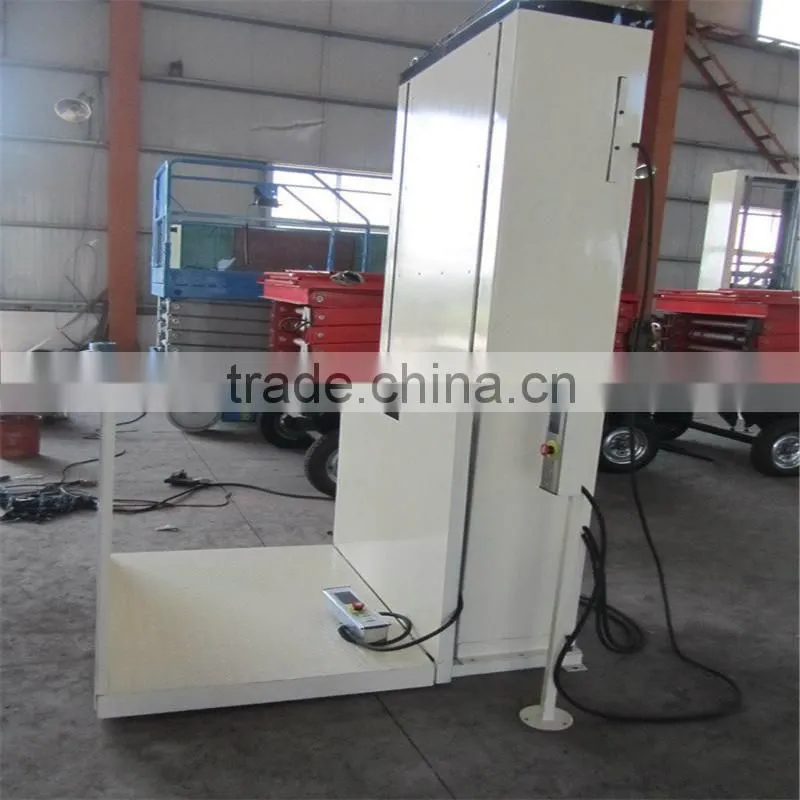

3.5m vertical platform lifts home

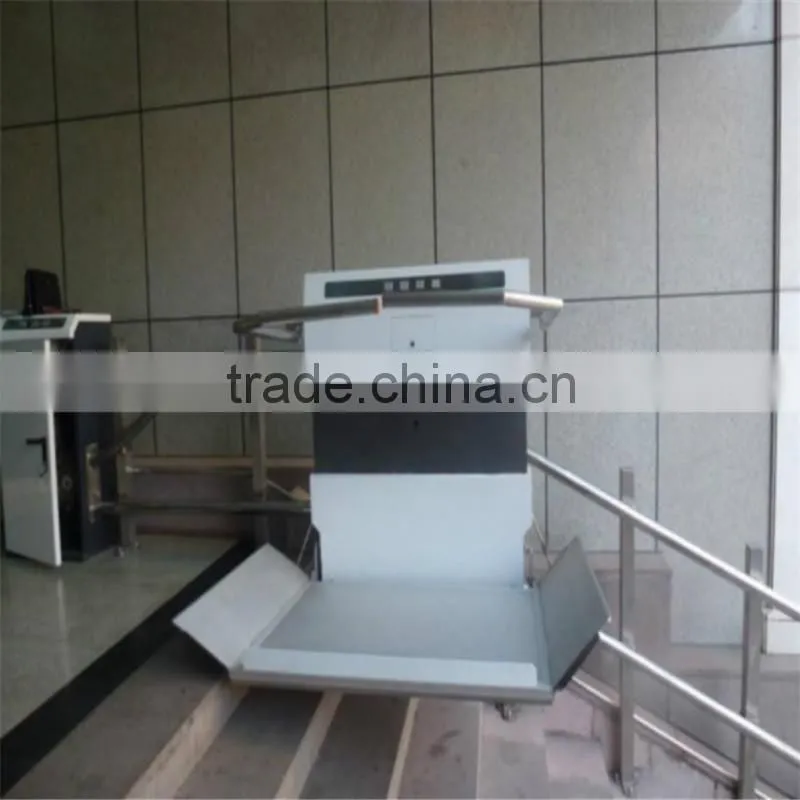

So-called barrier-free lift platform, mainly composed of rail and lifting bedplate, similar to a simple small elevator. Orbit is set on the wall of the tunnel entrance, as the stair slope downwards, until inside the tunnel. The lift platform when not in use can be folded placed against the wall, it won't take up the entrance to a channel space. A wheelchair's disabled when use, the wheelchair four wheels can be fixed on the counter, press the switch can control the lift platform into the underground passage, after safe and convenient.
Name |
No. |
Lift capacity (kg) |
Materials |
|
Wheel-chair vertical lift |
LRL0.25-N |
250 |
Stainless steel |
|
Platform size |
1300mm(L)* 1000mm(W) |
|||
Dimension |
1300mm(L)*1450mm(W)* [Travel height +700mm(H)] |
|||
Max Platform Height |
N(mm) |
|||
Min Platform height |
60mm |
|||
Configuration |
Open through or front and side entrances |
|||
Speed |
60mm/s |
|||
Load capacity |
250KG |
|||
Control voltage |
24V/DC |
|||
Power Output |
0.75kw-2.2kw |
|||
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|||
Drive System |
Hydraulic |
|||
Control Mode |
Inching Switch or Automatic |
|||
Drive Control |
Self-resetting system |
|||
Overload |
Protection Over current relay |
|||
Material of Platform |
Stainless steel |
|||
Guard panel & drive cabinet (framework) |
304 stainless steel
|
|||
Automatical ramp |
yes |
|||
Column switch |
Two column switch, one is on the ground floor, one on the first floor |
|||
Operation Panel |
Polished Stainless steel(up down and Emergency drop valve) |
|||
Safety Wane Working Range |
75° |
|||
Working Condition |
Both indoors and outdoors |
|||
Working temperature |
From -10°~60°C |
|||
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|||
|
Control Device
|
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|||
|
Emergency Stop
|
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|||
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
||
Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation. |
|||
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|||
Auto-flap |
Turn up after lifting |
|||
Safety protection device:
(1)Emergency Stop:The lifting and lowering process can be stopped immediately by pressing the emergency button.
(2)Safety device:
Safety Interlock:Lock the platform when it is out of control
(3)Safety Sensor:The operation must be stopped immediately the safety edge meets obstacles during operation.
(4)Emergency lowering:The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
(5)Auto-flap:Turn up after lifting]
(6)Safety Interlocking: The lifting platform shall not run if operates improperly.
