2015 Hot Sale Stair Lift for Disabled/barrier Free Stair Climbing Lift

Name

No.

Lift capacity (kg)

Materials

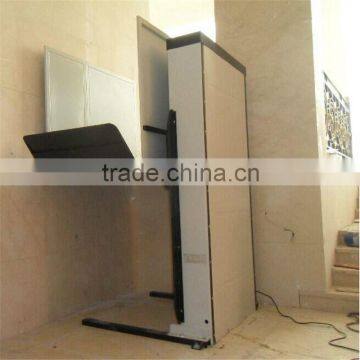

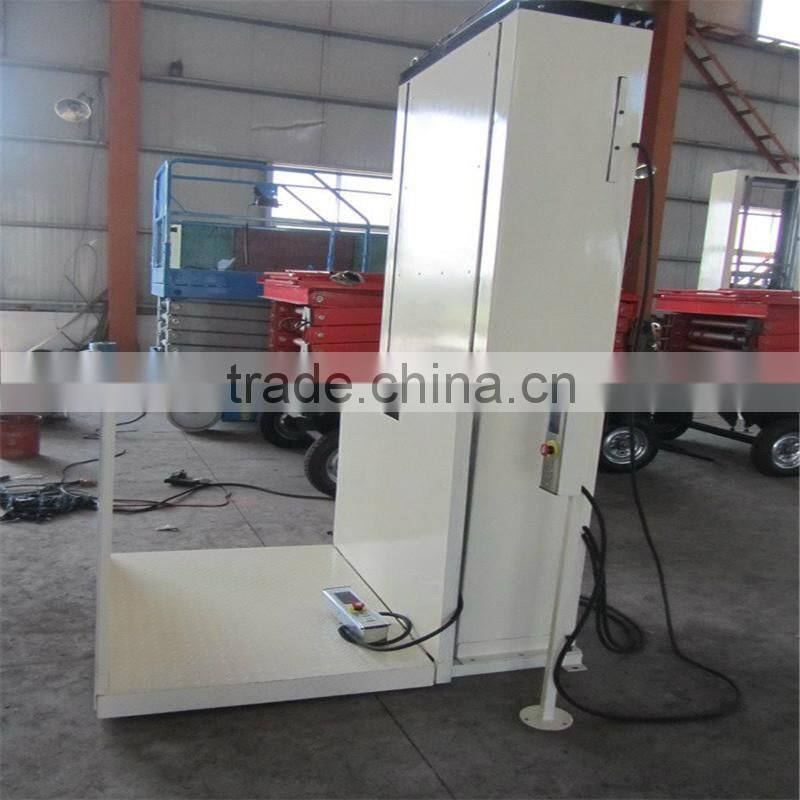

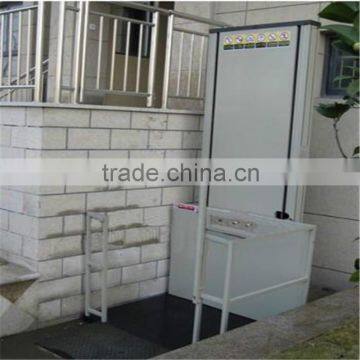

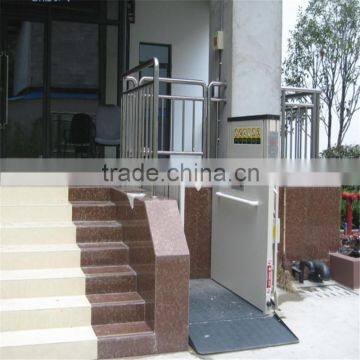

Wheel-chair vertical lift

LRL0.25-N

250

Stainless steel

Platform size

1300mm(L)* 1000mm(W)

Dimension

1300mm(L)*1450mm(W)* [Travel height +700mm(H)]

Max Platform Height

N(mm)

Min Platform height

60mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG

Control voltage

24V/DC

Power Output

0.75kw-2.2kw

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Stainless steel

Guard panel & drive cabinet (framework)

304 stainless steel

Automatical ramp

yes

Column switch

Two column switch, one is on the ground floor, one on the first floor

Operation Panel

Polished Stainless steel(up down and Emergency drop valve)

Safety Wane Working Range

75°

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation

Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device

Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop

The lifting and lowering process can be stopped immediately

by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately the safety edge meets obstacles during operation.

Emergency lowering

The platform can be lowered by opening

hydraulic valve manually or rolling screw rod.

Auto-flap

Turn up after lifting
