C63-125A Three Phase Smart MCB Switch

Specifications

Can be shut off auto when the control signal voltage is lower than the rated voltage.Can be used with three phase prepaid meter

                  C63-125A three phase Smart MCB switch







• Can be shut off automatically when the control signal voltage is lower than  the rated voltage.
• Can be used with three phase prepaid Energy meter.
• Can protect the over loaded circuit and short circuit.

Specification

• Model	WSB9S-80
  Stardards	IEC/EN60947-2
  Poles	3P+N
  Tripping characteristics	C
  Rate current In	16…80A
  Rate frequency f	50/60Hz
  Rate voltage	3×230V AC
  Pollution Degree	3
  Short- circuit breaking capacity	6kA
  Mechanical data
  Housing	Insulation group I,RAL7035
  Toggle	Insulation group Ⅱ,black ,seable
  Protection degree acc. To EN60259	IP40 in enclosure with cover
  Mechanical endurance	20,000 ops
  Shock resistance acc. to IEC/EN 60068-2-27	25 g, 2 shocks, 13 ms
  Environmental conditions acc. to IEC/EN 60068-2-30	28 cycles with 55 °C/90-96 % and 25 °C/95-100 %
  Ambient temperature	-25 ... +55 °C
  Storage temperature	-40 ... +70 °C
  Dimension and weight
  Pole dimension (H*D*W)	91×108×54
  Pole weigh	Approx. 350g

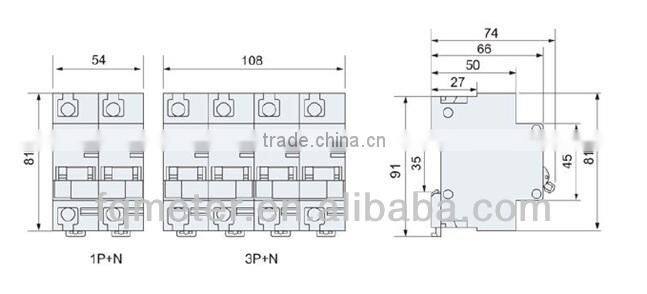

Dimensions

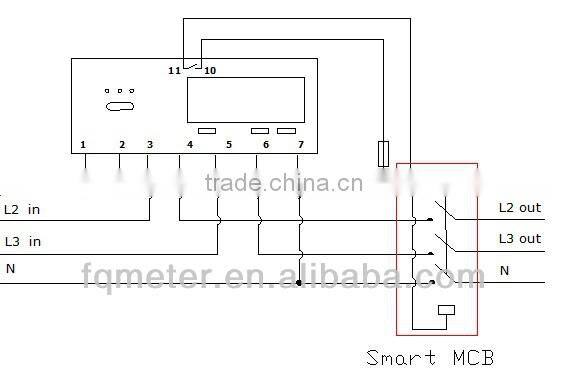

Connect wire with Fineco DIN energy meter
