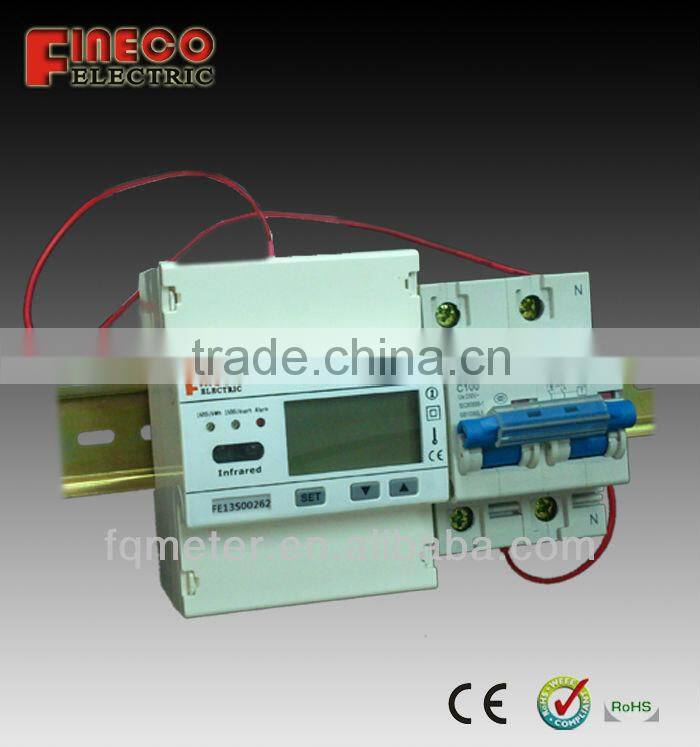

C63-125A Smart MCB With Prepaid Energy Meter

Name: C63-125A Smart MCB With Prepaid Energy Meter
Brand: Fineco
SKU: 131488859
Availability: InStock

US$ 5 - 30 MOQ: 1000 Units

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Fineco

Model Number:

WSB9S-125

Shanghai Fangqiu Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Fineco

Model Number WSB9S-125

Type Mini

Poles Number 1

Specifications

Can be shut off when the control signal voltage is lower than the rated voltage.Can be used with Prepaid Energy meter

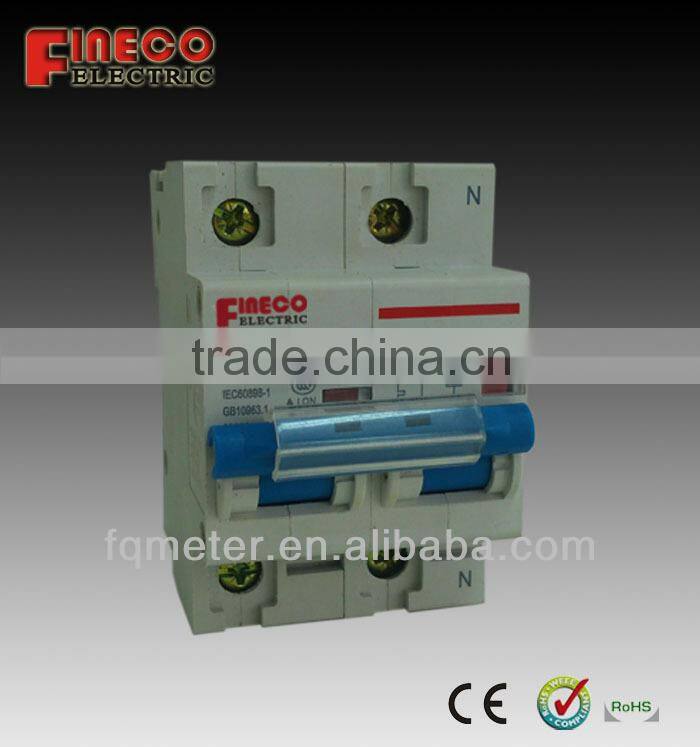

C63-125A Smart MCB

Can be shut off automatically when the control signal voltage is lower than the rated voltage.

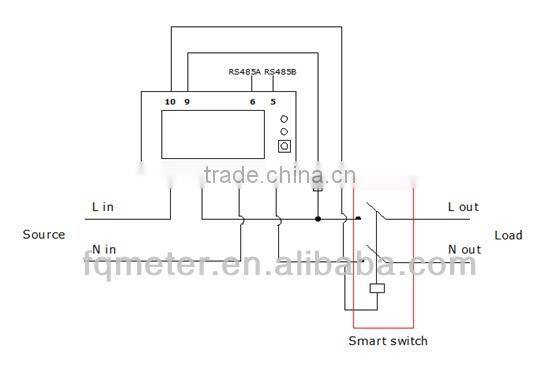

Can be used with Prepaid Energy meter.
Can protect the over loaded circuit and short circuit.

Specification

Model	WSB9S-125
Stardards	IEC/EN60947-2
Poles	1P+N
Tripping characteristics	C
Rate current In	16…125A
Rate frequency f	50/60Hz
Rate voltage	230V AC
Pollution Degree	3
Short- circuit breaking capacity	6kA
Mechanical data
Housing	Insulation group I,RAL7035
Toggle	Insulation group Ⅱ,black ,seable
Protection degree acc. To EN60259	IP40 in enclosure with cover
Mechanical endurance	20,000 ops
Shock resistance acc. to IEC/EN 60068-2-27	25 g, 2 shocks, 13 ms
Environmental conditions acc. to IEC/EN 60068-2-30	28 cycles with 55 °C/90-96 % and 25 °C/95-100 %
Ambient temperature	-25 ... +55 °C
Storage temperature	-40 ... +70 °C

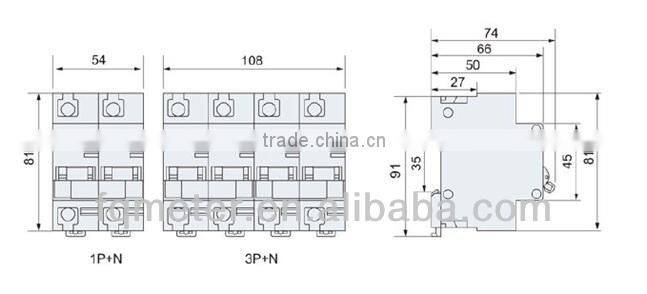

Dimension and weight
Pole dimension (HDW)	917454
Pole weigh	Approx. 300g
