Split Core Current Transformer

Shanghai Fangqiu Electric Co., Ltd.
Split Core Current Transformer thumbnail-1
Split Core Current Transformer thumbnail-2
Split Core Current Transformer thumbnail-3
Split Core Current Transformer photo-1

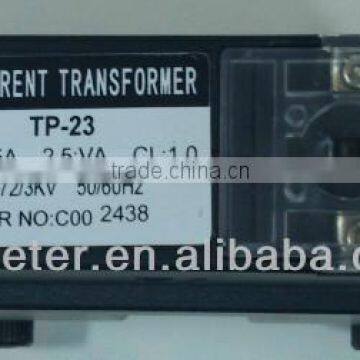

Split Core Current Transformer photo-2

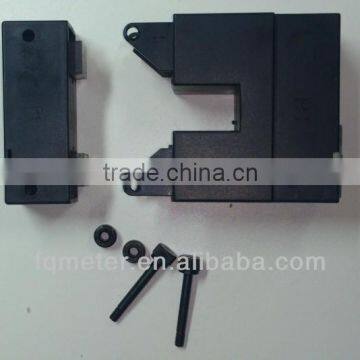

Split Core Current Transformer photo-3
US$ 10 - 100 MOQ: 300 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Fineco
Model Number:
TP-23/58/88/812/816
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Fineco
Model Number TP-23/58/88/812/816
Usage Current
Phase Single
Coil Structure Other
Coil Number Other

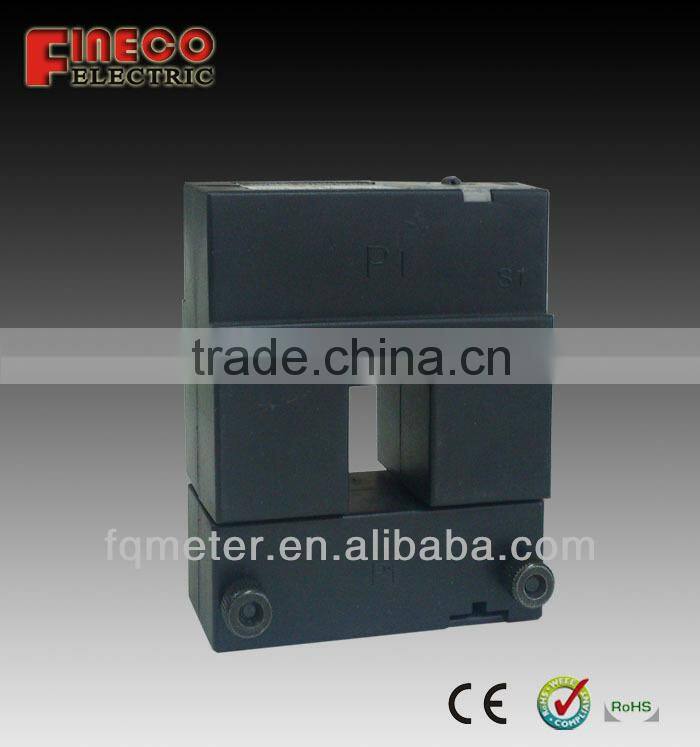

                                     Split core current transformer

Split core current transformer

Installed without opening any cable or bus bar circuit.

Small size and easy mounting

Wide inner window, allowing clamping of big cable or bus bars

Wide range of sizes to accommodate all the existing installations

High accuracy and reliability



Split core current transformers CP series:



Split core current transformer

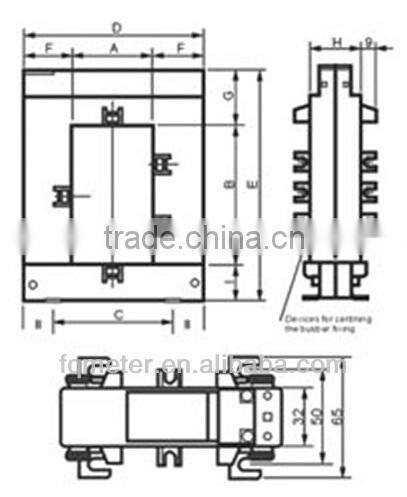

Type and size:

                                 Split core current transformer

 Split core current transformer

              Split core current transformer

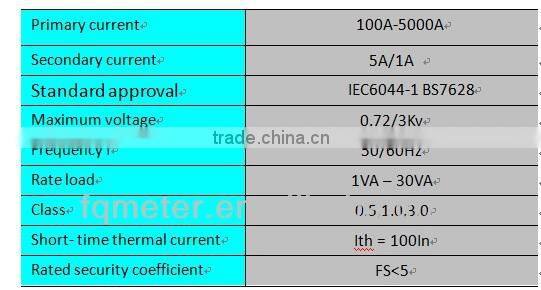

Technical data :





Type



Nominal current ratio



Class: 0.5



Class: 1.0

VA

VA





TP-23



100

—

—

150

—

—

200

—

1.5

250

—

1.5

300

1.5

2.5

400

2.5

5









 TPP-58

250

           1.5

2.5

300

1.5

2.5

400

1.5

5

500

2.5

5

600

2.5

7.5

750

2.5

7.5

800

2.5

10

1000

5

10









TP-88

250

1.5

2.5

300

1.5

2.5

400

1.5

2.5

500

2.5

5

600

2.5

6

750

2.5

6

800

2.5

6

1000

5

10









TP-812

500

2.5

5

600

2.5

5

750

2.5

7.5

800

2.5

7.5

1000

5

10

1200

6

10

1250

7.5

10

1500

7.5

10









TP-816

1000

10

15

1500

15

20

2000

15

20

2500

15

20

3000

20

30

4000

20

30

5000

20

30



                    Split core current transformer



                Split core current transformer

Split core current transformer

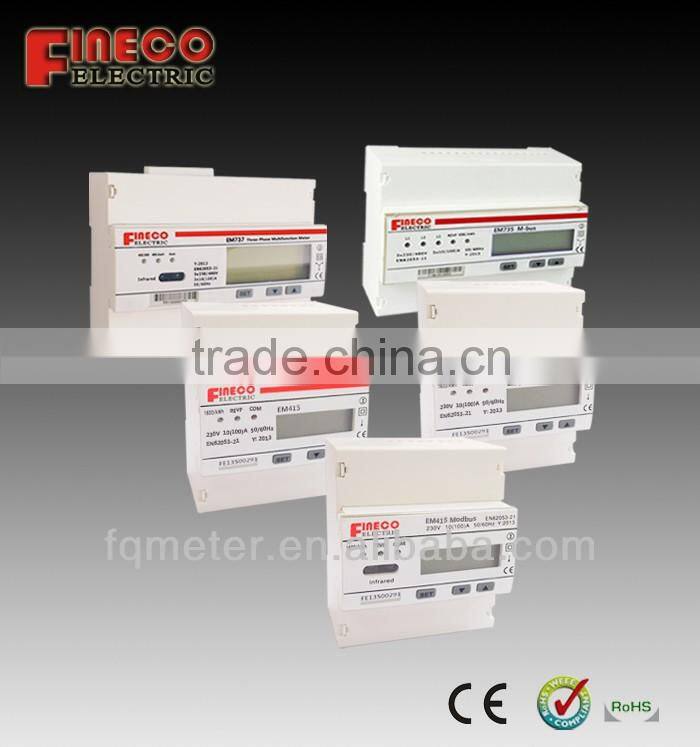

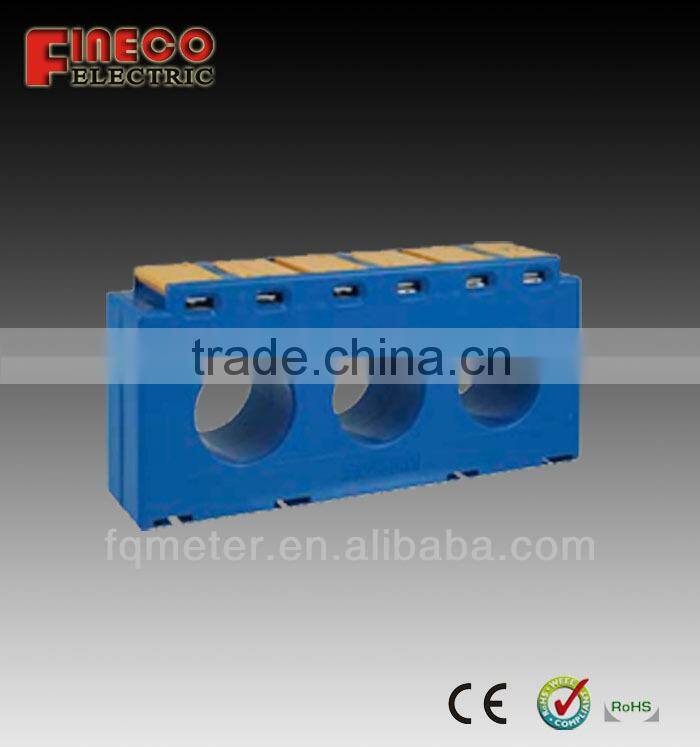

other products:
