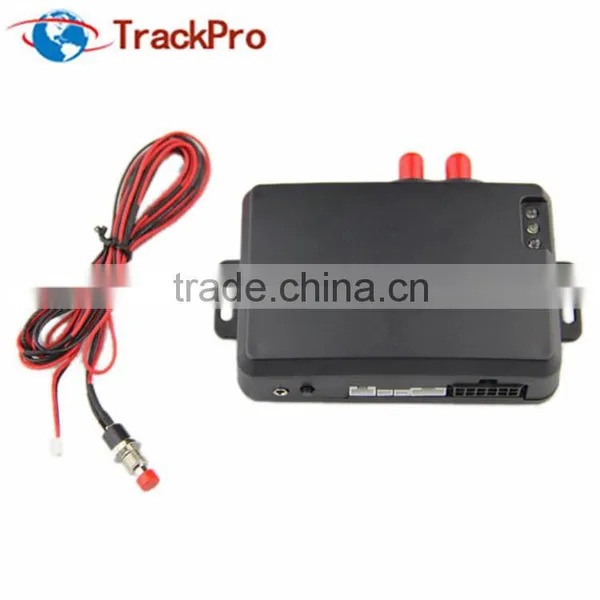

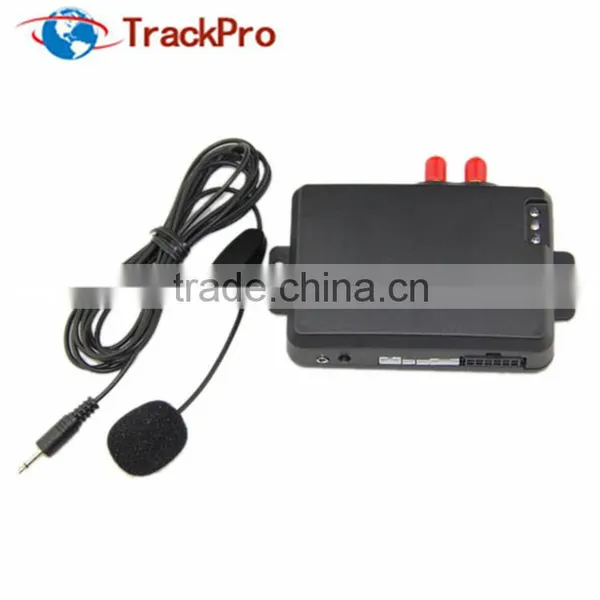

Sim Card Tracking System Car Gps Tracker With Engine Shut off Free Software
sim card tracking system car gps tracker with engine shut off fee software
*Optional accessories: fuel sensor, odometer sensor, temperature sensor, voice monitor
* Fuel sensor, can know how much fuel used from server, data is very accurate, approximate the real value of the fuel gauge of the car.
* Odometer sensor, the odometer value is approximate the real value of the odometer of the car.
Features:

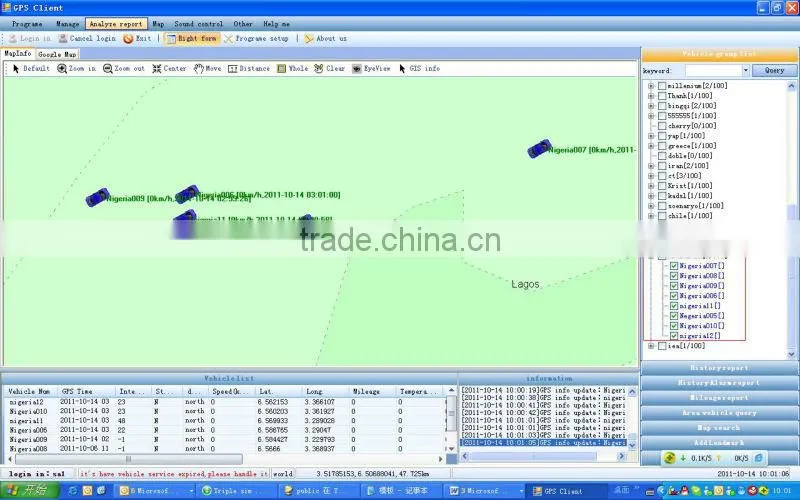

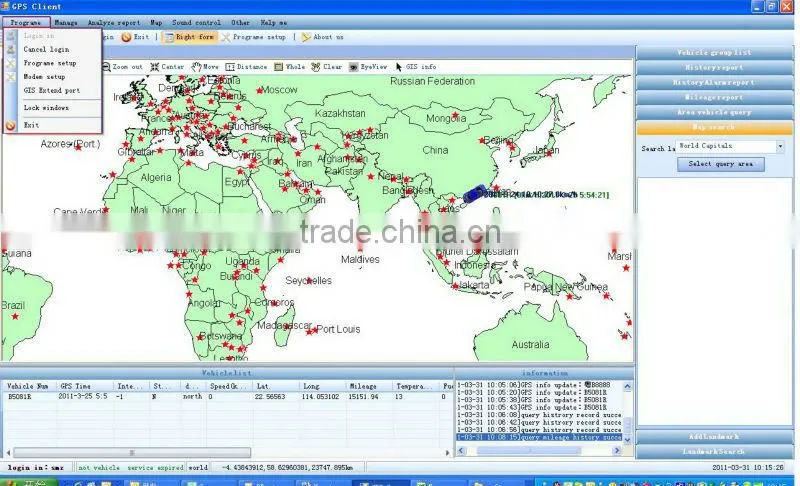

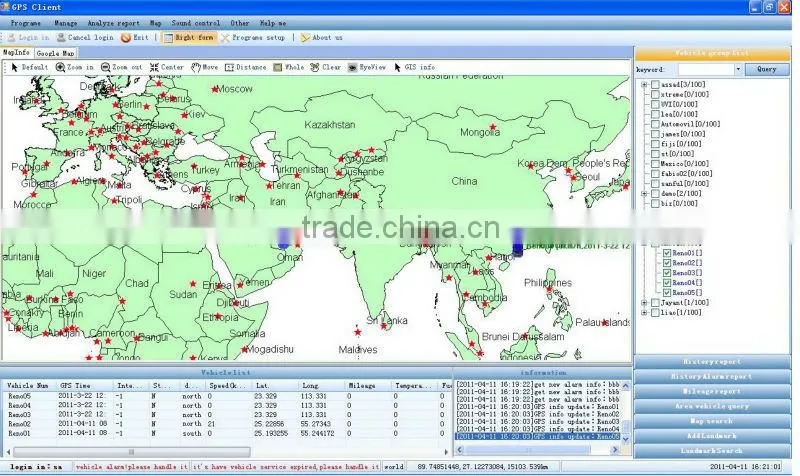

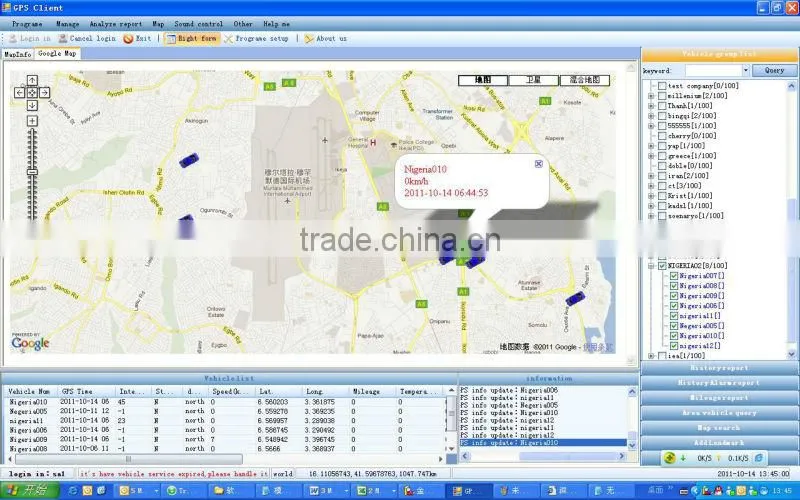

1) get the exact position of the car.

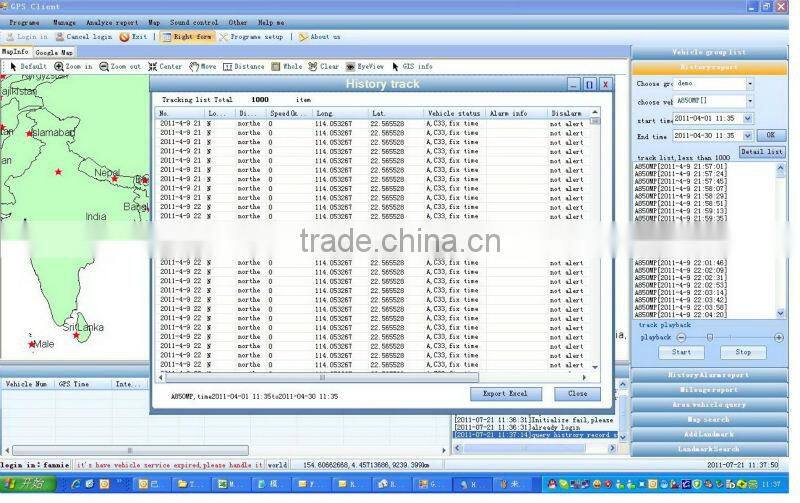

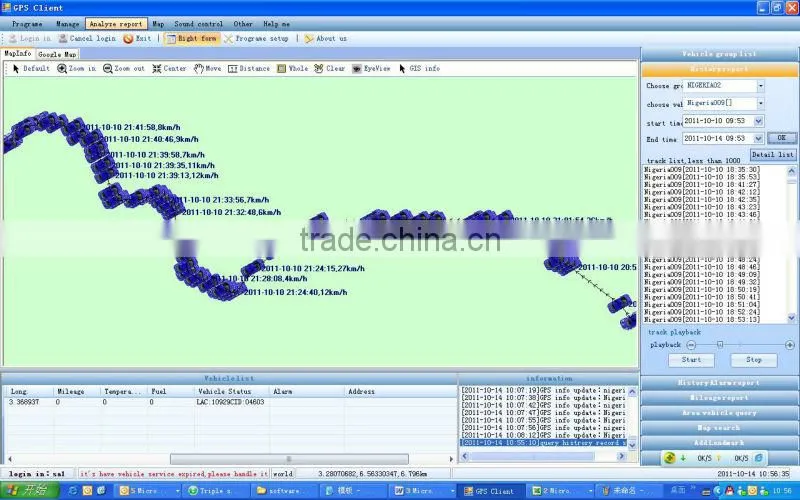

2) get the trajectory playback of the car

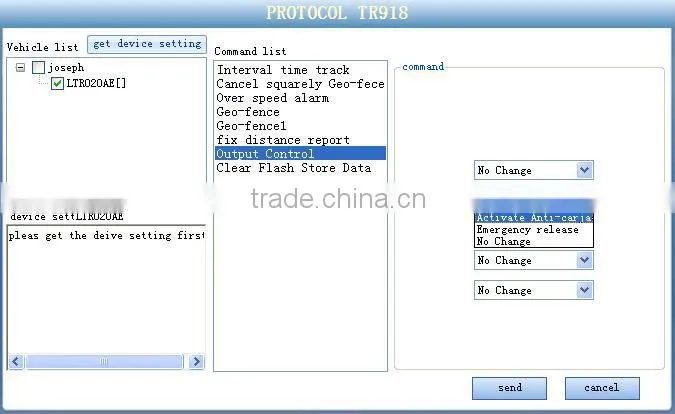

3) remotely control the power and door etc of the car.
4) get the direction and condition(ACC on, ACC off, door-pen, door-locked etc) of the cars anytime and anywhere.
5) get the mileage account of the cars.
6) Intelligent report according to your preset parameter and interval time/distance.
7) storage data in no GSM signal place
8) built in memory
9) built in backup battery
10) can use mobile phone to send message to get position or remote control cars

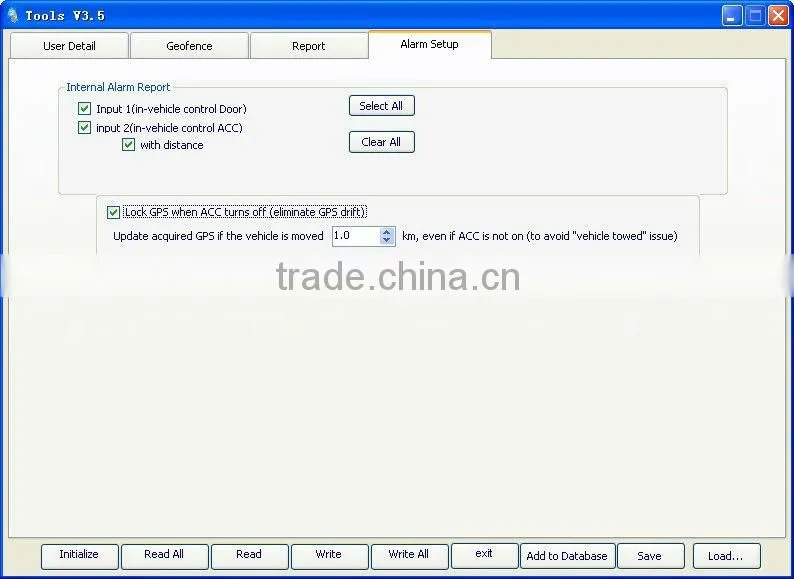

Alarm functions:
1) over speed alarm, when the truck speed is over your preset value, the tracker will send alarm message to the monitor center or your mobile phone.
2) direction change alarm, when the direction change is bigger than the preset value, the tracker will send alarm message.
3) SOS alarm, when there is carjacking or other emergency issues, the driver can press the SOS button, then the tracker will send SOS message to the center.
4) low battery alarm, when the external battery level is low, the tracker will send alarm message.

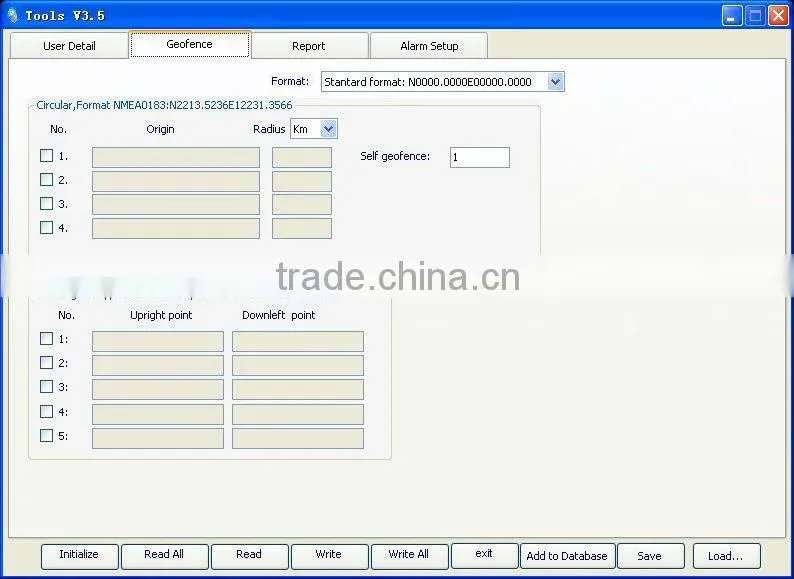

5) geo-fence, you can set a scope in the platform, then if the truck is outside the scope, the tracker will send alarm message to center.
Enclosure dimensions | 93mm*62mm*25mm |
Weight | 200g |
DC Tolerance voltage | 9V - 35V |
GSM Module | 850/900/1800/1900MHz |
GPS Module | SIRF III |
Protocol | NMEA0183 |
Number of Channels | 20 Channel Simultaneous Operation |
Current (GPRS online) | 60mA |
Current (GPRS transmission) | 80mA |
Sleeping mode | 40mA |
Accuracy Horizontal | <5 meters (50%), <8 meters (90%) |
Altitude | <10 meters (50%), <16 meters (90%) |
Velocity | 0.06 m/sec. |
Hot Start: | <13 sec |
Warm Start: | <42 sec |
Cold Start: | <84 sec |
Backup battery | 800mAh |
Communication | GPRS SMSRS232 |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +65°C |
