US$ 55 - 75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, no screen
Contact Supplier Request Quote Chat Now
Shenzhen TrackPro Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, no screen
Function Other, tracking
Place of Origin Guangdong, China
Brand Name TrackPro
Model Number TR20
Warranty 2 Years

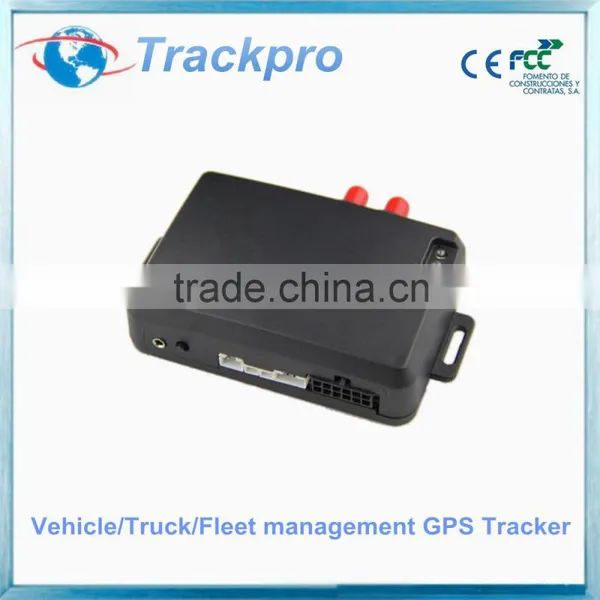

 car location data logger with temperature sensor, GPS tracker



Application:

-vehicle rental/fleet management

-sensitive for temperature

-security issue

-track criminals secretly

-manage personnel

Features:

 -Real Time Data Upload

 -Programmable Data Input Type & Alert hi/low

 -Programmable Data Upload Interval & Logging Interval

 -Easy Setup via RS232  by PC Software

 -Built in Memory to Store Data

 -Built in Backup Battery

 -4 digital input and 2 digital output

 car location data logger with temperature sensor, GPS tracker

car location data logger with temperature sensor, GPS tracker


 Summary functions:

  1. Support TCP/UDP,GPRS/SMS
  2. Fixed time report
  3. Fixed distance report
  4. Intelligent report

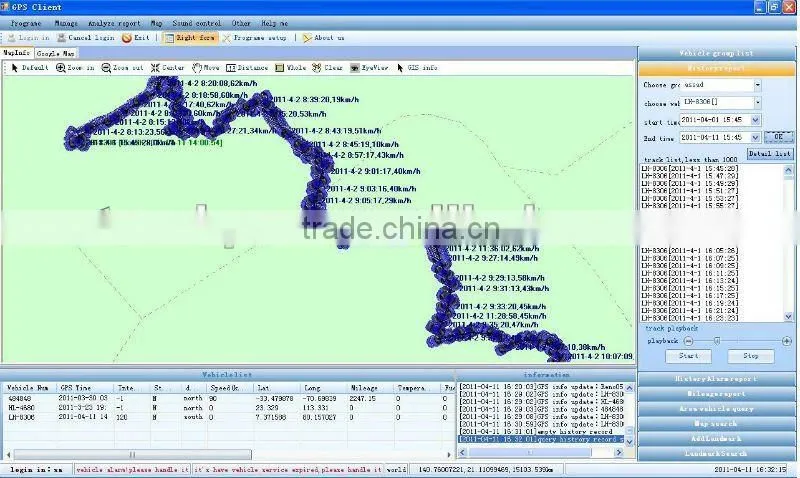

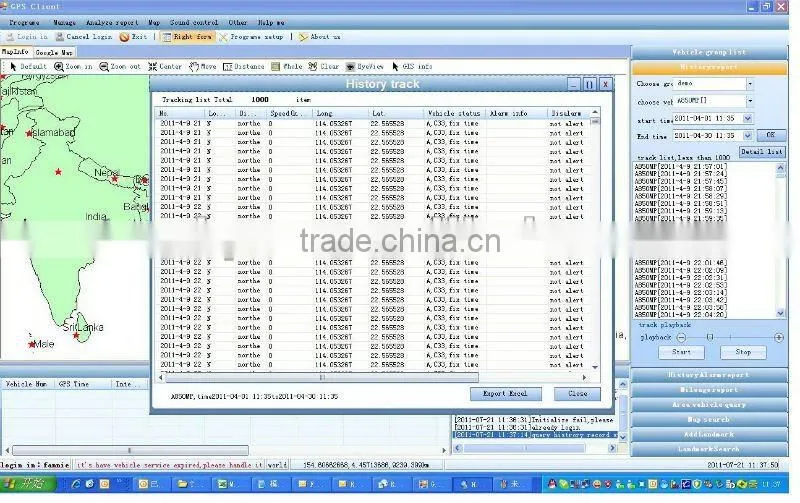

  5. history report and play back the transportation route history
  6. geo-fence
  7. over speed alarm
  8. direction change report
  9. low battery alarm
  10. storage data in no GSM signal place
  11. SOS alarm
  12. Door Lock/unlock control, user can send command via server to lock/unlock the vehicle door remotely
  13. Arming, when ACC OFF, server can send arming command to arm the vehicle. In arming mode, the door will be locked and engine enabled. If you open the door/truck, turn ACC ON, alarm will be triggered and send report to server.

Enclosure dimensions

93mm*62mm*25mm

Weight

200g

DC Tolerance voltage

9V - 35V

GSM Module

850/900/1800/1900MHz

GPS Module

SIRF III

Protocol

NMEA0183

Number of Channels

20 Channel Simultaneous Operation

Current (GPRS online)

60mA

Current (GPRS transmission)

80mA

Sleeping mode

40mA

Accuracy Horizontal

<5 meters (50%), <8 meters (90%)

Altitude

<10 meters (50%), <16 meters (90%)

Velocity

0.06 m/sec.

Hot Start:

<13 sec

Warm Start:

<42 sec

Cold Start:

<84 sec

Backup battery

800mAh

Communication

GPRS SMSRS232

Operating Temperature

-20°C to +55°C

Storage Temperature

-40°C to +65°C
