Obd Cable to Tracker Obdii Vehicle Tracking System

Obd Cable to Tracker Obdii Vehicle Tracking System thumbnail-1
Obd Cable to Tracker Obdii Vehicle Tracking System thumbnail-2
Obd Cable to Tracker Obdii Vehicle Tracking System photo-1
Obd Cable to Tracker Obdii Vehicle Tracking System photo-2
US$ 42 - 49 MOQ: 50 Units
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, NULL
Contact Supplier Request Quote Chat Now
Shenzhen TrackPro Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, NULL
Function Other, GPS TRACKING
Place of Origin Guangdong, China
Brand Name TRACKPRO
Model Number TR90
Warranty 1 Years



obd cable to tracker obdii vehicle tracking system







Product Description



Specifications





Voltage

12VDC/24VDC

Standby Current

<3mA

Work current

<120mA

GPS positioning accuracy

15m

GSM positioning accuracy

100m

GPS Frequency

1575MHz

GSM Frequency

850/900/1800/1900MHz

Hot/warm/cold start time

<3s,<15s,<60s

Dimensions (mm)

L*W*H:56.5 X 47 X 24.6

Net Weight

45 g







Features

  • Easy installation, plug-n-play
  • Iphone&Android APP Software
  • Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world
  • Supports single positioning and feedbacks position via GPRS at setting times
  • Supports Vehicle positioning and tracking





Environment for use

  1. Limited working temperature:-20°C~80°C
  2. Storage temperature:-45°C~90°C
  3. Humidity:<95%
  4. sure the terminal is installed in OBD2 interface of the vehicle

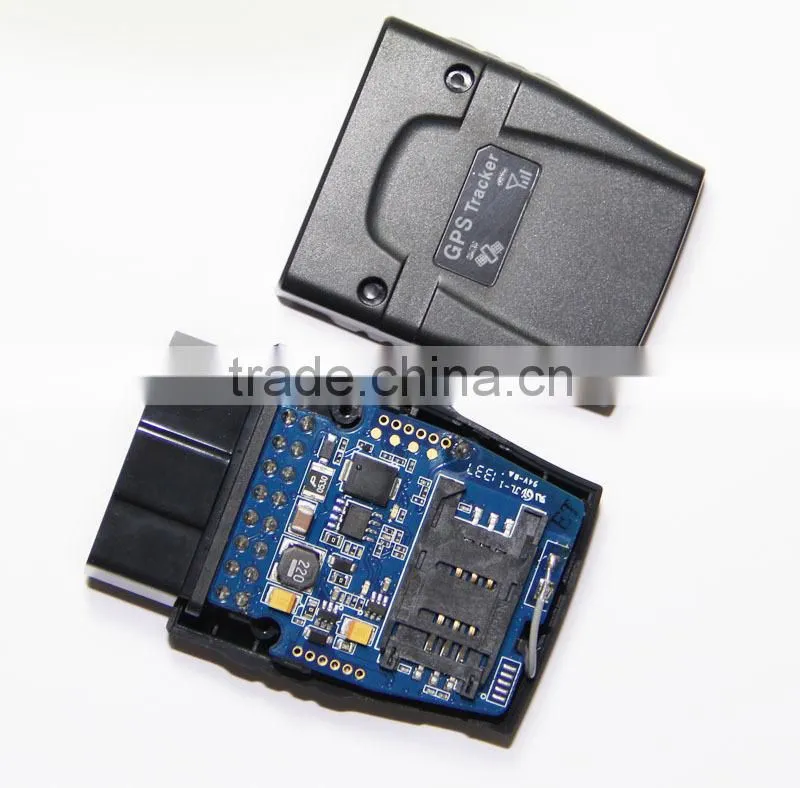

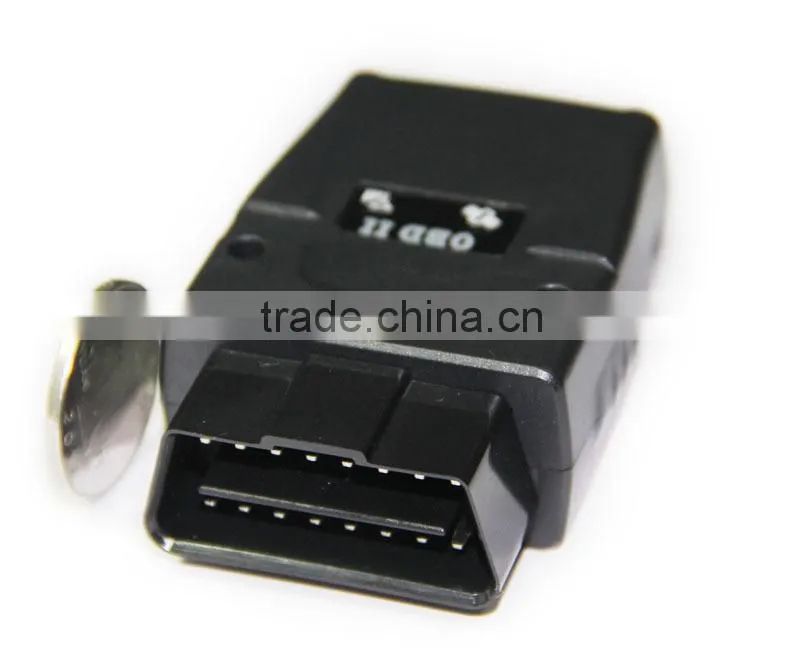

Physical Display


obd cable to tracker obdii vehicle tracking system

obd cable to tracker obdii vehicle tracking system

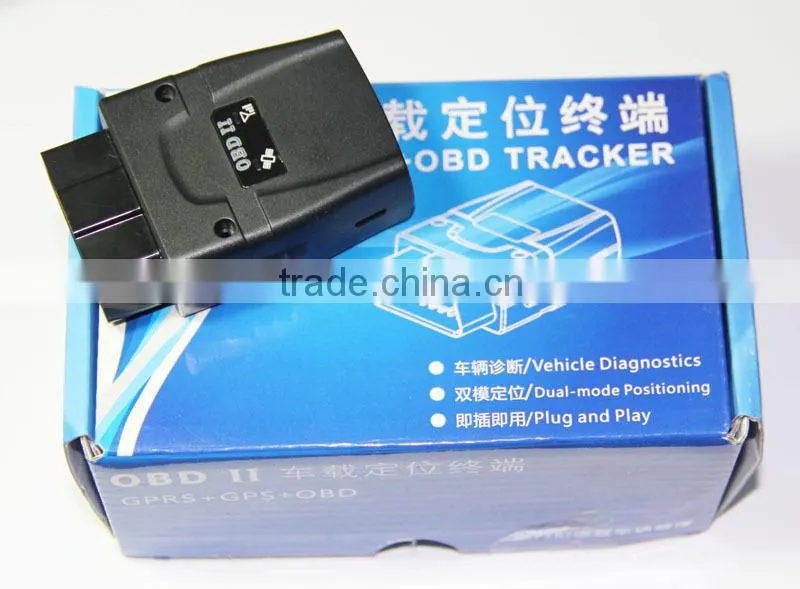

Packaging & Shipping



obd cable to tracker obdii vehicle tracking system

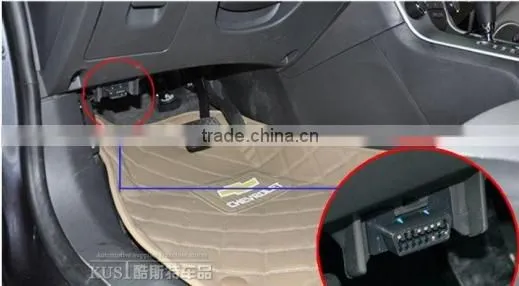

Installation Guide

The connector is underside of your dashboard, below your steering wheel but above your gas and brake pedals.





The connector may be covered by a small flap, but will usually be visible without requiring any disassembly.







Our Services



 1. Offer remote help in the installation and use of the product and server for customers

2.  Free Android and IOS app

3. you can also just host your gps trackers on our gps tracking software. Our software is   compatiable  with most trackers in the market

4. Professional engineer will always be there for your technical support!





Locating on web-based gps tracking software









Android/IOS app also supported







FAQ

 Q: Why the tracker can't be switched on?

A: 1. Check if wiring is correct or not.

    2. Charge the tracker.



Q: No response to SMS command

A: 1. Wrong password. Please check your password.

    2. No GSM mobile signal or weak GSM network. Try later.

    3. Out of SIM credit. Please pop up.

    4. SIM is damaged. Change a sim card.

    5. SIM card is without sending function. Change a SIM or enable SMS sending function and caller identification function.

    6. SIM card isn't installed properly.
