Bank mortgage asset RFID inventory - SID Global
Bank mortgage asset tracking by RFID
Some bank officer was unhappy due to they have to inventory the mortgage asset one by one after bank service off, it take 2-3 hours by human working and everyday . It is like torture that they do pretty much same count every day and less time to together with family….
Now , they feel comfortable after SID-Global take RFID tech in Bank mortgage tracking , they only take 30min on inventory and have more time to spend on family …
So, How can SID-Global RFID do it?
Go …
- Tags installing

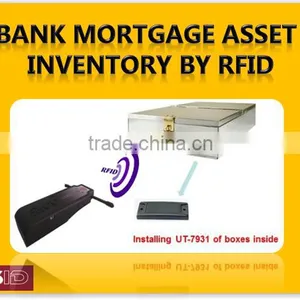

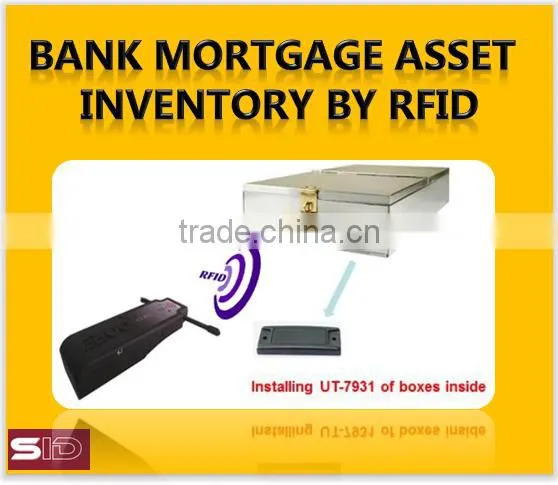

- Bank boxes tag install

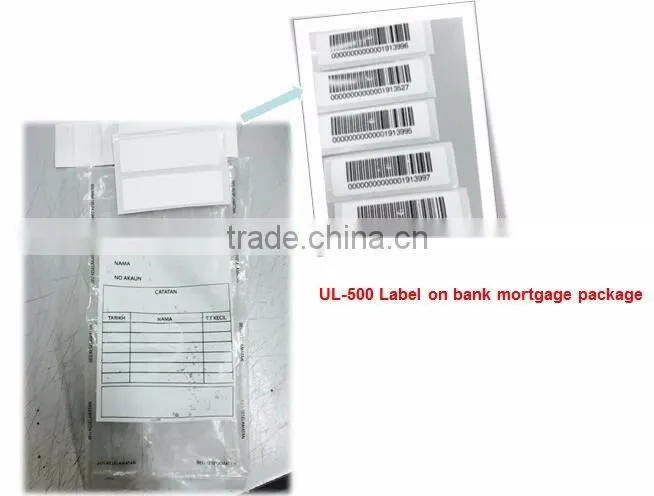

2.Bank mortgage package tag
- SID Global Handheld scanner UH-200
Model |
UH – 200 |
|
Physical Characteristics |
Dimensions |
165 (L) x 55 (W) x 30 (H) mm |
Weight |
210g (with battery) |
|
|
Environment |
Operating Temp |
-20°C to 55°C (-4°F to 131°F) |
Storage Temp |
-40°C to 80°C (-40°F to 176°F) |
|
Humidity |
10% to 95% |
|
Casing |
IP54 |
|
Antenna |
Polarization |
Linear |
Peak Gain |
3 dbi |
|
Beam Width |
Horizontal 3dB Beam width 6°±2° Vertical 3dB Beam width 360°±5° |
|
VSWR Ratio |
<1.3 |
|
Battery |
7.2V 1600mAh @ 30dBm – 2 hours continuous reading and sending data via BT @ 25dBm – 3 hours continuous reading and sending data via BT |
|
Frequency Ranges |
902 or 928 MHz band or upon customer’s request |
|
RF power control |
20 - 23dBm (UH – 200) / 30dBm (UH – 800) |
|
Tag Air Interfaces |
EPC Class 1 Gen 2 |
|
Communication Interface |
Bluetooth ™ |
|
Reader Range |
>1- 2m tag dependent |
|
Hardware Kit:
Model name |
SPEC |
Picture |
UH-200 Handheld |
1:0.2-0.5 M reading 2: UHF RFID 860-960MHZ 3 Bluetooth 4:Apply to Android, Windows O/S
|
|

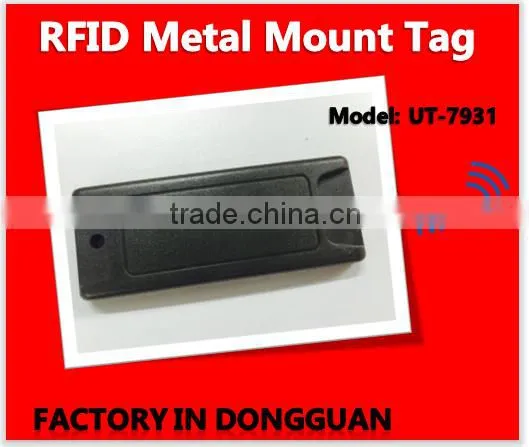

UT-7913 Tag |
1: UHF RFID 860-960MHZ 2: on metal |
|
UL-500 Label tag |
1: UHF RFID 860-960MHZ 2: 2*4inch (Customizable) 3: Can printed |
|
SID Global (Super Intelligent Device)
Established in late 2009
1300 square meters production plant
2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library management project and Access control
There are office in Malaysia , Thailand and Shenzhen Which can support Local service
