Home > Products > TE/AMP > 3.96mm pitch vertical PCB Mounting Orientation wire to board plug header connector TE 4 pin connector tyco 640445-4 straight

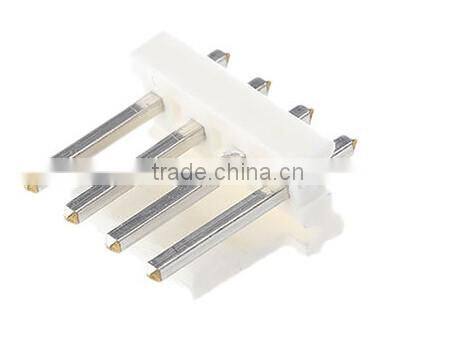

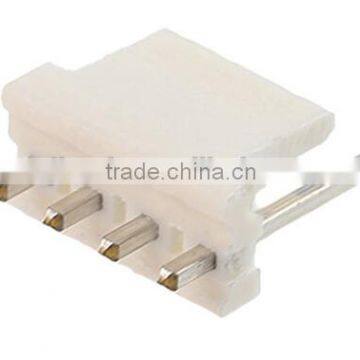

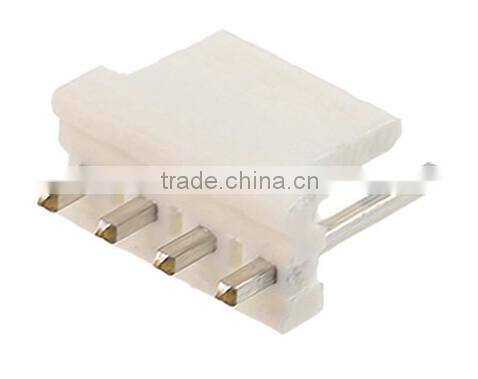

3.96mm pitch vertical PCB Mounting Orientation wire to board plug header connector TE 4 pin connector tyco 640445-4 straight
USD $0.09 - $0.1
/ Piece
2000 Pieces(Min.Order)
- 19000 Piece / Pieces per Month
- HONG KONG
You May Like
Product Details
| Place of Origin: | United States | Brand Name: | TE | Model Number: | 640445-4 |
| Type: | Other, header | Application: | Other, wire-to-board | Gender: | Other, plug |
Product Description
Product Description
Specifications
| Agency Approvals | : | CSA, UL |
| Angle | : | Straight |
| Application | : | For wire-to-board |
| Brand/Series | : | MTA-156 Series |
| Color | : | White |
| Color, Housing | : | White |
| Connector Type | : | Male |
| Contact Centerline Spacing | : | 0.156 in. |
| Contact Plating | : | Tin |
| Current, Rating | : | 7 A |
| Diameter, Insulation | : | 0.095" (Single Wire), 0.07" (Mass Termination Wires) |
| Flammability Rating | : | UL94V-0 |
| Length, Overall | : | 0.624 " |
| Length, Pin | : | 0.125 " |
| Length, Terminal Post | : | 0.125 in. |
| Material, Contact | : | Copper Alloy |
| Material, Housing | : | Thermoplastic Polyester |
| Mount Angle | : | Vertical |
| Mounting Hole Size | : | 0.07 " |
| Mounting Type | : | PCB Mount |
| Number of Contacts | : | 4 |
| Number of Positions | : | 4 |
| Number of Rows | : | 1 |
| Pin Spacing | : | 0.156 " |
| Primary Type | : | Interconnect System |
| Special Features | : | IDC, Pinstrip |
| Standards | : | UL 94V-0 Housing Flammability Rating, RoHS Compliant, ELV Compliant |
| Temperature, Operating | : | -55 to +105 °C |
| Termination | : | Solder |
| Type | : | PCB Plug |
| Voltage, Rating | : | 600 V |
| Wire, AWG | : | 26-18 |
