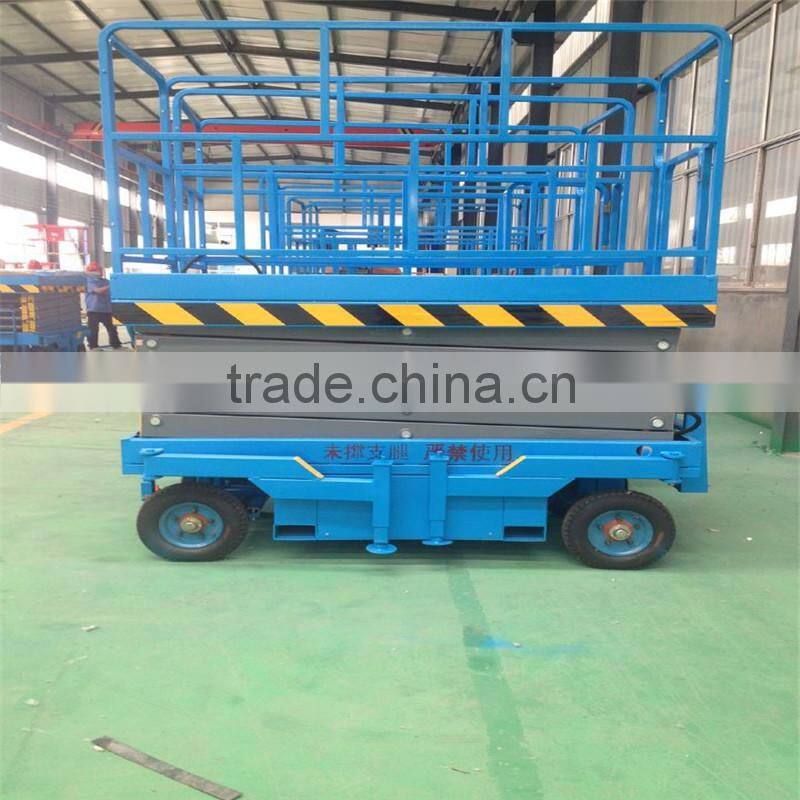

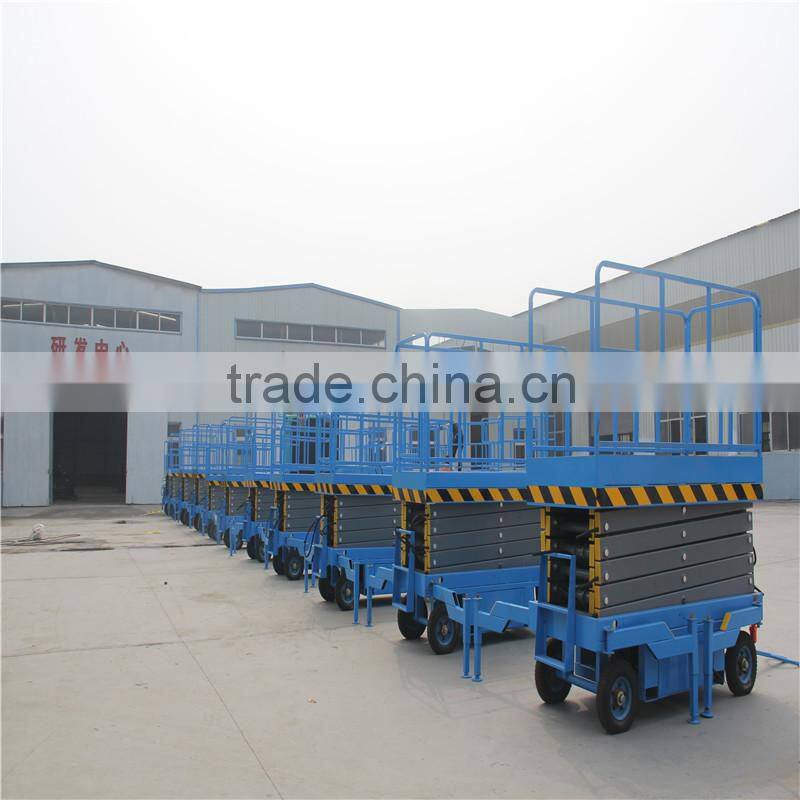

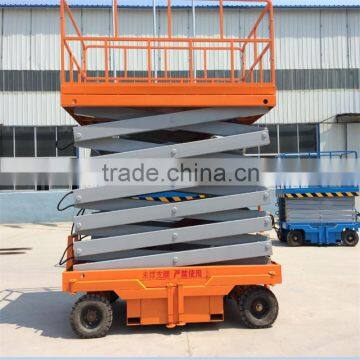

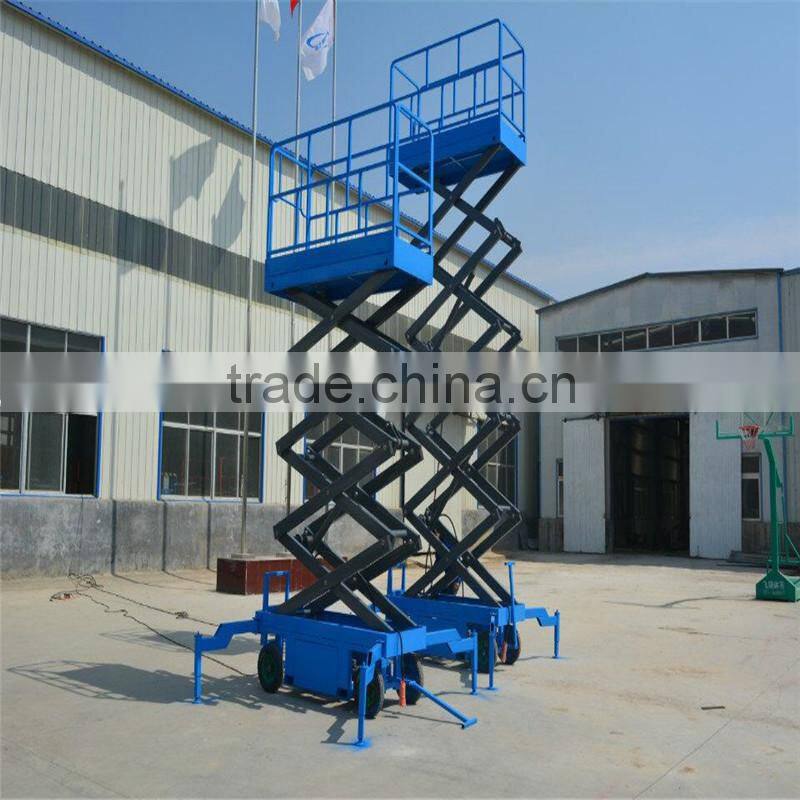

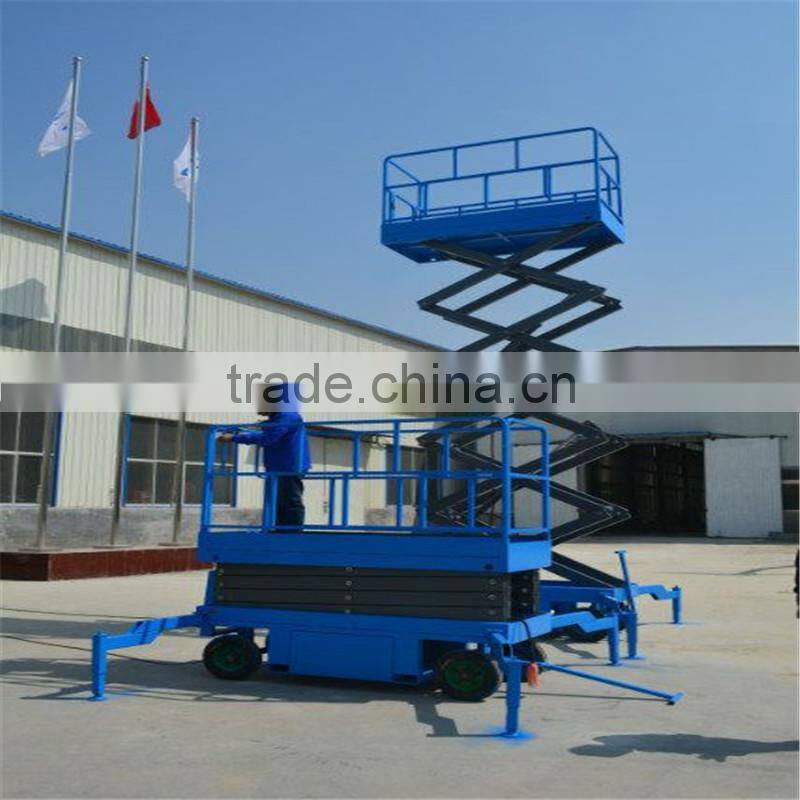

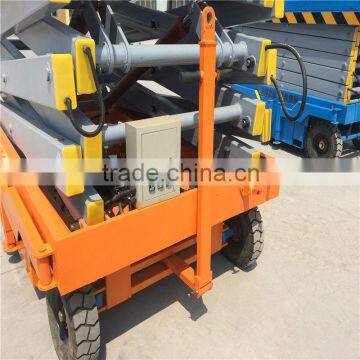

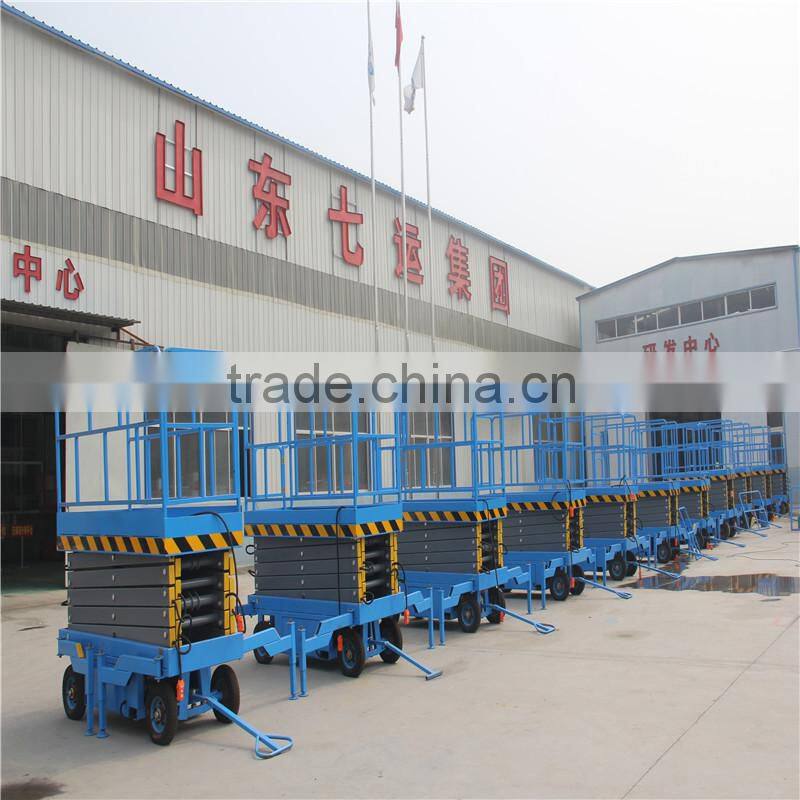

Tyre Moving Mobile Hydraulic Scissor Lift

FOB Price

US$ 3,000 - 6,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Truewin
Model Number	SJY	Lift Mechanism	Scissor Lift
Lift Drive / Actuation	Hydraulic	Power	2.2kw
Rated Loading Capacity	300kg	Min. Lifting Height	1m
Max. Lifting Height	8m	Table Size	1500mm*750mm
Overall Dimensions	1850mm1000mm950mm	Weight	400KG
Certification	CE&ISO9001	Warranty	1 year
After-sales Service Provided	Overseas third-party support available

Product Description

Mobile scissor lift

Advantages of Mobile scissor lift:
The equipment is mainly used for lifting cargos and delivering goods,high-altitude operations.

The platform height is high,the max height is 18m
Safe and durable ,Great stability Its mechanical structure makes the lifting platform lift more stably.
Move convenient ,easy to work
Horizontal reach of the platform extends working range of the operator.It’s suitable for several people working together.
Mobile scissor lift Application:
It is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, us/railway stations, hotels, airports, gas station and aerial pipeline.
Paremeters:

Mobile scissor lift
model	loading capacity (kg)	platform size(mm)	platform height(m)	overall size (mm)	weight (kg)	power (kw)
model	loading capacity (kg)	platform size(mm)	platform height(m)	overall size (mm)	weight (kg)	power (kw)
SJY0.3-4	300	1500*750	4	18501000950	400	2.2
SJY0.3-6	300	1500*750	6	18501000150	650	2.2
SJY0.3-8	300	1650*1000	8	205012801650	1200	2.2
SJY0.5-8	500	1650*1000	8	205012801650	1400	2.2
SJY0.8-8	800	1650*1000	8	205012801650	1700	2.2
SJY0.3-10	300	2100*1200	10	260015501450	1500	2.2
SJY0.5-10	500	2100*1200	10	260015501450	1600	2.2
SJY1.0-10	1000	2100*1200	10	260015501450	2380	2.2
SJY0.3-12	300	2550*1500	12	288019001780	2480	2.2
SJY0.5-12	500	2550*1500	12	288019001780	2780	2.2
SJY1.0-12	1000	2550*1500	12	288019001780	3580	2.2
SJY0.3-14	300	3000*1600	14	360020801860	3000	2.2
SJY0.5-14	500	3000*1600	14	360020801860	3200	3
SJY0.3-16	300	3200*1600	16	370020003250	3900	3
SJY0.3-18	300	3200*1600	18	370020003250	4500	3

Our Services

Our service :

1. All the mobile scissor lift will be full tested before shipment

2. The total machine guarantee is 12 moths

3. Reply your inquiry in 24 working hours

4. Customized design is available,OEM are welcomed

5. Delivery the goods to our customer all over the world with speed and precision

6. Offer customer the lowest price with high quality lifting machine

Maintenance Schedule

A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
