Home > Products > Self-propelled Scissor Lift > 8m Self Propelled Mobile Scissor Lift/hydraulic Scissor Lift Platform

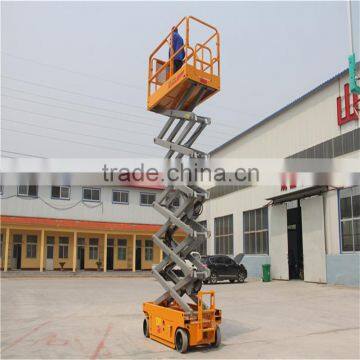

8m Self Propelled Mobile Scissor Lift/hydraulic Scissor Lift Platform

FOB Price

US$ 6,900 - 10,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	True win
Model Number	TRSP0.3-10	Lift Mechanism	Scissor Lift
Lift Drive / Actuation	Hydraulic	Power	2.2kw
Rated Loading Capacity	300KG	Min. Lifting Height	80cm
Max. Lifting Height	16m	Table Size	2.26*1.13
Overall Dimensions	2.471.152.29	Weight	2250KG
Certification	CE ISO9001	Warranty	1 Year
After-sales Service Provided	Overseas third-party support available

Product Description

High Quality Automatic Hydraulic Lift

Product Description

Features + Benefits

Platform controls are equipped with on-board diagnostics
Auxiliary platform lowering system enables platform descent, even in the event of a power failure
Zero inside turning radius

Non-marking tires won't mar the floor surface
5ft.4in. x 2ft.5in. base provides sturdy performanc

Technicial Data:

Item#	TRSP
Manufacturer's Warranty	1 year limited warranty
Ship Weight	2702.0 lbs
Product Type	Scissor lift
Working Height (ft.)	25
Capacity (lbs.)	500
Lift Height (ft.)	19
Platform Height (in.)	228

Gradeablility %	30
Turning Radius (in.)	60 (outside)
Brake Type	Multiple disc brakes
Motor Voltage	24V DC
Charger Type	20A smart charger
Charger Included	Yes
Base L x W (in.)	64 x 29

Production sharing:

The base structure of each model has standard size, same as the scissor structure and other parts, so these parts are made separately, on one hand, it improves our production capacity a lot, but the most important is we can assure the high quality of each part.

Flexible

The steering wheel can make a 90°turn in situ, can runin both high and low speeds, and can be used in small place.

Larger working space

The platform can extend on one side, which can enlarge the working space.

Easy understanding control box-on the platform.

The user can understand how it works and easy to operate.

Each lift will be fully tested before factory, we will assure every part works and make the video for the customer.

It offer up to 25% grade ability when driving on slopes with safety protection.
