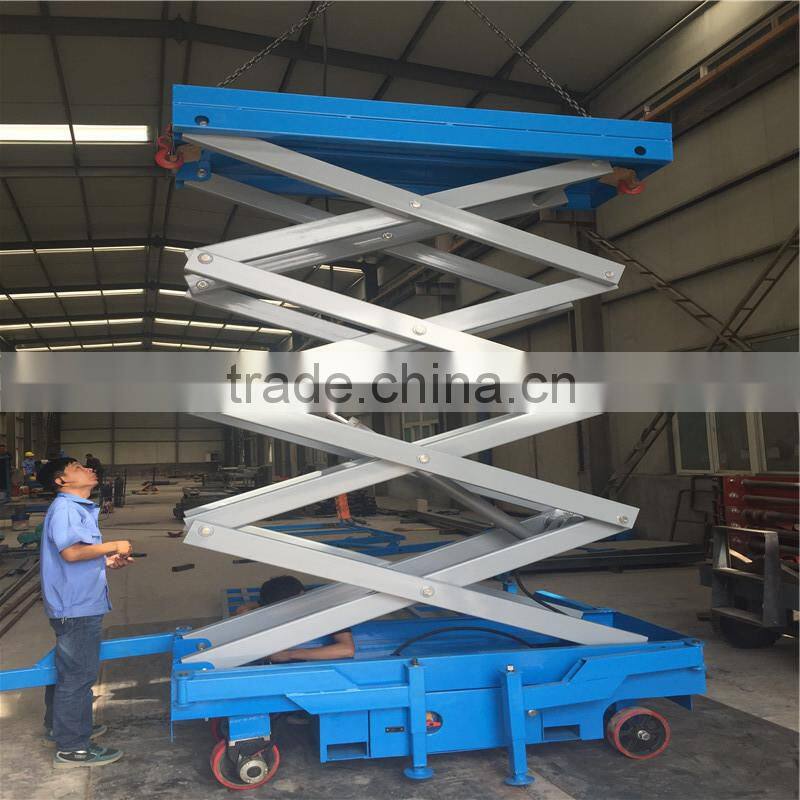

Portable Man Lifts for Sale Hydraulic Scissor Lift

Product Description



Brief introduction

1.Scissor hydraulic lift is the professional high-altitude operation equipment.
2. Its scissor mechanical structure makes the lifting platform lift more stably.Wide working platform and large loading capacity can make the work scope bigger.It’s suitable for several people working together.
3.Lifting height: 4m ,6m, 8m,10m , the max height of the scissor lift is 20m.
4. Loading capacity: 300kg,500kg,800kg,1000kg and so on. The Max capacity could be 7000kg.

Control system

1.Manual control and electric control

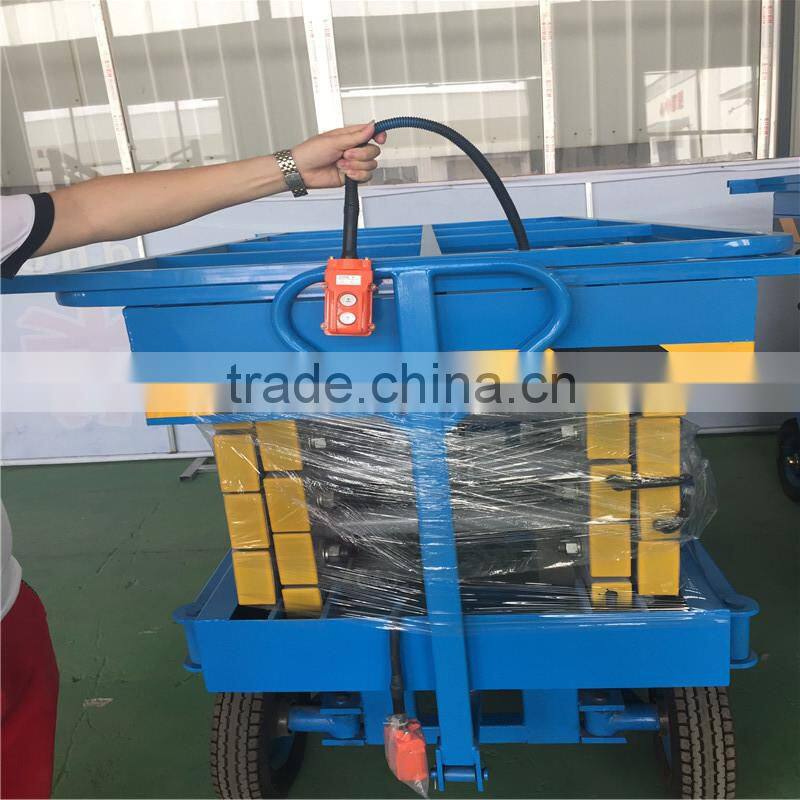

2.Electric control: There are two control systems(optional). One is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.

Power

1.Electricity or diesel .local power available at the working sites(110V,220V,380V,415V),diesel engines and generators.
2. It can be equipped with manual hydraulic device,so when there is no power at the occsions or the power supply goes out,the lift can still work normally

Safety

1.In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity
4.The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position
5.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when it works

Model list

 can be customized

TYPE		ZTSJZ0.3-4	ZTSJZ0.3-6	ZTSJZ0.3-8	ZTSJZ0.3-10	ZTSJZ0.3-12
Working height		6m	8m	10m	12m	14m
Platform size		1900*800mm	1900*800mm	2300*1000mm	2600*1000mm	2900*1000mm
Lifting height		4m	6m	8m	10m	12m
Dimension		2.05*0.8*1m	2.05*0.8*1.1m	2.45*1*1.4m	2.75*1*1.6m	2.75*1*1.6m
Extend platform		0.8m	0.8m	0.8m	0.8m	0.8m
Self-height		1m	1.1m	1.4m	1.6m	1.6m
Guardrail		1.1m	1.1m	1.1m	1.1m	1.1m
Turn radius		1.6m	1.6m	2.3m	2.4m	2.4m
Loading capacity		300kg	300kg	300kg	300kg	300kg
Wheel base		1.5m	1.5m	1.8m	2.2m	2.2m
Ground clearance		100mm	100mm	100mm	100mm	100mm
Weight		1600kg	1800kg	2300kg	2600kg	2600kg
Tire size		250*80mm	250*80mm	300*80	300*80	300*80
Grade ability		10%
battery		4pcs 6V/180Ah
Controller		C101
System voltage		DC24V
Traveling speed	stowed		5km/h
	Raised or  extended		0.8km/h
Lifting speed		3-5m/min
Charge		24/15A
Lifting motor		DC2kw/24v
Driving motor		DC0.75kw*2/24v
