Durable & utility 300kg scissor lift China supplier mobile scissor lift plat form
- 300 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shandong, China | Brand Name: | Truewin | Model Number: | SJYS |
Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Hydraulic | Power: | 2kw |
Rated Loading Capacity: | 300kg | Min. Lifting Height: | 1.6m | Max. Lifting Height: | 12m |
Table Size: | 2900*1000mm | Overall Dimensions: | 2.75*1*1.6m | Weight: | 2600kg |
Certification: | CE & ISO9001:2000 | Warranty: | 12 Months | After-sales Service Provided: | Overseas third-party support available |
Product Description
MOBILE HYDRSAULIC SCISSOR LIFT/ LIFTING PLATFORM
Brief introduction
This series lift table has advantages including easy moving, large surface, strong carring capacity, allowing simultaneous operation of several persons, and safety&reliability, so it is the optimal product for aerial lifting operation.
This kind lift platform has several models on different standards
Lifting height: 4m, 8m, 10m, 12m, 14m, 16m, 18m.
Loading capacity: 300kg, 500kg, 800kg, 1000kg
can be customized :
TYPE | ZTSJZ0.3-4 | ZTSJZ0.3-6 | ZTSJZ0.3-8 | ZTSJZ0.3-10 | ZTSJZ0.3-12 | |
Working height | 6m | 8m | 10m | 12m | 14m | |
Platform size | 1900*800mm | 1900*800mm | 2300*1000mm | 2600*1000mm | 2900*1000mm | |
Lifting height | 4m | 6m | 8m | 10m | 12m | |
Dimension | 2.05*0.8*1m | 2.05*0.8*1.1m | 2.45*1*1.4m | 2.75*1*1.6m | 2.75*1*1.6m | |
Extend platform | 0.8m | 0.8m | 0.8m | 0.8m | 0.8m | |
Self-height | 1m | 1.1m | 1.4m | 1.6m | 1.6m | |
Guardrail | 1.1m | 1.1m | 1.1m | 1.1m | 1.1m | |
Turn radius | 1.6m | 1.6m | 2.3m | 2.4m | 2.4m | |
Loading capacity | 300kg | 300kg | 300kg | 300kg | 300kg | |
Wheel base | 1.5m | 1.5m | 1.8m | 2.2m | 2.2m | |
Ground clearance | 100mm | 100mm | 100mm | 100mm | 100mm | |
Weight | 1600kg | 1800kg | 2300kg | 2600kg | 2600kg | |
Tire size | 250*80mm | 250*80mm | 300*80 | 300*80 | 300*80 | |
Grade ability | 10% | |||||
battery | 4pcs 6V/180Ah | |||||
Controller | C101 | |||||
System voltage | DC24V | |||||
Traveling speed | stowed | 5km/h | ||||
Raised or extended | 0.8km/h | |||||
Lifting speed | 3-5m/min | |||||
Charge | 24/15A | |||||
Lifting motor | DC2kw/24v | |||||
Driving motor | DC0.75kw*2/24v |
Control system

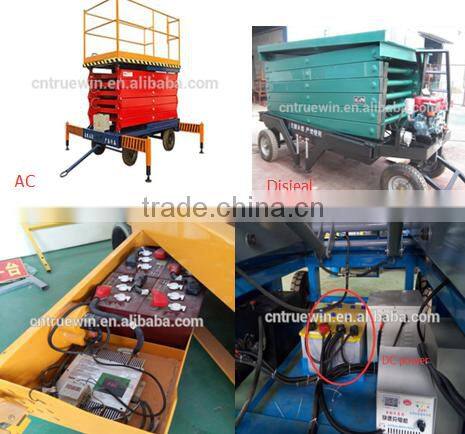

. mobile scissor lift driving force
A .Electric Powered / AC powered
· When the electricity is available, usually for Indoor use
· No noise and air pollution
· Voltage: 110V, 220V, 380V,
B.Battery Powered / DC powered
· When the electricity is not available, usually for Outdoor use
· No noise and air pollution
C. Diesel Powered
· When the electricity is not available, usually for Outdoor use
· Longer use time
Feature :
easily moved, spacious working platform, smooth working condition and high working efficiency.
-- Moving forward,turning around and lifting up are easily operated.
-- Operation-easy safe and service
-- Advanced safe feature
-- Safety & reliability.
-- Great reliability.
- Enhanced Productivity.
Safety
mobile scissor lift Safety protection
mobile scissor lift has various protection measures as follows
• Explosion-proof valves :protect hydraulic pipe ,anti-hydraulic pipe rupture
• Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure
• Emergency decline valve :it can go down when you meet an emergency
• Phase lack &phase dislocation protection
We are a professional manufacturer of kinds of Hydraulic Lift in China. Welcome to visit our website for more details
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
Shan Dong True Win Construction Material Co.,Ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company main products are: Mobile scissor lift, Self-propelled scissor lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties.
FAQ:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
