Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
Cheuk's
Model Number
CD20
Type
Other, Power Stacker
Power Souce
AC Motor
Rated Loading Capacity
2000kg
Max. Lifting Height
4000mm
Min. Lifting Height
120mm
Fork Length
1150mm
Fork Width
180mm
Overall Dimensions
Pls check
Certification
CE
After-sales Service Provided
No overseas service provided

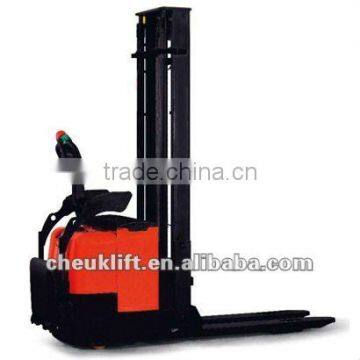

The specification of Power Stacker CD20 series
Characteris | 1.2 | Model of manufacture | Unit | CD2029 | CD2036 |
| 1.3 | Powersupply (electric,diesel,petrol,gas,mains Electric) | electric | |||
| 1.4 | Type of operation (hand, pedestrian, stand on, rider seated,order picker) | pedestrian | |||
| 1.5 | Load capacity / rated load | Q ( kg) | 2000 | ||
| Load capacity at mast lift | Q ( kg) | 12001) | |||
| Load capacity at support arm lift | Q ( kg) | 20001) | |||
| 1.6 | Load center distance | C ( mm) | 600 | ||
| 1.8 | Cantilever distance | X(mm) | 785 | ||
| 1.9 | Wheelbase | Y (mm) | 1603 | ||
| Weights | 2.1 | Weight (including battery) | kg | 1185 | 1220 |
| 2.2 | Axle loadings ladenfront/ rear | kg | 1085/2095 | 1100/2120 | |
| 2.3 | Axle loadings unladenfront/ rear | kg | 840/345 | 870/350 | |
| Wheels, Chassis | 3.1 | Tires(rubber, lkollan,pneumatic,polyurethane) | polyurethane | ||
| 3.2 | Tire size, front | mm | Ø 230 x75 | ||
| 3.3 | Tire size , rear | mm | Ø80x70 | ||
| 3.4 | Castor wheels (dimensions) | mm | Ø124x60 | ||
| 3.5 | Wheelsnumber(x=drivewheel)front/ rear | 1x+2/4 | |||
| 3.6 | Track width (rear ) , front | b10 (mm) | 680 | ||
| 3.7 | Track width(front) , rear | b11 (mm) | 395 | ||
| Basic dimensions | 4.2 | Lowered mast height | h1(mm) | 1998 | 2398 |
| 4.3 | Free lift | h2 (mm) | 1450 | 1800 | |
| 4.4 | Lift height | h3 (mm) | 2815 | 3515 | |
| 4.5 | Extended maximal height | h4 (mm) | 3351 | 4051 | |
| 4.6 | Initial lift | h5(mm) | 120 | ||
| 4.9 | Tiller height in neutrality position | h14 (mm) | 1287 | ||
| 4.15 | Fork height lowered | h13 (mm) | 90 | ||
| 4.19 | Overall length | l1 (mm) | 2195 | ||
| 4.20 | Length to front face of fork | l2 (mm) | 1033 | ||
| 4.21 | Overall width | b1 (mm) | 795 | ||
| 4.22 | Fork dimensions | s/e/l mm) | 60 / 180 / 1150 | ||
| 4.25 | Overall fork width(Upside / Under) | b5 (mm) | 575 | ||
| 4.31 | Floor clearance,centre of wheelbase | m2 (mm) | 28 | ||
| 4.33 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2667 | ||
| 4.34 | Aisle width for pallets 800x1200 lengthwise | Ast(mm) | 2607 | ||
| 4.35 | Turning radius | Wa(mm) | 1900 | ||
| Performan ce | 5.1 | Travel speedladen / unloaded | km / h | 5/5.5 | |
| 5.2 | Lifting speedladen / unloaded | mm/s | 144/170 | ||
| 5.3 | Lowering speedladen / unloaded | mm/s | 95/80 | ||
| 5.8 | Grade-abilityladen / unloaded | % | 6/12 | ||
| 5.10 | Brakes | Electric-magnetic | |||
| Electric motor | 6.1 | Drive motor | kW | 1.5 (AC) | |
| 6.2 | Lifting motor | kW | 3 | ||
| 6.3 | Battery acc. To BS, no | 3PZS | |||
| 6.4 | Battery voltage, normal capacity | V/Ah | 24/210-270 | ||
| 6.5 | Battery weight +/-5% | kg | 185-240 | ||
| Others | 8.1 | Type of drive control | 3-phase AC technology | ||
| 8.4 | Sound level at driver’s earsacc.to EN12053 | dB(A) | <70 | ||
1) in double-deck operation: mast lift 1000Kg support arm lift 1000Kg
Company Information
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
