Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
Cheuk's
Model Number
CL15
Type
Other, power stacker
Power Souce
AC Motor
Rated Loading Capacity
1500kg
Max. Lifting Height
5000mm
Min. Lifting Height
86mm
Fork Length
1150mm
Fork Width
550mm
Overall Dimensions
Pls check
Certification
CE
After-sales Service Provided
No overseas service provided

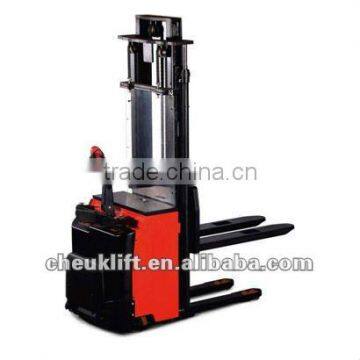

The Specification of Power Stacker CL15
| Identifica tion | 1.1 | Manufacturer`s type designation | unit | CL1540 | CL1546 |
| 1.2 | Drive:electric(battery or mains),diesel,petrol,fuel gas,manual | electric | |||
| 1.3 | Type of operation :hand , pedestrian, standing, seated, order-picker | pedestrian | |||
| 1.4 | Load Capacity/rated load | Q(t) | 1.5 | ||
| 1.5 | Load centre distance | c(mm) | 600 | ||
| 1.6 | Load distance ,centre of drive axle to fork | x(mm) | 678 | ||
| 1.7 | Wheelbase | y(mm) | 1300 | ||
| Weights | 2.1 | Service weight | kg | 1275 | 1300 |
| 2.2 | Axle loading,laden front/rear | kg | 1345/1430 | 1350/1450 | |
| 2.3 | Axle loading,unladen front/rear | kg | 930/345 | 940/360 | |
| Wheels, Chassis | 3.1 | Tyres:solid rubber,superelastic,pneumatic, polyurethane | polyurethane | ||
| 3.2 | Tyresize,front | 250×78 | |||
| 3.3 | Tyresize,rear | 80×70 | |||
| 3.4 | Additional wheels(dimensions) | 150×54 | |||
| 3.5 | Wheels,number front/rear(x=driven wheels) | 1x+2/4 | |||
| 3.6 | Track width,front | b10(mm) | 685 | ||
| 3.7 | Track width,rear | b11(mm) | 390/515 | ||
| Basic Dimensions | 4.1 | Lowered mast height | h1(mm) | 1895 | 2095 |
| 4.2 | Free lift | h2(mm) | - | ||
| 4.3 | Lift height | h3(mm) | 3914 | 4514 | |
| 4.4 | Extended mast height | h4(mm) | 4543 | 5143 | |
| 4.5 | Height of tiller in drive position min./max. | h14(mm) | 985/1365 | ||
| 4.6 | Lowered height | h13(mm) | 86 | ||
| 4.7 | Overall length | l1(mm) | 2055 | ||
| 4.8 | Length to face of forks | l2(mm) | 905 | ||
| 4.9 | Overall width | b1(mm) | 805 | ||
| 4.10 | Fork dimensions | s/e/l(mm) | 60/80/1150 | ||
| 4.11 | Width over forks | b5(mm) | 570/695 | ||
| 4.12 | Ground clearance,centre of wheelbase | m2(mm) | 26 | ||
| 4.13 | Aisle width for pallets 1000X1200 crossways | Ast(mm) | 2563 | ||
| 4.14 | Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2498 | ||
| 4.15 | Turning radius | Wa(mm) | 1640 | ||
| Performan ce | 5.1 | Travel speed,laden/unladen | km/h | 5/5.3 | |
| 5.2 | Lift speed, laden/unladen | mm/s | 105/170 | ||
| 5.3 | Lowering speed,laden/unladen | mm/s | 100/95 | ||
| 5.4 | Max.gradient performance,laden/unladen | % | 6/12 | ||
| 5.5 | Service brake | electromagnetic | |||
| E-Motor | 6.1 | Drive motor rating | kw | 1.2 | |
| 6.2 | Lift motor rating | kw | 3 | ||
| 6.3 | Batteryacc.to DIN,no | 3PZS | |||
| 6.4 | Batteryvoltage,nominal capacity | V/Ah | 24/270 | ||
| Others | 7.1 | Type of drive control | MOSFET Control | ||
| 7.2 | sound level at driver`s ear acc.to EN 12053 | dB(A) | 67 | ||
Company Information
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
