300HP Triplex Plunger Pumps
Specifications
Triplex Plunger Pump5'', 4 1/2'', 4'', 3 3/4'' plunger can be selected by different cementing rquirements.

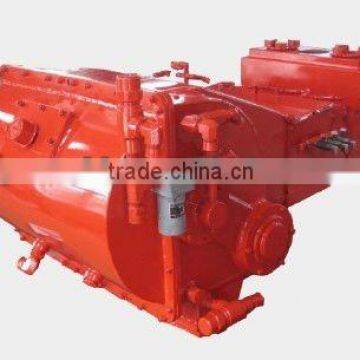

300HP Triplex Plunger Pump
This pump is a kind of horizontal triplex single function plunger pump. It can be widely used in the intermittent work over operations, such as in acidification, cementing, fracturing and etc. This pump consist of three important part of power end, fluid end assembly and speed reducer assembly, the plungers of 5'', 4 1/2'', 4'' and 3 3/4'' can be selected by different cementing requirements.
Performance Parameter | ||
Type: |
3ZB-265 |
|
Rated Power(kw): |
265 |
|
Stroke (mm/in) |
127 (5’’) |
|
Gear ratio: |
4.32:1 |
|
Length(mm)x Width(mm)x Height(mm): |
1760x1178x850 |
|
GW(kg): |
2050 |
|
plunger diameter(in) |
max pressure (Mpa) |
max displacement(L/min) |
3 3/4 |
70 |
950 |
4’’ |
60 |
1081 |
4 1/2’’ |
50 |
1368 |
5’’ |
38 |
1689 |
Performance
Plunger Diameter |
Displacement at Pump Stokes Per Minute |
|||||||||
50 |
100 |
200 |
300 |
350 |
||||||
inches |
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
3 3/4 |
36 |
10,150 |
72 |
7658 |
143 |
3829 |
215 |
2553 |
251 |
2190 |
4 |
41 |
8700 |
82 |
6715 |
163 |
3365 |
245 |
2234 |
286 |
1915 |
4 1/2 |
52 |
7250 |
103 |
5308 |
207 |
2654 |
310 |
1769 |
366 |
1523 |
5 |
64 |
5500 |
128 |
4293 |
255 |
2147 |
383 |
1436 |
446 |
1233 |
