Help Center3ZB-450 Triplex Plunger Pump
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
PETROKH
Model Number:
3ZB-450
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300HP Triplex Plunger Pump With High QualityUS$ 45,000 - 50,000MOQ: 1 Set -
1800HP Triplex Plunger PumpUS$ 71,500 - 80,000MOQ: 1 Set
-
3ZB-1490 Triplex Plunger PumpNegotiableMOQ: 1 Set
-
Fracturing Triplex Plunger Pump 1000HPUS$ 90,000 - 100,000MOQ: 1 Set
-
600HP Triplex Plunger Pump 3ZB-450US$ 68,000 - 70,000MOQ: 1 Unit
Place of Origin
Hubei, China
Brand Name
PETROKH
Model Number
3ZB-450
Specifications

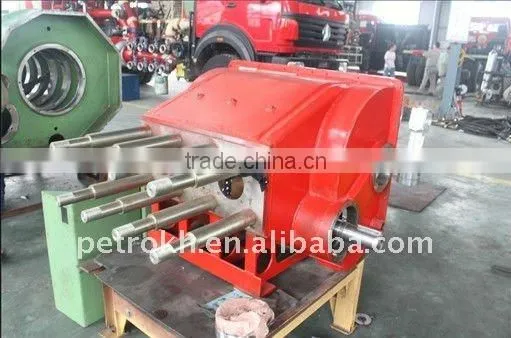

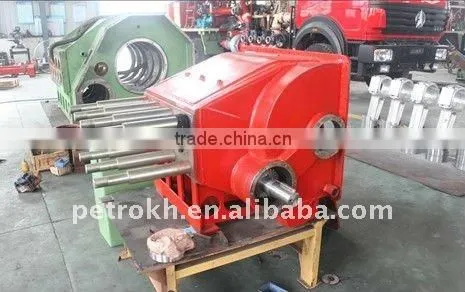

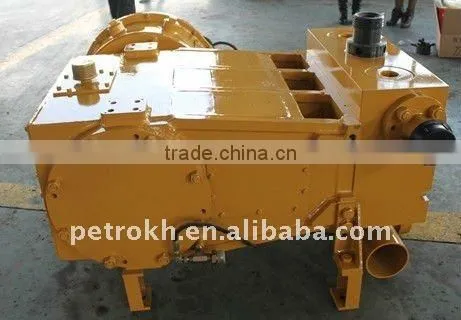

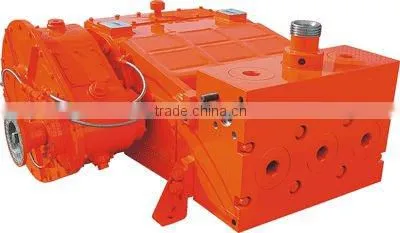

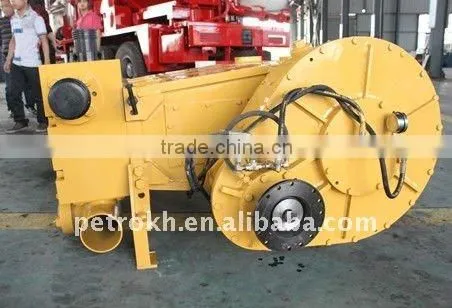

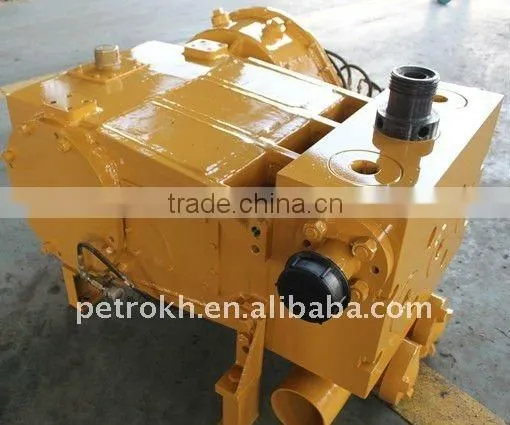

3ZB-450 plunger pump is horizontal single acting triplex plunger pump ,mainly consists of power end, gear reducer and fluid.General introduction
3ZB-450 plunger pump 3ZB-450 horizontal single acting triplex plunger pump mainly consists of power end, gear reducer and fluid end. Gear reducer can be installed on the left or right including seventeen (17) different installation positions, which is featured with flexible installation position, easy maintenance, etc. Fluid end is forged of quality alloy steel and fabricated by machining center with various plunger sizes. The pump is the optimized choice for HP cementing unit, featured by good quality, large power, high pressure, small size, light weight, etc.
Main Parameters
| Model | 3ZB-450 |
| Max braking HP(kW) | 600(450) |
| Max load,connecting rod lbf(kN) | 112050(498) |
| Stroke mm | 152.4(6″) |
| Gear ratio | 4.61:1 |
| L×W×H (mm) | 50.87″×53.78″×32.28″(1292×1366×820) |
| Weight lbs(kg) | 4751(2155 |
