Product Application

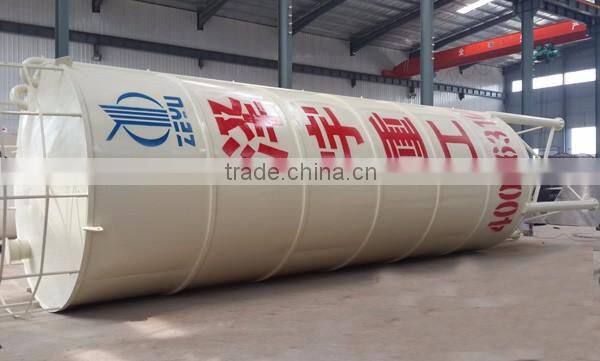

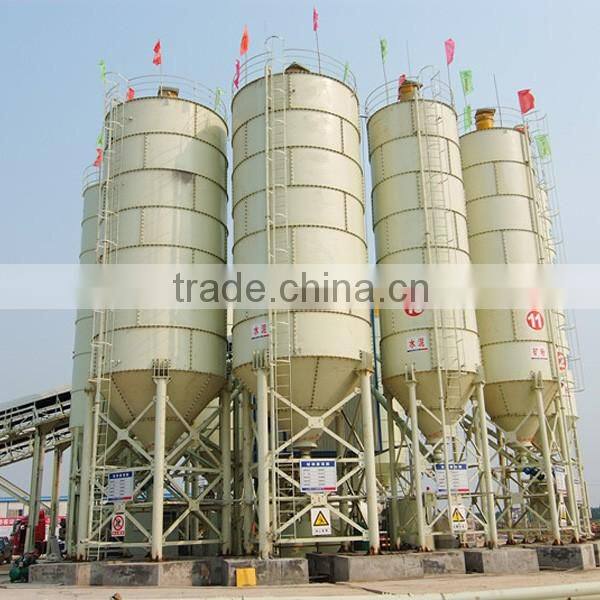

100t high quality bolted cement silo for sale is designed specifically for cement silo export packing difficult, on-site produce difficulties, difficulties in transferring the site, ultra-wide transportation and many other problems. Suitable for the storage of grain, cement, fly ash and other bulk materials.
Main Features of Assembly 100ton steel cement silo for cement storage
1) The cement silo is assembled by the below components: silo body, ladders,guardrail,charging pipe, dust collector,pressure sage valve,hi-low metering, discharging valve.
2) The cement silo is the cylindrical structure,four round legs support the bottom of the silo,the whole cement silo is the steel structure formed by welding, the dust collector and pressure safe valve is installed on top silo.
Machine Parts
Name: Dust collector
Brand: ZEYU
Original: China
During the cement is in transported, the operator must continuously press the motor button of the dust collector and shake down the cement attached on the bag, to prevent the bag blocked and cement silo with too much pressure to break.
Main Features
Name: Pressure relief valve
Brand: ZEYU
Original: China
One time the bag blocked, the pressure inner the silo is surpass the safe pressure of the pressure safe valve on silo top, the pressure safe valve will open and release inner silo, to prevent the accident of silo break.
Machine Parts
Name: Discharge valve
Brand: ZEYU
Original: China
When the cement need to be released, firstly to open the manual discharge valve at the bottom of the silo cone, the cement should carried out by the cement transport equipment. During releasing the materials, if the cement attach on the anchor breaker,need to press the button of the Solenoid valve on the anchor breaker timely to blow air and to eliminate the attached cement to feed the cement to keep cement charging fluently.
Main Features

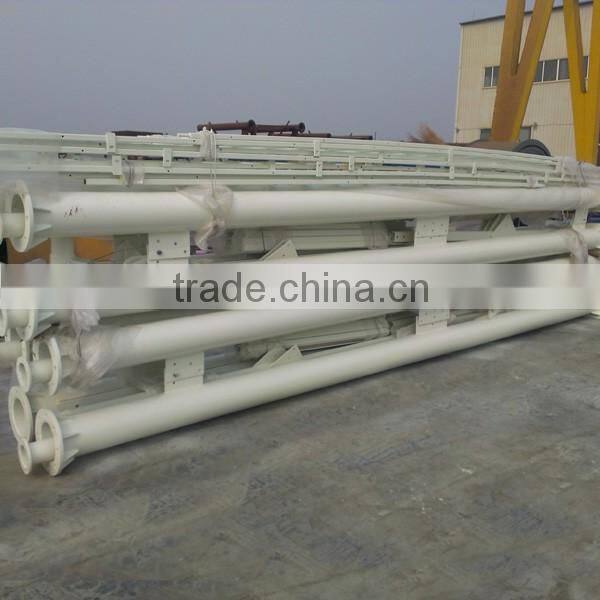

Name: Circular tube leg
Brand: ZEYU
Original: China
When silo working, it must be erected by the crane,and put it on the concrete foundation prepared, to keep the erected silo vertical with ground,and at last fix the silo bottom together with precast parts.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
