Home > Products > Square Pipe Knife-shaped Contact Fuse > 660V 630A NH3 Fuse
660V 630A NH3 Fuse
- 1500 Piece / Pieces per Month
- Ningbo Shanghai Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | SLFC | Model Number: | NH3 |
Type: | Fuse Link |
Packaging Details
Inner : Plastic bag and inner box
Outer: Standard export carton
QTY : 1pcs/inner box,24pcs/carton
Carton dimension :44cm*34cm*20cm
Product Description

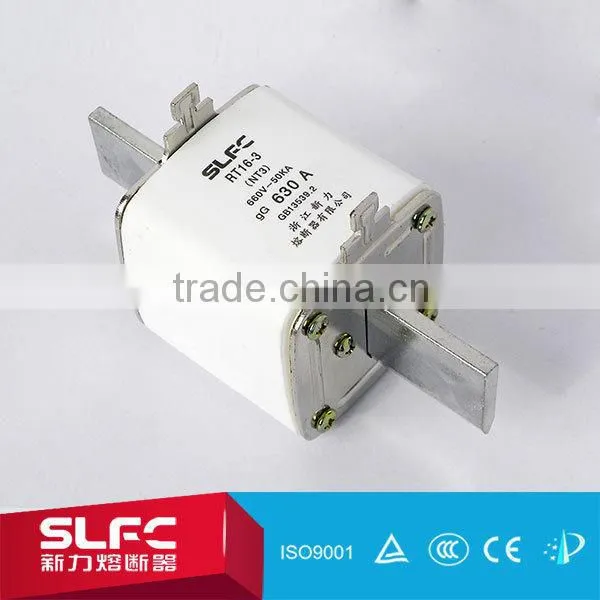

660V 630A NH3 Fuse
1. Application
This series fuse is suitable for AC 50Hz, rated voltage to 1000V, rated current to 1250A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short circuit (aM). The rated breaking capacity is to 120KA. They conform to national standard GB13539 and international electrical committee standard IEC60269.
2.Construction Feature

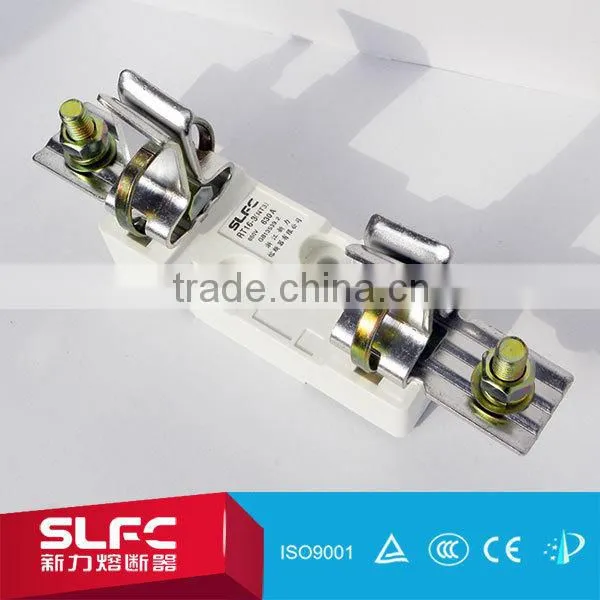

This series of fuse consists of fuse link, fuse base and carrier fuse. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the square fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate(or junction panel) and to form the square knife shape contact structure. The fuse may have fuse indicator or striker, when the fuse element fusing it can demonstrate fusing (indicator) or transforms each kind of signal as well as automatic transfer circuit (striker). The fuse base consists of high temperature resistance resin plate(or high intensity porcelain plate) and wedge-shaped static contact to form open-type structure and it can be used as the supporting device of the appropriate size of the fuse link. This series of fuse has many merits such as good in heat dissipation, high mechanical strength, reliable in contact, convenient in performance and so on.
fuse model |
rated vltage (V) |
rated current (A) | overall dimension/size(mm) | ||||||
common (gG) | fast (aR) | A | B | C | D | H | |||
NTA3 | RS34Z | 500/660 | 315~630 | 150 | 68 | 32 | 67 | 82 |
Packaging details :
Inner : Plastic bag and inner box
Outer: Standard export carton
QTY : 1pcs/inner box,24pcs/carton
Carton dimension :44cm*34cm*20cm
Delivery details :
1 - 3 days according to your quantity.
Delivery by express or by sea based on your require.
1.Your inquiry will be replied within 12hrs.
2.Design for special packing, Products printing and logo OEM.
3.Freight forwarder:faster,safer,and convenient.
WORKSHOP
CERTIFICATES
EXHIBITION
1.Do you have any experiences?
We export regular orders to Asia, Africa,Middle East, America,South America etc.
2.Can I get samples before order?
Sure, we offer samples for quality check.
3.Can I customize some special product and make my logo on the product?
OEM and ODM are welcomed. We always focusing on customer service.
4.What are your payment terms?
Western Union, Ali Escrow, MoneyGram,T/T and L/C are available.
5.What certificates you have?
ISO9001.CE,TUV,RoHS etc.
Why DO You Choose Us?
1. Premium Quality for High Reliability
2. Competitive Price
3. Unique Design
4. Excellent Service
5. Solutions for Any Budget
CONTACT US
Zhejiang Xinli Fuse Co.,LTD
Mr Kevin Dong (Manager)
Cell:0086 15267773846 ( whatsapp & wechat & viber )
Tel: 0086 577 61710887
Fax: 0086 577 62795588
Skype: shawn-tung
Web:
Company Profile
Zhejiang XinLi Fuse Co,LTD., located in the "China Electric Capital" Liushi,Yueqing, Zhejiang ,where have convenient transportation\advanced logistics\perfect appliance chain.And our predecessor company is Yueqing SanLi Fuse Factory,which founded in 1998, promoted to be Zhejiang Xinli Fuse Company Limited in 2009, is a professional fuse supplier specialized in developing, producing, trading and servicing.The company always adhere to the professional development, People-oriented\Continuous innovation, efforts to build efficient and harmonious XinLi team.We committed to Photovoltaic power generation\Wind power generation\Electric Vehicles\High Speed Rail and bullet train\meteorological lightning protection\power protection\communications security and other fields, providing customers with quality products and comprehensive solutions.
We attach great importance to product testing and production equipment at its inception,now we have intelligent laboratories to accept and complete every testing efficiently after continuous improvements.Production equipment meet the requirement of designing,mold opening, parts manufacturing and product assemblying.We also have a professional team for automated production, keeping exploring improvement of the production process to ensure high product quality and consistency.
We have passed the "ISO9001 Quality System Certification"\and get"National Mandatory 3C Certification"\ "EU CE Safety Certification"\ "TUV Rheinland Certification",acquire more than 30 national patents after years of development,and was invited to edite the fuse national standards many times.
Xinli's mission is "Let the electricity be more safety",be more professional,we will supply more perfect products and better service to feedback the users,and let us work together and recreate new great glory in the future development of the road!
