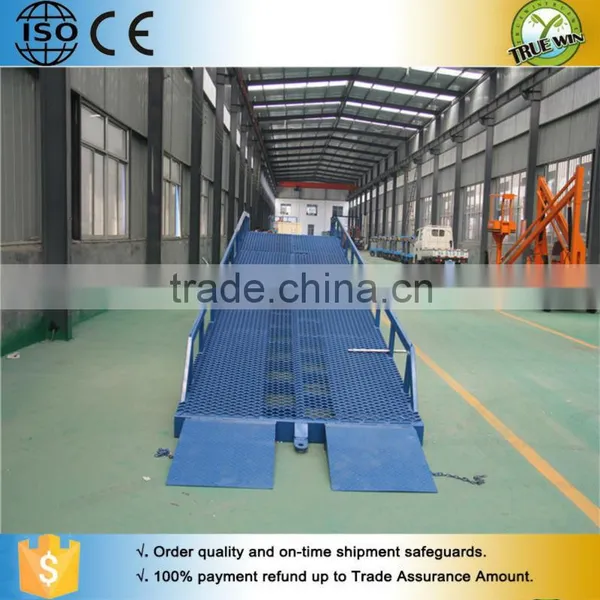

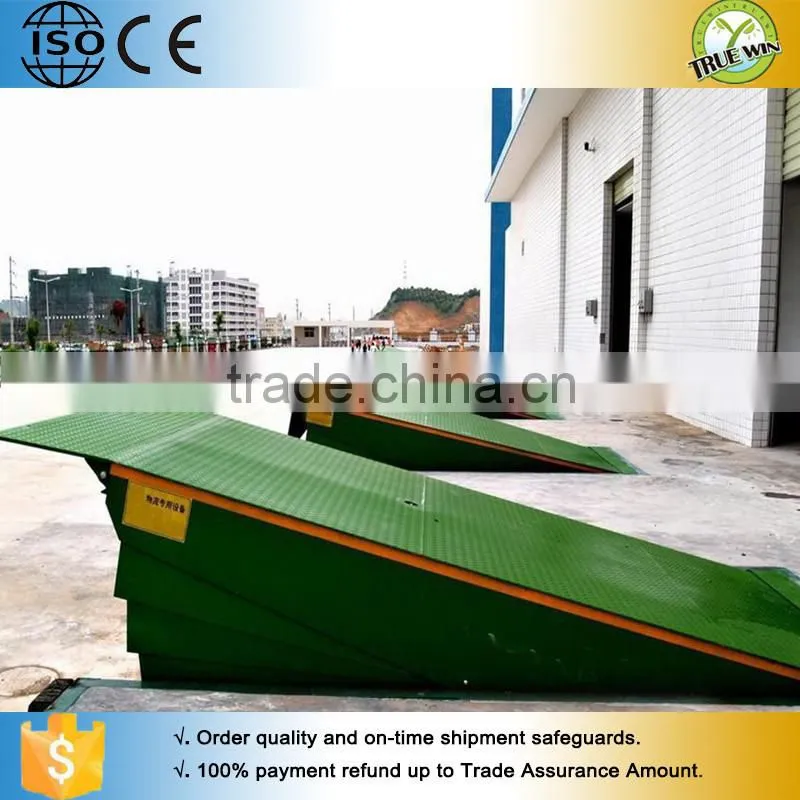

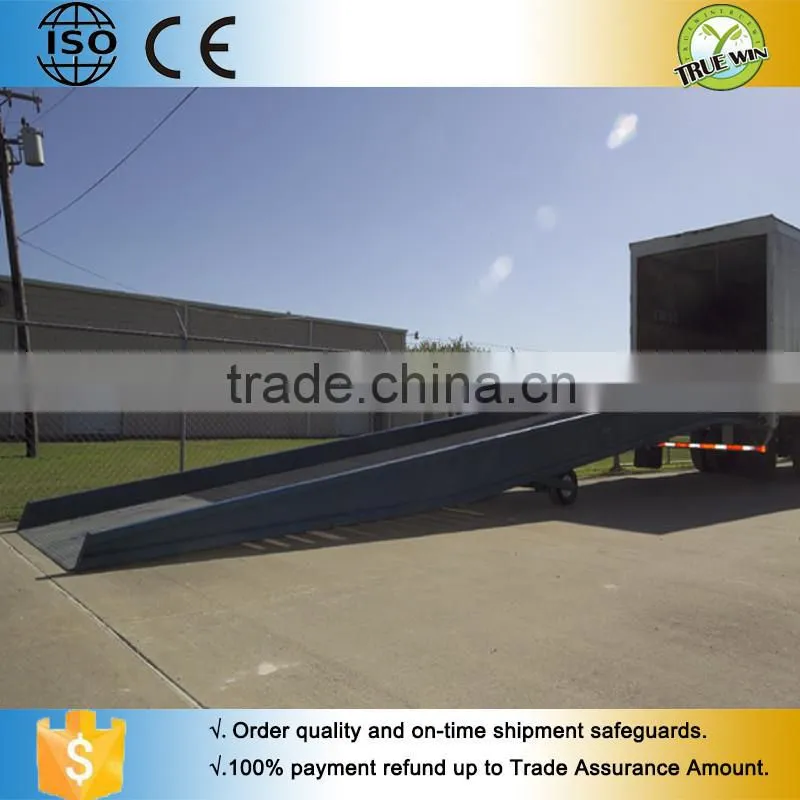

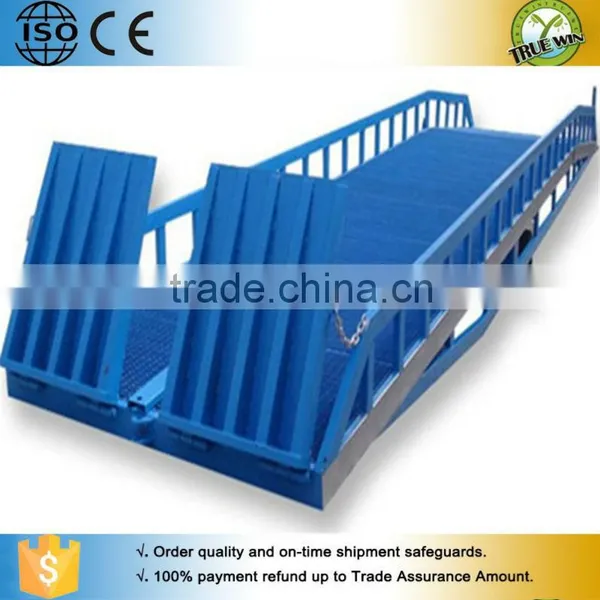

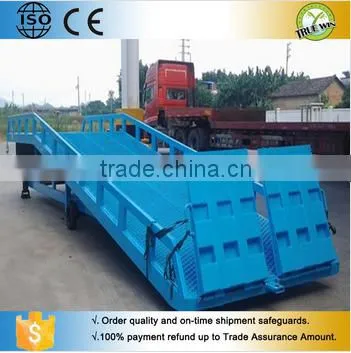

Customized mobile forklift fingerboard loading ramp

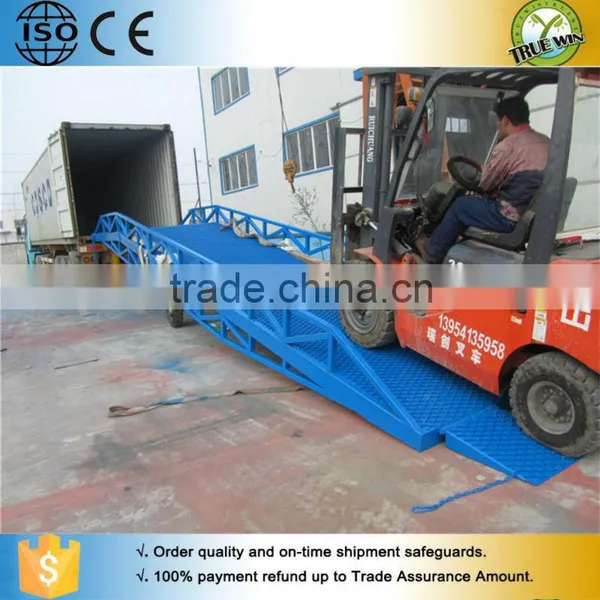

The Customized mobile forklift fingerboard loading ramp is an auxilisry facility associated with the forklift to load or discharge cargo. With it, forklift can drive into the compartment directly to carry out batch handling. The product can be manual hydraulic lift, without extral power source. Only by one person, the whole loading and discharging cargo operation can be done, which reduces abundant labors, improves the productivity grately, accelerates cargo transfering speed, gets more benefit.
| Model | Load | Platform Size | Lip | Travel | Power | Pit Size | |||
| Up | Down | L | W | H | |||||
| DCQ6-0.55 | 6 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ6-0.7 | 6 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
| DCQ8-0.55 | 8 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ8-0.7 | 8 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
| DCQ10-0.55 | 10 | 2000*2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ10-0.7 | 10 | 2500*2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
1.With mannual oil pump for aviation special use , durable and safety.
2. With checkered steel, possibly to work under the snowy and rainny weather.
2.with hydraulic pump,or electric power source ,easily to adjust the height of the ramp.
3.withthe anti-skid steel fingerboard plate ,durable,non-flooded,and not easy to be deformed.
4.with pneumatic tyres , safety and easy to control during operation .

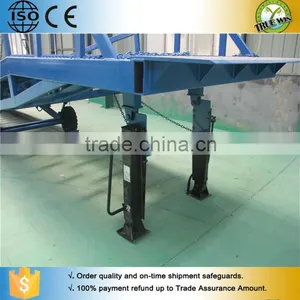

5. Adjustable standing legs prevent the truck from leaning.
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. Reply your inquiry in 24 working hours
4. Customized design is available,OEM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision
6. Offer customer the lowest price with high quality lifting machine
Shandong true win construction materials co.,ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company mainproducts are: Mobile scissor lift, Self-propelled lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties. They are widely used for many industries such as plant maintenance, industrial installation, equipment's repair and maintenance, property management, warehouse, airport, port, station, gas station, stadium, museum, exhibition hall. All of our products have passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China and also has passed ISO9001--2000 quality system certification , the quality and performance of our products have won acceptance,all its products are not only sold well at home, but also exported to 30 countries around the world,mainly in Europe , south-Africa ,middle-east,south-east Asia,USA and south-Africa.Our products can fully meet the needs of different customers ,If you are interested in our products, please feel free to contact us for more information. We will be your the best reliable friend with our complete product range, excellent product quality and best sales services.
Annual maintenance:
A.check the connection parts between hydraulic and pipeline. Damaged pipeline should be replaced and loose connection should be tighted immediately.
B. Demount and reset the the down valve after blowing out the dust with compressed air .
C. Open the empty tank after discharging all the hydraulic oil,then pick out and wash off the filter. Reset the filter into the tank as previously. Fill the new oil into the tank.
D.Fill the new oil into the tank,instead of the used oil which could accelerate the wear of main components.
Mensual maintenance:
A. Check lubrication and wear condition of roller, intermediate shaft and bearing,Oil cylinder pin shaft and bearing,Boom hinge shaft and bearing.
B. Filling lubricating oil into the parts above to prolong the service life of bearing.
C. Check the hydraulic oil and oil level. The hydraulic oil level should be above the tank bottom 40-50 mm when the lifting platform rose to the highest . Hydraulic oil getting dark, or sticky, or gravel in the oil,replace the hydraulic oil timely. Lifting platform hydraulic system applies to 32 # hydraulic oil.
