China height adjustable container loading unloading ramp

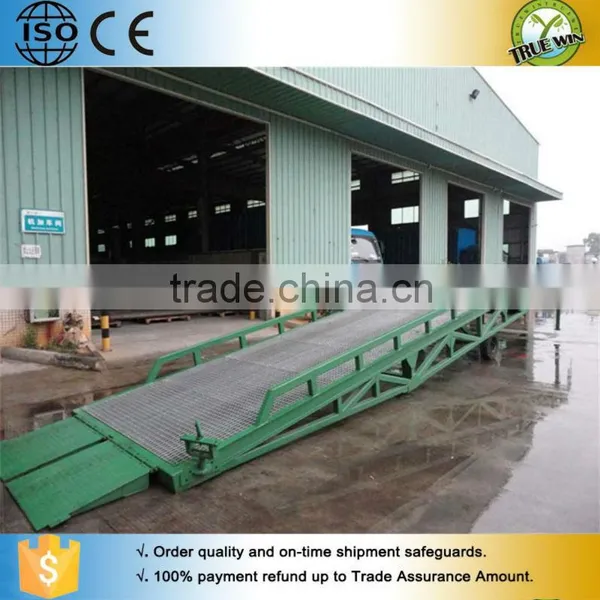

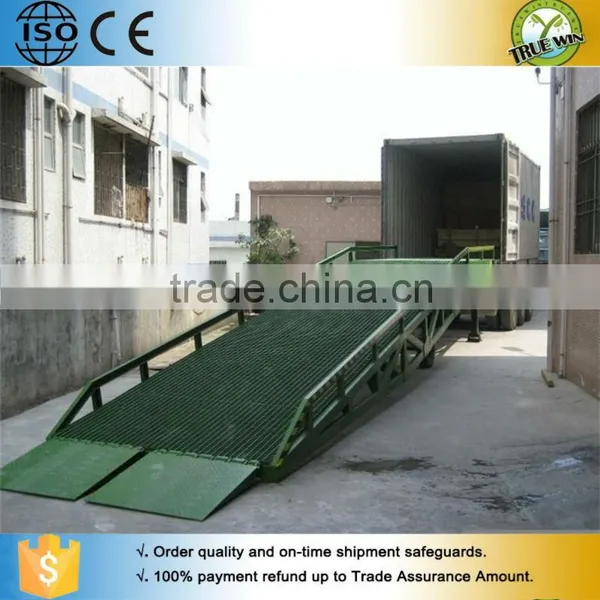

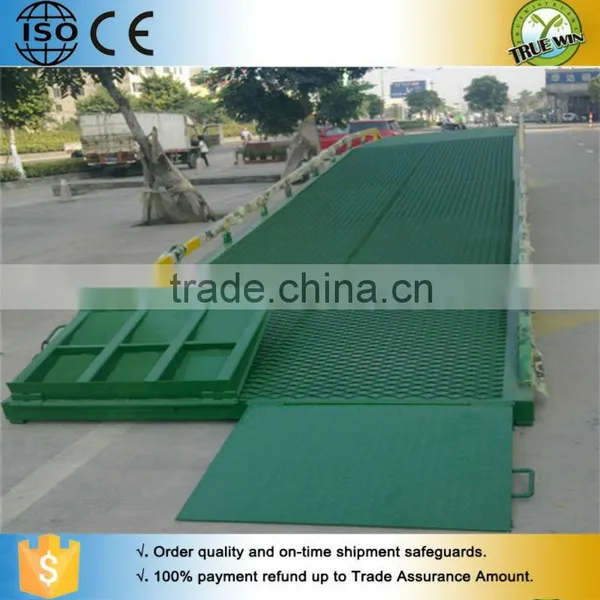

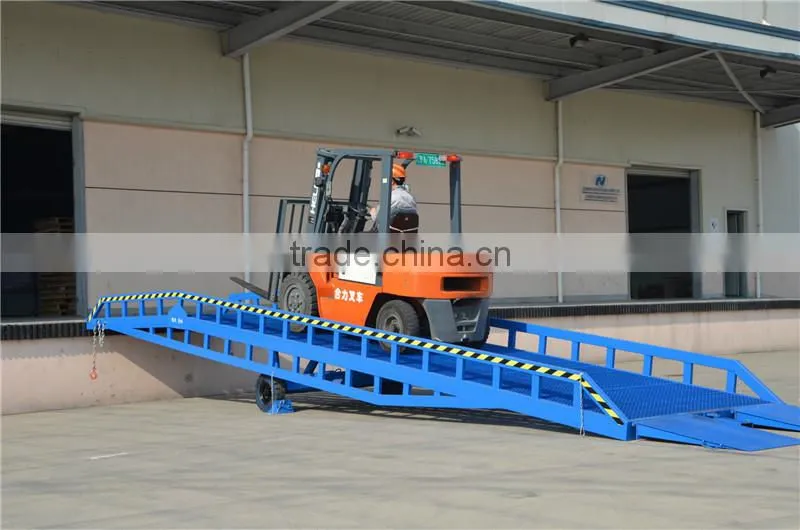

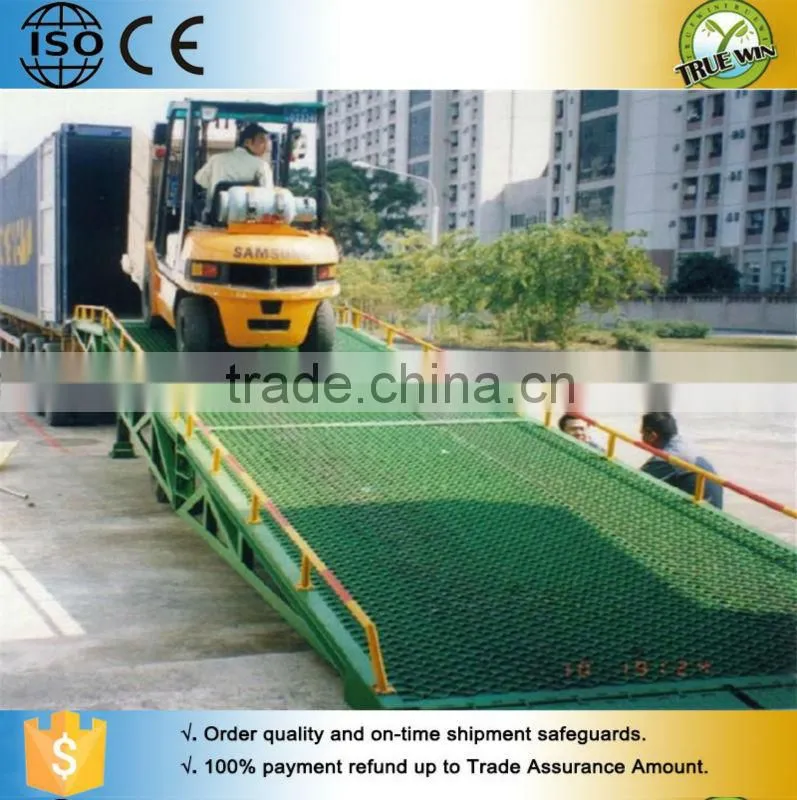

Mobile dock ramp is becoming more and more popular in warehouse, wharf, logistic center, factroy and other working place, loading and unloading from container or truck. Its height can be adjusted with the different heights of lorries. The ramp can be operated by single person easily.
Mobile Loading Dock Ramp Information | ||
1> The regular mobile of this ramp is : width -2m length -11.2m, | ||
2> Adjusting height range -0.8m-1.85m, | ||
3> And it aslo can be designed and produced accordign to customers requirements . | ||
4> This machine is suit for :often materail handling ,warehouse .wharf ,logistics center working place | ||

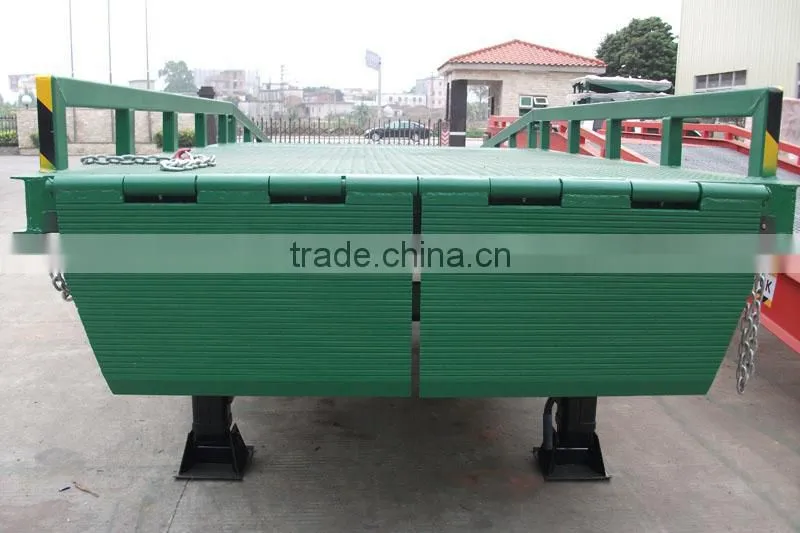

Mobile Loading Dock Ramp (with landing gear) Dimension | ||
1 |
Model Number: |
DCQY -10 |
2 |
Rated Loading Capacity: |
10 Ton |
3 |
Working form: |
With landing gear (manual one) |
4 |
Max adjustable height: |
1800mm |
5 |
Overall length* Overall width: |
11200*2100mm |
Platform Size: |
2400*2100mm |
|
Slope Size: |
7500*2100mm |
|
6 |
Table Material: |
Gear steel grating (Function:anti-skidding, avoid ponding) |
7 |
Lifting plate: |
Size:1000mm Plate Lip: 300*20mm |
8 |
Landing gear |
Quantity: 1 Pair Static Load: 40 TON |
9 |
Solid tire |
Size: 500-8B Diameter:450MM |
10 |
Safety locking |
Quantity: 2 pcs |
|
Function: lock the container when loading and unloading | ||
Foldable front lips(12mm steel plate) can meet the height changes of trucks.
Moves easily on two big pneumatic tires(solid tires available).
A manual 2-speed hand crank for easy one-person height adjustment.
(Optional hydraulic pump or hand crank for positioning yard ramp height).
Our products are widely used in terminals, stations, warehouses and other places. According to the different
needs of users, as the special design in terms of dimensions, load bearing and so on. Hydraulic loading ramps
mounted on the side of the dock, and the dock floor and sides flush

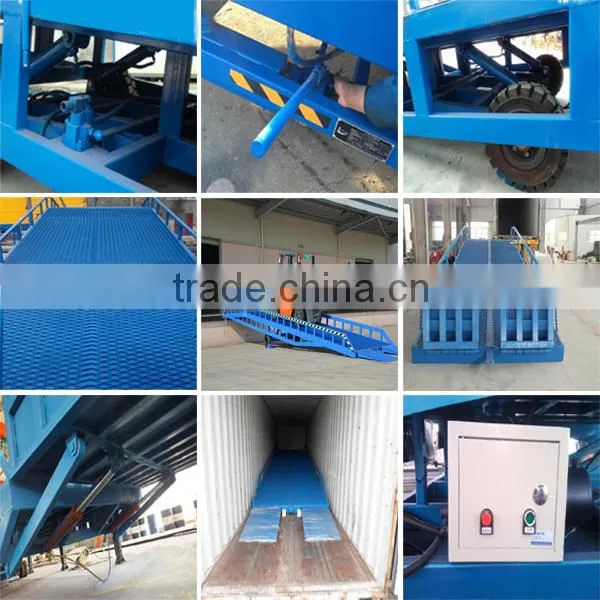

Details&parts:
Certification:

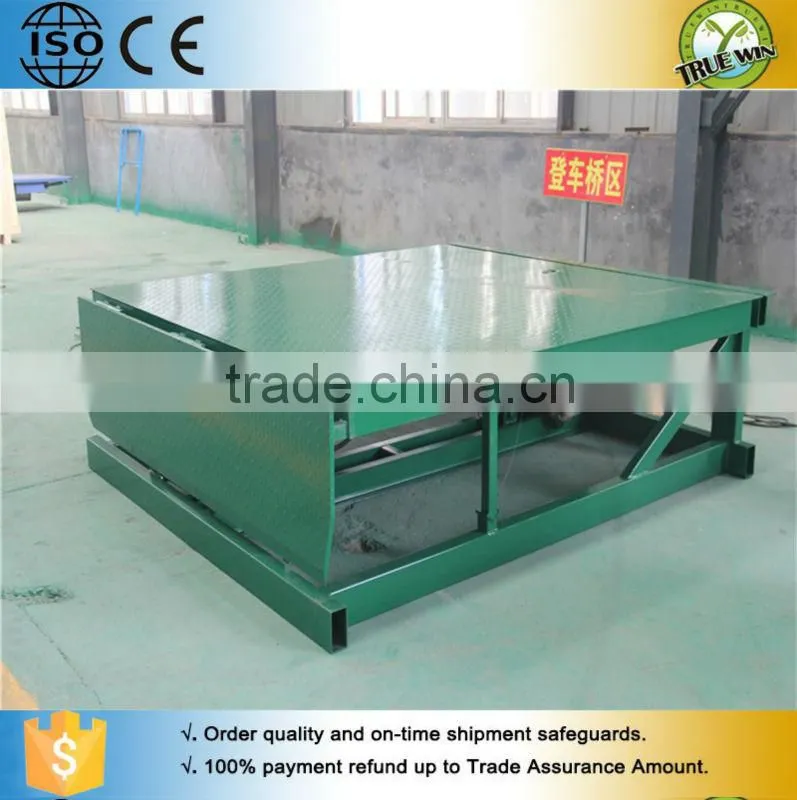

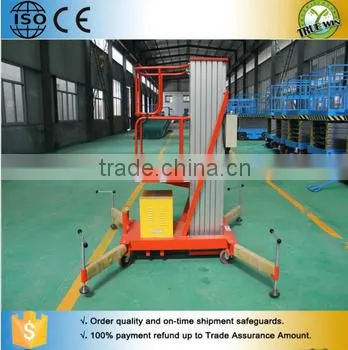

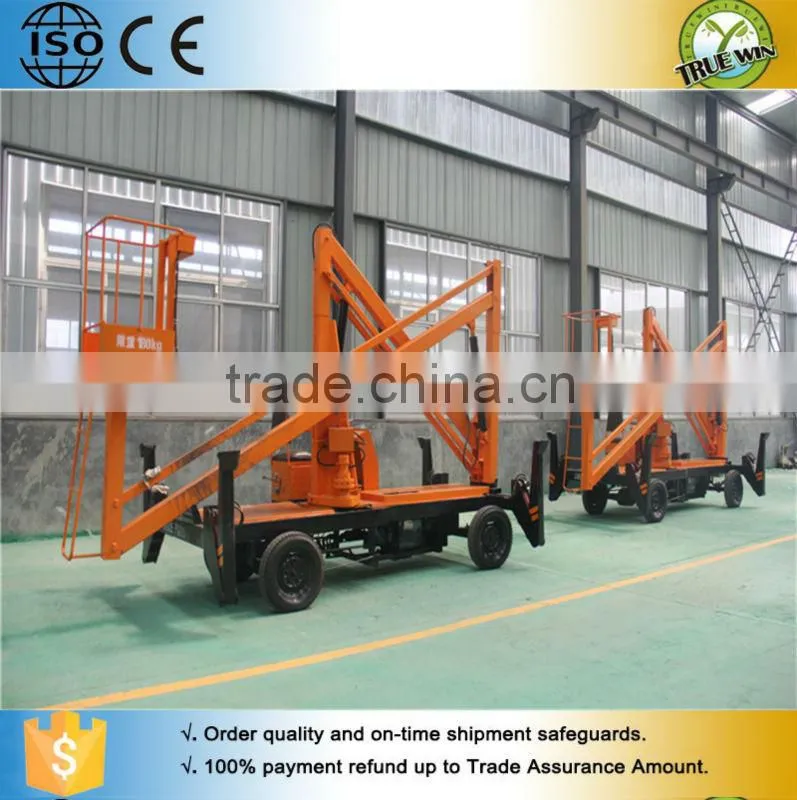

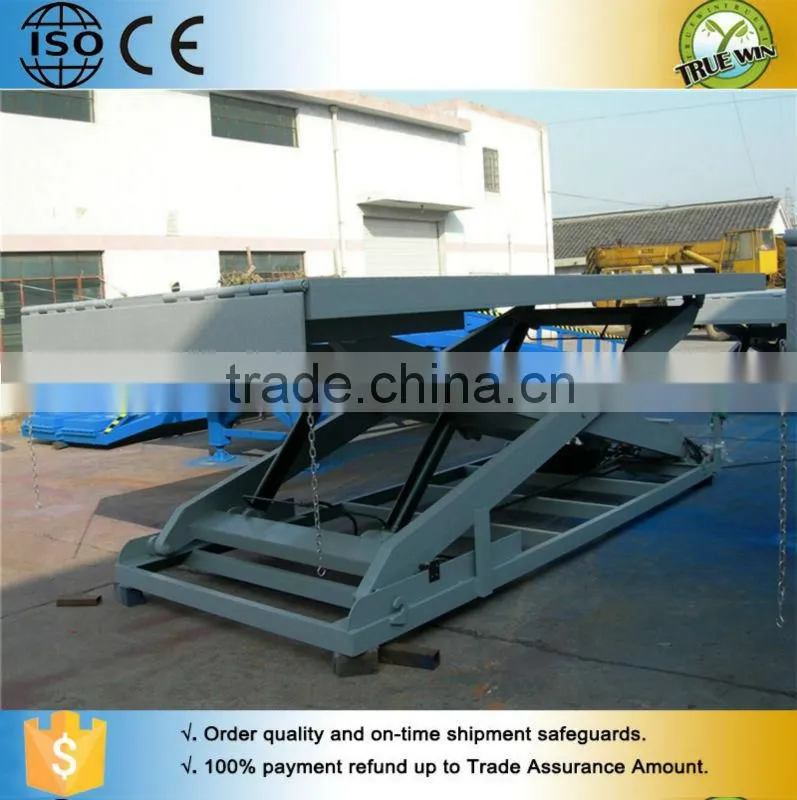

Hot Selling products:
Team&Clients:
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
