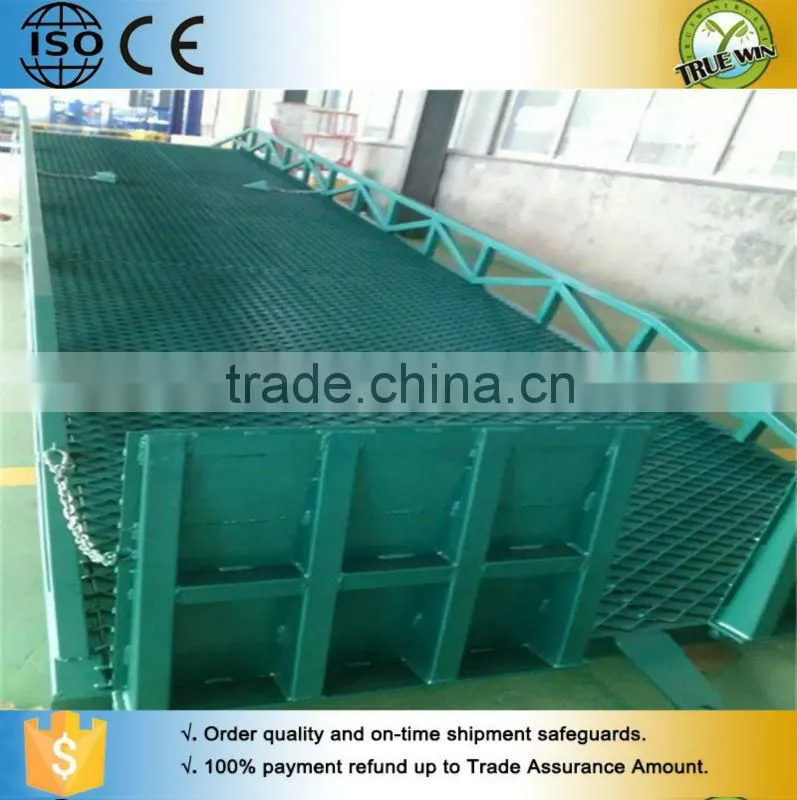

Mobile dock ramp for warehouse
A Yard ramp is a movable metal ramp for loading and unloading of shipping containers and vehicle trailers, without the need for permanent docking bays. Whenever you need it, a True Win Yard Ramp moves there easily. Faster turnarounds in shipping and receiving areas will save time and money when you use our Yard Ramps.A True Win Yard Ramp is an efficient alternative to costly dock-well construction as well as a safer, faster alternative to other types of loading/unloading equipment. For production line feeding or in warehouse use, our Yard Ramps help deliver materials closer to where they are used or stored and they can be used indoors as well as out.
Mobile Loading Dock Ramp Information | ||
1> The regular mobile of this ramp is : width -2m length -11.2m, | ||
2> Adjusting height range -0.8m-1.85m, | ||
3> And it aslo can be designed and produced accordign to customers requirements . | ||
4> This machine is suit for :often materail handling ,warehouse .wharf ,logistics center working place | ||
Mobile Loading Dock Ramp (with landing gear) Dimension | ||
1 |
Model Number: |
DCQY -10 |
2 |
Rated Loading Capacity: |
10 Ton |
3 |
Working form: |
With landing gear (manual one) |
4 |
Max adjustable height: |
1800mm |
5 |
Overall length* Overall width: |
11200*2100mm |
Platform Size: |
2400*2100mm |
|
Slope Size: |
7500*2100mm |
|
6 |
Table Material: |
Gear steel grating (Function:anti-skidding, avoid ponding) |
7 |
Lifting plate: |
Size:1000mm Plate Lip: 300*20mm |
8 |
Landing gear |
Quantity: 1 Pair Static Load: 40 TON |
9 |
Solid tire |
Size: 500-8B Diameter:450MM |
10 |
Safety locking |
Quantity: 2 pcs |
|
Function: lock the container when loading and unloading | ||
Foldable front lips(12mm steel plate) can meet the height changes of trucks.
Moves easily on two big pneumatic tires(solid tires available).
A manual 2-speed hand crank for easy one-person height adjustment.
(Optional hydraulic pump or hand crank for positioning yard ramp height).
Without installation and easy operation
Adopting high strength steel,structure is solid and durable
Easy and convenient maintenance
Improving working efficiency, reducing the manpower cost
Details&parts:
Certification&TradeAssurance:
Hot Selling products:
Team&Clients:
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
