GPS tracking hardware with tracking software

Name: GPS tracking hardware with tracking software
Brand: TRACKPRO
Price: USD $55 - 69 / Piece

FOB Price

USD $55 - $69 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port FOB Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Other, Gps Tracker, Gps Tracker	Use:	Automotive	Screen Size:	Other, NULL
Function:	Other, tracking and Fleet management	Place of Origin:	Guangdong, China	Brand Name:	TRACKPRO
Model Number:	TR20	Warranty:	2 Years

Product Description

GPS tracking hardware with tracking software

Product Overviews

Specification

Enclosure dimensions	93mm62mm25mm
Weight	200g
DC Tolerance voltage	9V - 35V
GSM Module	850/900/1800/1900MHz
GPS Module	MTK
Protocol	NMEA0183
Number of Channels	Hundreds of Channel Simultaneous Operation
Current (GPRS online)	60mA
Current (GPRS transmission)	80mA
Sleeping mode	40mA
Accuracy Horizontal	<5 meters (50%), <8 meters (90%)
Altitude	<10 meters (50%), <16 meters (90%)
Velocity	0.06 m/sec.
Hot Start:	<13 sec
Warm Start:	<42 sec
Cold Start:	<84 sec
Backup battery	800mAh
Communication	GPRS SMSRS232
Operating Temperature	-40°C to +55°C
Storage Temperature	-40°C to +65°C

Features

History route playback
lifetime free platform
Hidden gps tracker
Real time tracking
Accurate position
Geo-fence
Global location
Built-in back up battery
Viarous Reports supported
SMS / GPRS / Internet data transmission

Functions

1.Report:

Intelligent report
Fixed time/distance report
Direction change report
Over speed report
Report simple (very easy compatible with your software)

2.Alarm:

SOS alarm
Lower battery alarm
Arming and disarming
Emergency release

3.Other:

Geo-fence
Parameter configuration (via sms or pc-setup setup it)
Support Tcp/udp communications
Built in memory, storage the data in no gsm signal place.
Odometer or mileage(Via gps calculates mileage)
Prevent static excursion.
ACK check enable or disable
SMS function
Built in backup battery, Lower battery alarm/power cut alarm
Remote fuel cut off
Sleeping mode
Remote Door Lock/unlock control
Panic
Anti-car jacking

4. Options:

Temperature sensor
Fuel sensor
Odometer sensor (Via odometer pulse get odometer)
silk-screen logo

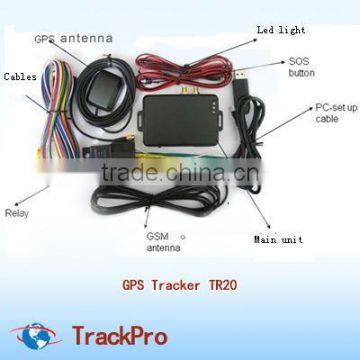

Physical Display

Applications

Best mounting places

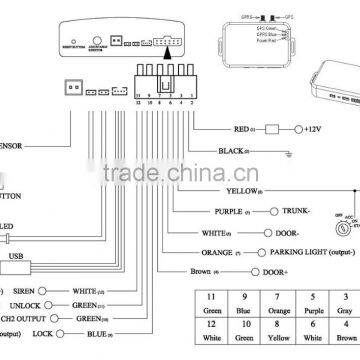

Installation Diagram

Packaging

Optional accessories

Temperature sensor
Fuel cable
Fuel sensor

Deliver within 2-7 days after confirmed payment. You could choose the Courier!

Our Services

CE and FCC certificates.
Open protocol and accept customization.
Offer remote help in the installation and Operation Guide of the product and server for customers.
2-year warranty, Can replace new product within one year for any non-man made quality problem.
Offer remote help in the installation and use of the product for customers. Life-time technical support.
PC based and web based GPS tracking software for free for the first year. Over 300pcs order
quantity can enjoy free software to install on your own server.

Company Information

TrackckPro Industrial Co., Ltd., which founded in 2000, is a high-tech enterprise specialized in customized GPS series device, including GPS tracker/GPS tracking system, Vehicle alarm system, GPS tracker covert. We pay attention to manufacture and marketing both domestically and overseas. Our business guideline strives for 100% customers' satisfaction through continuous improvement of working methods and processes. Our mission remains to develop tiptop products with the reasonable prices while defining industry standards for quality, reliability and innovation.

Factory Display

Software display

Locating on web-based gps tracking software

Android/IOS app also supported

FAQ

Q: Why the tracker can't be switched on?

A: 1. Check if wiring is correct or not.

2. Charge the tracker.

Q: No response to SMS command

A: 1. Wrong password. Please check your password.

2. No GSM mobile signal or weak GSM network. Try later.

3. Out of SIM credit. Please pop up.

4. SIM is damaged. Change a sim card.

5. SIM card is without sending function. Change a SIM or enable SMS sending function and caller identification function.

6. SIM card isn't installed properly.

Q: Is there a monthly charge for it to communicate with me. Does it require a cellulare service provider or something else?

A: Two communication ways: SMS ( just like one mobile phone to another) and GPRS ( monitor/manage the tracker on our tracking platform) . These two ways are both charged by your local telecom carrier, we don't charge for the SMS or GPRS fee.

Note:

1. you can just choose one or both two of the two way communications to get the real time location info and so on from the tracker : SMS or GPRS or both )

2. No matter via SMS or GPRS communication, there is one simcard(the one has gprs function and caller identification function, you'd better buy from the local telecom carrier) needed to be inserted in the tracker. NO data plan required by us.
