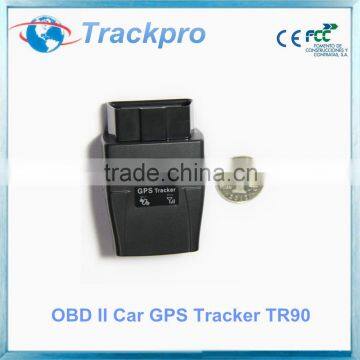

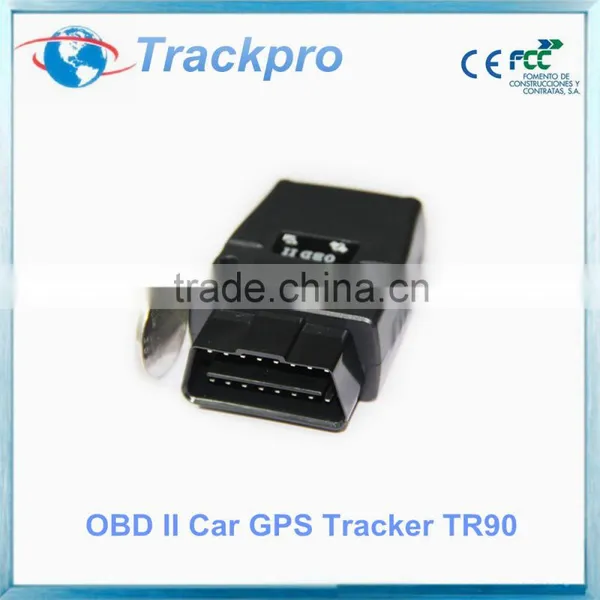

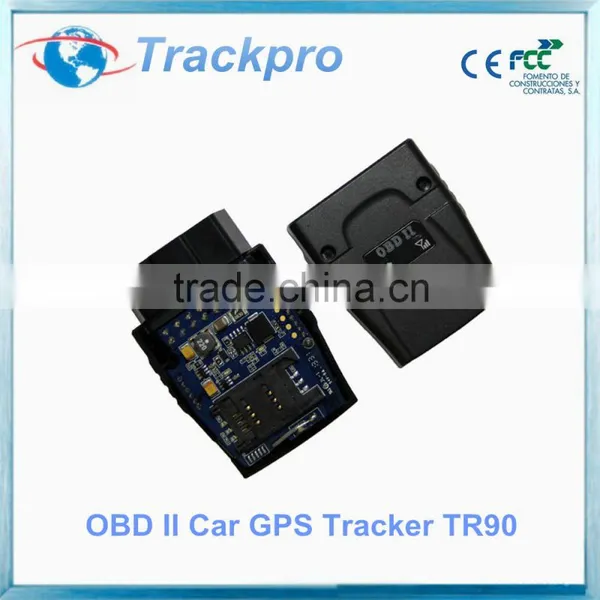

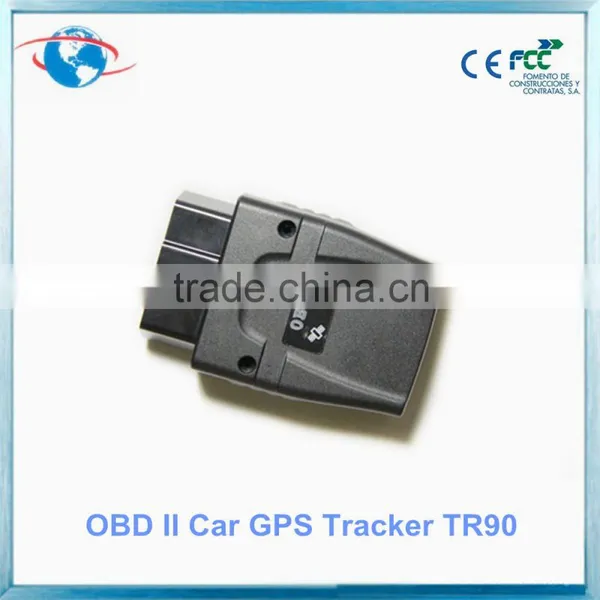

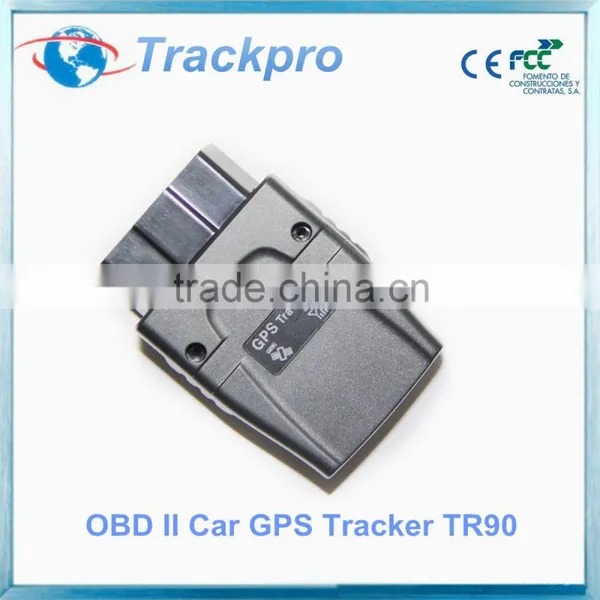

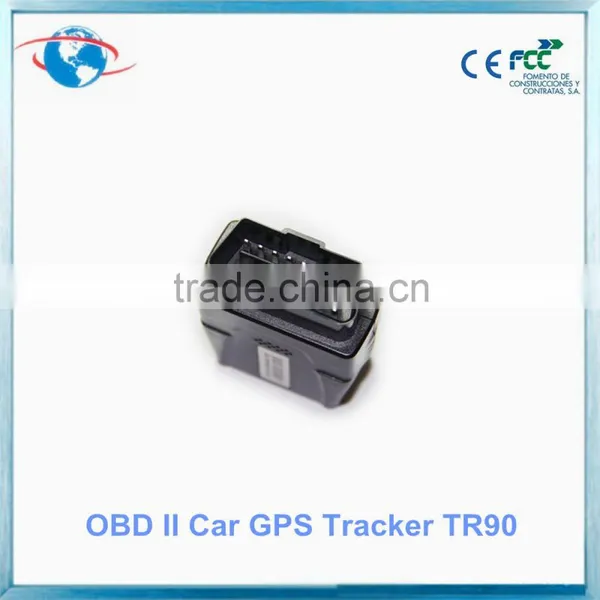

OBDii gps tracker extension cable optional tracking device
Specifications
Voltage |
12VDC/24VDC |
Standby Current |
<10mA@12V |
Work current |
<40mA@12V |
Battery Capacity |
200mAh |
GPS positioning accuracy |
15m |
GSM positioning accuracy |
100m |
GPS Frequency |
1575MHz |
GSM Frequency |
850/900/1800/1900MHz |
Hot/warm/cold start time |
<3s,<15s,<60s |
Dimensions (mm) |
L*W*H:56.5 X 47 X 24.6 |
Net Weight |
56g |
Operating Temperature |
-20°C to 70°C |
| Operating Humidity | 20% to 80% |
Features
- Free installation, plug-n-play
- Iphone&Android APP Software
- Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world
- GPS precise positioning with A-GPS and uploaded by GPRS regularly, supports real-time tracking and history track playback
- Web brower platform, Smart phone app platform and SMS query
- Built-in battery, Power disconnect alarm&Low battery alarm
- Alarms
- Vibration Alarm(You need to set Vibration sensitivity and time, there are arm/disarm switch
- Collision/falling alarm
- Speed alarm
- Geo-fence Alarm(You need to set the conditions of crossing fence, fence types and so on)
- Unplugging Alarm
- Low battery Alarm
Physical Display
Installation Guide
The connector is underside of your dashboard, below your steering wheel but above your gas and brake pedals.
The connector may be covered by a small flap, but will usually be visible without requiring any disassembly.
1. Offer remote help in the installation and use of the product and server for customers
2. Free Android and IOS app
3. you can also just host your gps trackers on our gps tracking software. Our software is compatiable with most trackers in the market
4. Professional engineer will always be there for your technical support!
Locating on web-based gps tracking software
Android/IOS app also supported
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function and caller identification function.
6. SIM card isn't installed properly.
Skype: trackpro18
