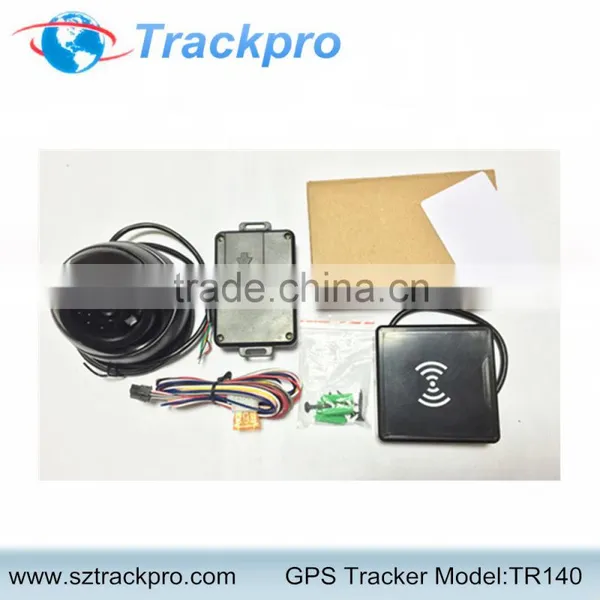

Mini GPS tracking 3G technology

TR140 has multiple input/output interfaces that can be used to monitor vehicle status or connect external device.

User can setup device working parameter by PC setup program base on personality application.

TR140 has RS485 bus, support fuel sensor, and other optional device with RS485 bus.

Specifications

Features

Camera GPS Tracking System

1) Report simple (very easy compatible with your software)

2) Parameter configuration (via sms or pc-setup setup it)

3) Support Tcp/udp communications

4) Built in memory, storage the data in no gsm signal place.

5) Built in backup battery, Lower battery alarm/power cut alarm

6) Prevent static excursion.

7) Intelligent Report.

8) ACK check enable or disable

9) SMS function

10) Fixed time/distance report

11) Geo-fence

12) SOS alarm

13) Sleeping mode

14) Over speed report

15) Fuel detection(Optional)

16) Camera tracking(Optional)

Physical Display

Interface

   White 4 PIN connector is PC SETUP cable.

   Black 8 PIN connector is Main harness.

Main harness Interface

upside

backside

 Applications

Best mounting places

a. TR140 device

b. Main harness (8PIN)

c. External GPS antenna (only connect while internal GPS antenna signal weak.

d. Camera(Optional)

e. Fuel sensor(Optional)

Locating on web-based gps tracking software

Android/IOS app also supported

Q: Why the tracker can't be switched on?

A: 1. Check if wiring is correct or not.

    2. Charge the tracker.

Q: No response to SMS command

A: 1. Wrong password. Please check your password.

    2. No GSM mobile signal or weak GSM network. Try later.

    3. Out of SIM credit. Please pop up.

    4. SIM is damaged. Change a sim card.

    5. SIM card is without sending function. Change a SIM or enable SMS sending function and caller identification function.

    6. SIM card isn't installed properly.

 Q: Is there a monthly charge for it to communicate with me. Does it require a cellulare service provider or something else?

A: Two communication ways: SMS ( just like one mobile phone to another) and GPRS ( monitor/manage the tracker on our tracking platform) . These two ways are both charged by your local telecom carrier, we don't charge for the SMS or GPRS fee.
