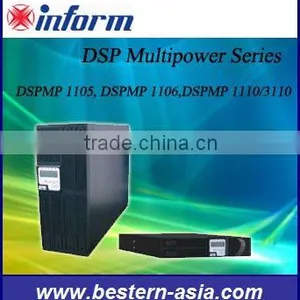

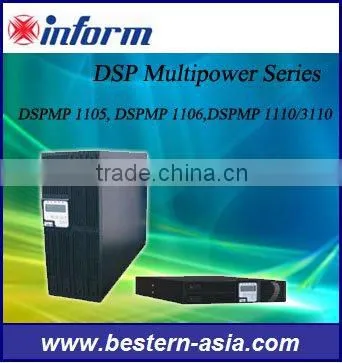

Help CenterInform DSPMP 1105 On Line UPS
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Turkey
Brand Name:
Inform
Model Number:
DSPMP 1105
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Turkey
Brand Name
Inform
Model Number
DSPMP 1105
Phase
Single Phase
Protection
Other, Overload, Overheat & Short Circuit Protections
Weight
25kgs
Output Voltage
220V / 230V (adjustable)
Type
On-line
Application
Other, Telecom, industrial control, monitor
Specifications
1. Authorized Distributor in CHINA2. Input Power Factor Correction PFC
3. Cold Start Function
4. Real DSP controller
|
DSP MULTIPOWER SERIES Uninterruptible Power Systems On-Line “ Double Conversion” Technology 1Phase in / 1Phase out - from 5kVA to 10kVA 3Phase in / 1Phase out - 10kVA |
| TYPE | DSPMP 1105 | DSPMP 1106 | DSPMP 1110 | DSPMP 3110 |
| Power(kVA) | 5 | 6 | 10 | 10 |
| INPUT | ||||
| Phase Configuration | 1Ph+N+PE | 3Ph+N+PE | ||
| Nominal Voltage | 220V/230V | 380V/400V | ||
| Minumum Voltage | 160V | 277V | ||
| Maximum Voltage | 280V | 485V | ||
| Frequency | 45-65 Hz | |||
| Power Factor | 0,99 | |||
| OUTPUT | ||||
| Power Factor | 0.8 | |||
| Phase Configuration | 1Ph+N+PE | |||
| Nominal Voltage | 220V / 230V (adjustable) | |||
| Nominal Current at 220V | 23A | 27A | 45,5A | |
| Wave Form | Pure Sine Wave | |||
| Total Harmonic Distortion at 100% linear load | <3% | |||
| At 100% Non-Linear Load | <5% | |||
| Frequency | 50Hz or 60Hz (adjustable) | |||
| Frequency Tolerance (free running) | ±0,2% | |||
| Frequency Regulation | ±1Hz; ±3Hz | |||
| Statik Voltage Regulation (0%-100% load) | <1% | |||
| Crest Factor | 3:1 | |||
| Transfer Time | 0sec | |||
| Overload (on mains at 110% load) | 2 min | |||
| Overload (on mains at 125% load) | 1 min | |||
| Overload (on mains at 150% load) | 30 sec | |||
| Total Efficiency | ≥ 92% | |||
| Greenmode Efficiency | ≥ 97% | |||
| Output Connection | Terminals | |||
| Outlets (Optional) | External Socket Box (2pcs SCHUKO, 4pcs IEC Outlets) | |||
| BATTERY | ||||
| Type | Maintenance-Free lead acid batteries | |||
| Recharge Time | 4-6h up to 90% | |||
| Voltage | 240VDC | |||
| Quantity per string | 20pcs | |||
| Cold start | Present | |||
| PHYSICAL SPECIFICATIONS (Tower Position) | ||||
| Net Weight (power module) | 25kg | 26kg | 28kg | |
| Net Weight (with internal batteries) | 55kg | |||
| Dimensions (mm) (HxWxD)-power module | 440x88x680 | 440x132x680 | ||
| Dimensions (mm) (HxWxD)-w/battery vers | 440x176x680 | |||
| STANDARDS | ||||
| Standards | EN62040-1-1 (safety); EN62040-2 (EMC); EN62040-3 (performance); EN60950-1 | |||
