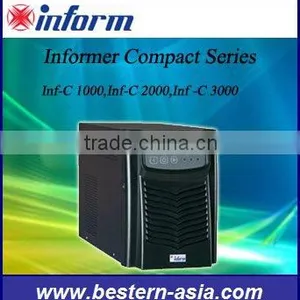

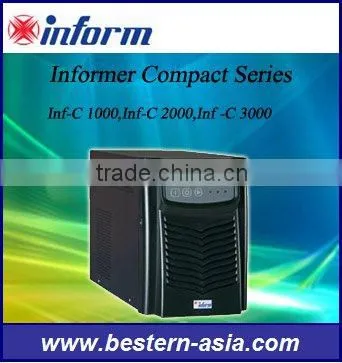

Inform Inf-C 1000 UPS

Name: Inform Inf-C 1000 UPS
Brand: Inform
SKU: 131442815

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Turkey

Brand Name:

Inform

Model Number:

Informer Compact 1000

Besternasia Electronics Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Turkey

Brand Name Inform

Model Number Informer Compact 1000

Phase Other, Line Interactive

Protection Other, Short circuit and overload protection,Lightning and surge protection

Weight 15.5kgs

Output Voltage 220 / 230 Vac ± 12 %

Type Line Interactive

Application Other, Industrial Control,Telecom and monitor

Specifications

1. Inform Authorized Distributor In CHINA
2. Automatic Voltage Regulation
3. Fault Alarms and State Warnings
4. Cold Start

INFORMER COMPACT SERIES

Uninterruptible Power Systems
Line Interactive Technology
( 1000-2000-3000 VA) Pure Sinewave Output UPS

Pure Sinewave Output for any critical load

User Friendly LCD Display

Boost and buck Automatic Voltage Regulation

Communication Port and Remote Monitoring Software

Overload and Short Circuit Protection

Advanced Battery Management

Discharge Protection

Fault Alarms and State Warnings

Cold Start Function

Compact size, light weight and low noise

MODEL	Informer Compact 1000	Informer Compact 2000	Informer Compact 3000
INPUT
Capacity (VA)	1000 VA	2000 VA	3000 VA
Voltage	220 V ± 25 %
Frequency	50 or 60 Hz ± 5 %
OUTPUT
Power Factor	0.6
Voltage (On mains)	220 / 230 Vac ± 12 %
Voltage (On battery)	220 / 230 Vac ± 5 %
Frequency (On battery)	50 or 60 Hz ± 0,5 %
Wave From	Sine Wave, THD < 3 %
Voltage Regulation	AVR automatically increase output voltage 15% above input voltage if -9% to -25% of nominal AVR decrease output voltage 15% below input voltage if +9% to +25% of nominal
Transfer Time	6 ms.
Overload	UPS automatically shuts down if overload exceeds 110% of nominal at 10min. (AC mode) and if overload exceeds 100% of nominal at 10 sec. (Battery mode)
Outlet	3 pcs IEC & 2pcs Schuko Outlets
BATTERY
Type	Maintenance-free lead acid batteries
Recharge Time (hour)	2 to 4 Hours 90%
Voltage	24Vdc	48Vdc
Quantity	2x12V 7Ah	4x12V 7Ah	4x12V 9Ah
Back Up Time	5-30 minutes (depending on computer load)
Protection	Automatic self-test & discharge protection, replace battery indicator

DISPLAY
LED	Utility Normal, Back up, UPS Fault and Battery Condition
LCD	Load Level, Battery Level, Bypass, AVR, Battery Low-Replace-Fault, UPS Fault, Overload
