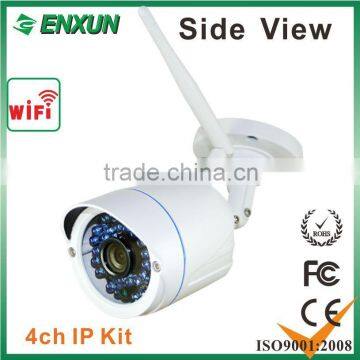

H.264 4CH NVR Kit 720P ONVIF P2P Wireless NVR IP Camera Kit
Key Features:
1. HD video output
2. Automatic connection with IP, save installation cost
3. Plug and play, P2P service
4. Mobile viewing, iphone&android app
5. Free DDNS :,no need DDNS setting
6. Wireless distance 100 meters If open area, it is only 20-30 meters if not
7. APP: Eseecloud
| Wireless NVR Specification | ||
| Model | ||
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| AUdio Bitrate | 64Kbps | |
| AV (audio/video) output | HDMI input | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
| VGA output | 1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
|
| AV CODEC Specification | Video Resolution | D1/720P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch (optional) |
| Alarm Output | 1ch (optional) | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc… |
|
| Network Control | ||
| Others | Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |

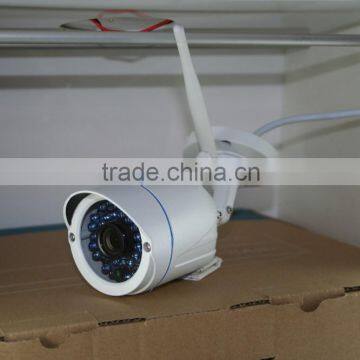

| IPC Specification | ||
| Technical Parameters | Model | |
| Sensor | 1/4” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 1280 x 720 16 : 9 High Defination | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 4mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification | Three Streaming at the Same Time: H.264 128x720@30fps or below H.264 640x480@30fps or below |
|
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Size | 205(L)×70(W)×55 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
| Customized | Accept OEM and ODM |
| Price | EXW price,the best and cheapest price. |
| Profession | 13 years experience in this camera&DVR&NVR production |
| Quality | Strict QC, High quality control. |
| Quantity | No MOQ can be accepted. |
| Delievery time | 1-2working days for sample order, 3-5days for Quantity more than 500pcs |
| Payment | Paypal,T/T,Western union,etc |
| Shippment | UPS,TNT,DHL,Chian post,EMS,FedEx ,etc. |
| Service | Professional salesman will provide you best sales service Our goal is to establish a long time relationship with you and your company. |
| Choose our factory, you will be the winner of your market! | |
2. Packing
1).if no special request,we will use normal packing,1 neutural box for each good.
2).if need special packing or box ,please list them in your E-mail.We would like to make the customer wanted packing.
3).We will use safety foam in the CTN to protect products,in order to avoid any damage in delivery.
1. Please confirm the model numbers and quantities that you would like to purchase.
2. We will send you a Proforma Invoice once we get your order. And if you need, we will help you calculate the best freight charge by courier or by air or by sea.
3. After you arrange the payment and send us your bank copy, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send the goods out, and let you know the tracking number.
Please feel free to contact me if you have any question.
We are professional manufacture in cctv camera like IP camera, AHD camera&Analogue camera; DVR include Analogue DVR&AHD DVR;NVR&kits .We are the best CCTV camera supplier in china with 10 years experience.

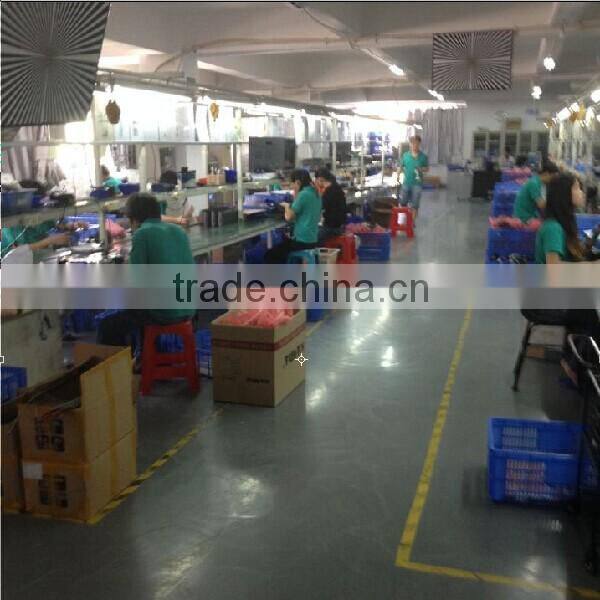

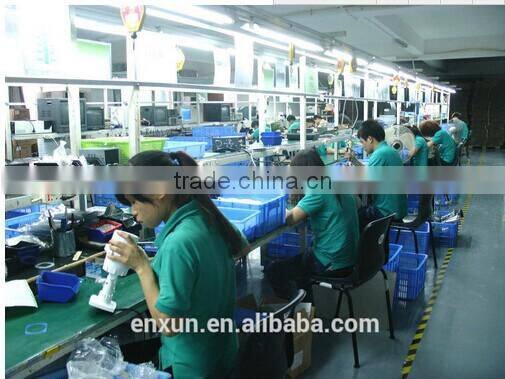

1.Factory:

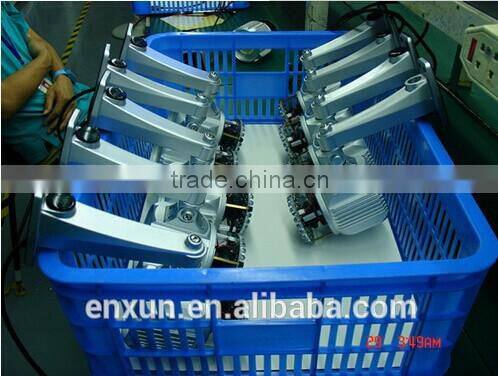

Camera Shell accembly:

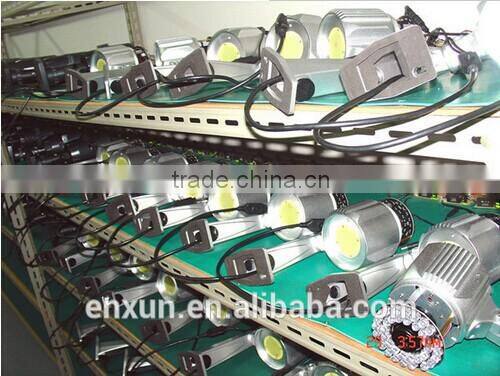

Camera Aging Time:

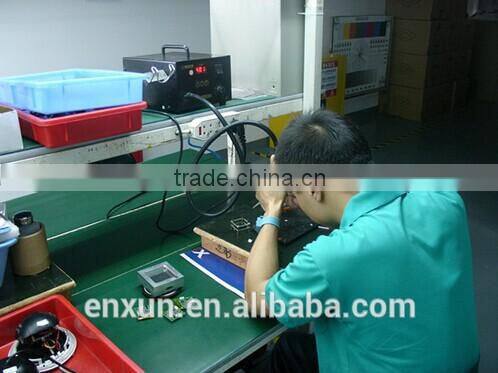

Testing lamp plate image:
Push camera bar
2.Exhibition in 2014:
We have attended 6pcs internation exhibition include
* Intersec Exhibition in Dubai,
* ISC West Show in USA;
* EXPO Seguridad Show in Mexico;
* SEXPOSEC Show in Brazil;
* IFSC Show in India
3.Certificate:
